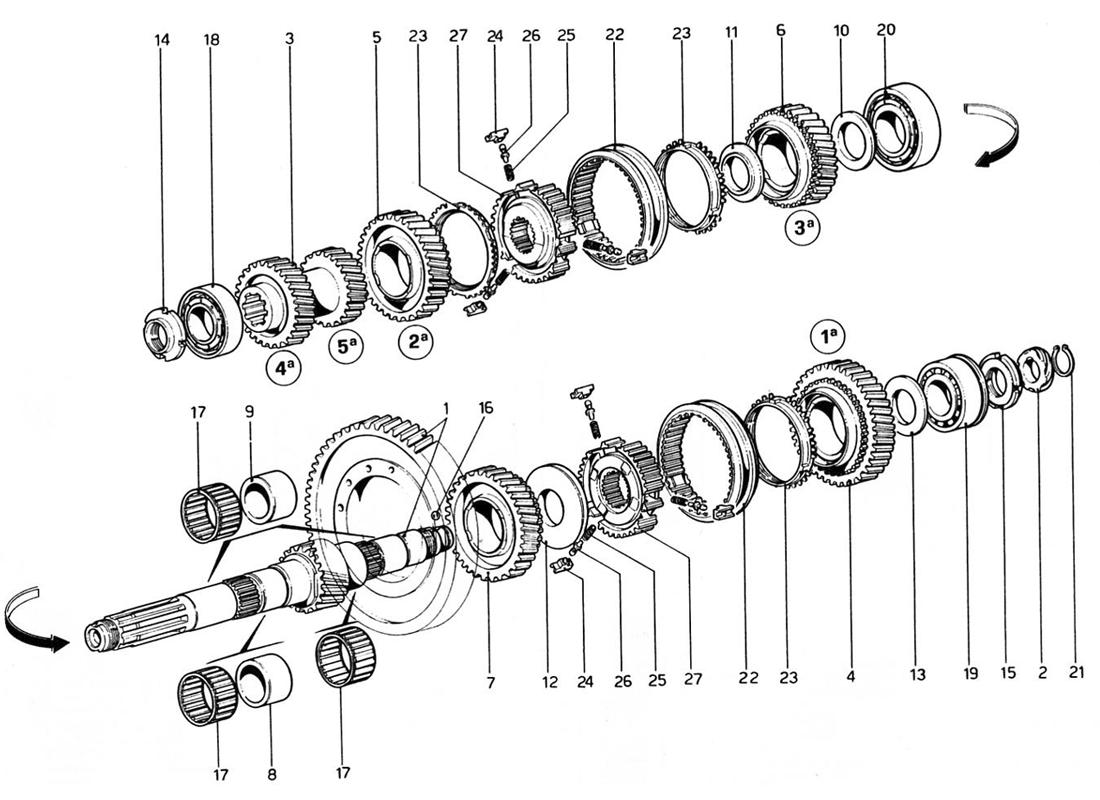

Ferrari / 308 GTB 1976 / 024 - Lay Shaft Gears
Go to order form
| Diagram # | Name | Part # | Price | Fitted Quantity |
Quantity Available |
Quantity | Select |
|---|---|---|---|---|---|---|---|
| 1 | Crown Wheel & Pinion | 108522 | POA | 1 | 0 |
|
|
| 2 | Speedo Drive | 107093 | POA | 1 | 0 |
|
|
| 3 | 4th & 5th Gear | 105532 | 1168.19 | 1 | 1 |
|
|
| 4 | Gear (Machined) Ground 1st | 104233 | POA | 1 | 0 |
|
|
| 5 | Gear 2nd | 104234 | POA | 1 | 0 |
|
|
| 6 | Gear 3rd | 104235 | POA | 1 | 0 |
|
|
| 7 | RM Gear Ground | 119720 | POA | 1 | 0 |
|
|
| 8 | Gearbox Bush | 104239 | 293.40 | 1 | 1 |
|
|
| 9 | Bush | 104240 | 239.28 | 2 | 3 |
|
|
| 10 | Spacer | 104245 | 78.61 | 1 | 2 |
|
|
| 11 | Spacer | 104246 | 87.50 | 1 | 3 |
|
|
| 12 | Spacer | 104247 | POA | 1 | 0 |
|
|
| 13 | Spacer | 104248 | 66.08 | 1 | 0 |
|
|
| 14 | Ring Nut | 104252 | 86.77 | 1 | 2 |
|
|
| 15 | Ring Nut | 104253 | 85.29 | 1 | 102 |
|
|
| 16 | Ball Bearing | 101611 | 0.65 | 1 | 118 |
|
|
| 17 | Caged Needle Bearing | 104254 | 46.57 | 4 | 2 |
|
|
| 18 | Roller Bearing | 108656 | 438.28 | 1 | 0 |
|
|
| 18 | Roller Bearing | 104257 | POA | 1 | 0 |
|
|
| 19 | Bearing | 103042 | 259.55 | 1 | 4 |
|
|
| 20 | Roller Bearing | 108657 | 650.30 | 1 | 0 |
|
|
| 20 | Roller Bearing | 104258 | POA | 1 | 0 |
|
|
| 21 | Circlip | 11067375 | POA | 1 | 0 |
|
|
| 22 | Synchro Sleeve | 106038 | 1162.94 | 2 | 1 |
|
|
| 23 | Ring | 106040 | 1829.34 | 3 | 5 |
|
|
| 24 | Selector Block | 106042 | 174.77 | 6 | 5 |
|
|
| 25 | Synchro Sleeve | 106043 | 11.87 | 6 | 8 |
|
|
| 26 | Synchro Lock Pin | 106044 | POA | 6 | 0 |
|
|
| 27 | Synchro Sleeve | 106050 | 452.44 | 2 | 3 |
|
