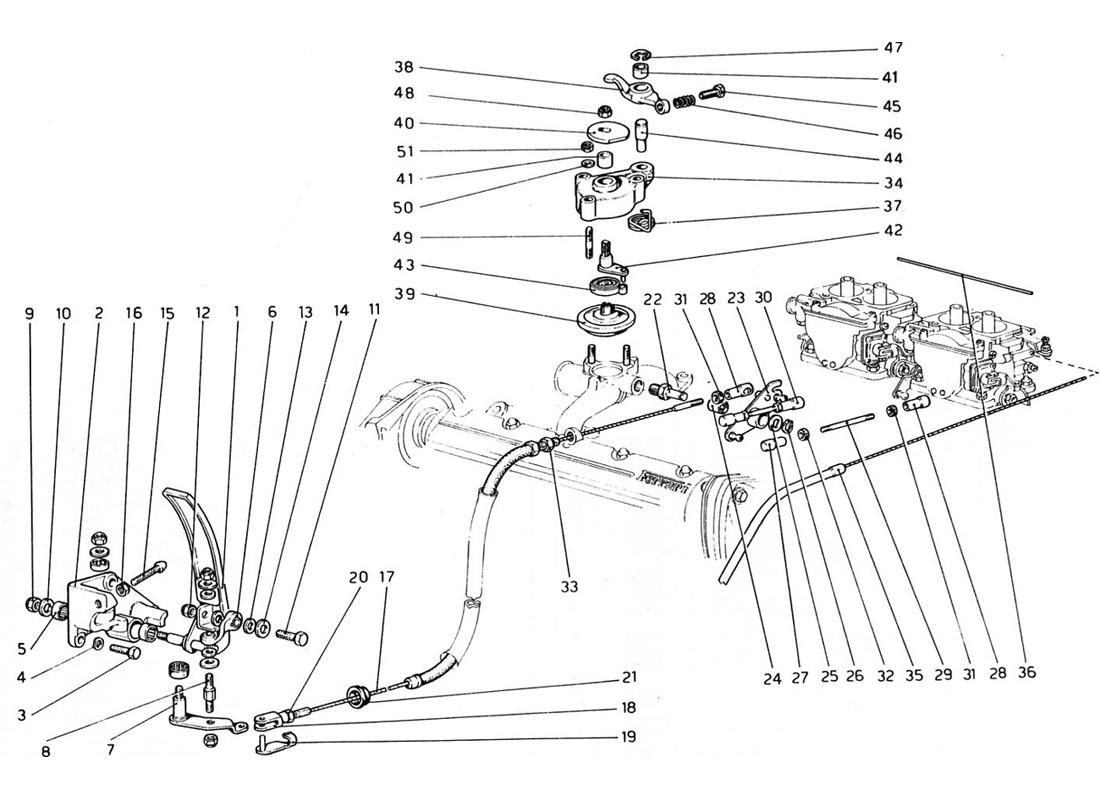

Ferrari / 308 GTB 1976 / 012 - Throttle Control

Go to order form
Diagram # Name Part # Fitted
Quantity
Quantity Select
1 Accelerator Pedal 103329 1
2 Support Accelerator Pedal 106587 1
3 Bolt 16135721 3
4 Washer 12601371 3
5 Roller Bearing 101677 4
6 Pedal Link 105237 1
7 Lever with Thread 105235 1
8 Stud Bolt 105679 1
9 Nut 16104411 3
10 Washer 102683 2
11 Bolt 10902621 1
12 Nut 12574211 2
13 Washer 10519401 4
14 Washer 12643701 3
15 Control 105232 1
16 Nut 16102311 1
17 Stainless Stell Inner Acc Cable LHD 106492 1
18 Right Hand Threaded Fork 100655 1
19 Linkage Clip 100656 1
20 Locknut 10725911 1
21 Slide 105369 1
22 Pin 103907 1
23 Throttle Lever 107790 1
24 Bush 103921 1
25 Washer 10730501 1
26 Ring 11065975 1
27 Left Hand Thread Ball Joint 105619 2
28 Right Hand Thread Spheric Joint 105617 3
29 Stud 103904 2
30 Rear Bare Cylinder Head 103905 1
30 Front Bare Cylinder Head 103906 1
31 Locknut 15896411 3
32 Left Head Threaded Nut 105586 2
33 Nut 16100811 1
34 Casing 107677 1
35 Cavo innasto starter - 1
36 Cable 108276 2
37 Throttle Spring 107722 1
38 Rocker Arm 107753 1
39 Valve 107817 1
40 Cam 108908 1
41 Spacer 100958 1
42 Pin 100581 1
43 Spring 107821 1
44 Pin 107822 1
45 Screw 107823 1
46 Spring 107824 1
47 Circlip 11087975 1
48 Nut 12575411 1
49 Threaded Stud 11501021 3
50 Washer 11197771 3
51 Nut 10720121 3
