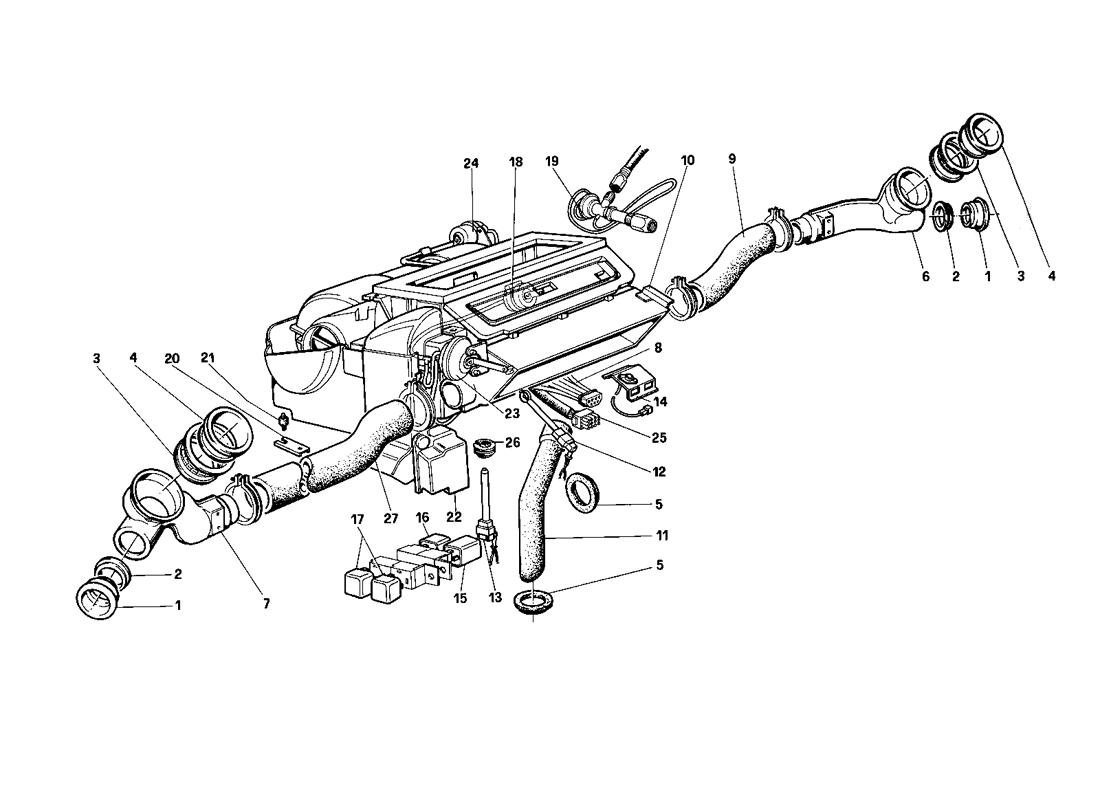

Ferrari / Testarossa (1990) / 127 - Heater Unit
Go to order form
| Diagram # | Name | Part # | Price | Fitted Quantity |
Quantity Available |
Quantity | Select |
|---|---|---|---|---|---|---|---|
| 1 | Air duct gasket | 61528300 | POA | 2 | 0 |
|
|
| 2 | Frame for gasket | 61503600 | POA | 2 | 0 |
|
|
| 3 | Air vent frame ring | 61528500 | POA | 2 | 0 |
|
|
| 4 | Air vent | 61528600 | POA | 2 | 0 |
|
|
| 5 | Gasket for water outlet pipe | 61528700 | POA | 2 | 0 |
|
|
| 6 | R.H. air duct For LHD | 61528800 | POA | 1 | 0 |
|
|
| 6 | R.H. air duct For RHD | 61535500 | POA | 1 | 0 |
|
|
| 7 | L.H. air ductFor RHD | 61535600 | POA | 1 | 0 |
|
|
| 7 | L.H. air duct For LHD | 61528900 | POA | 1 | 0 |
|
|
| 8 | Connection for vacuum pipe | 61539700 | POA | 1 | 0 |
|
|
| 9 | R.H. union from heater air vent | 61559100 | POA | 1 | 0 |
|
|
| 10 | Air conditioner for LHD - Starting from car No 73497 | 134131 | POA | 1 | 0 |
|
|
| 10 | Air conditioner For RHD - Starting from car No 73497 | 134143 | POA | 1 | 0 |
|
|
| 10 | Air conditioner For LHD - Until car no 73495 | 60955900 | POA | 1 | 0 |
|
|
| 10 | Air conditioner For RHD - Until car no 73495 | 61716800 | POA | 1 | 0 |
|
|
| 11 | Condensate drain pipe | 61529300 | POA | 1 | 0 |
|
|
| 12 | Air temperature sensor | 61079600 | POA | 1 | 0 |
|
|
| 13 | Cooler temperature sensor | 62341000 | POA | 1 | 0 |
|
|
| 14 | Power transistor | 127014 | POA | 1 | 0 |
|
|
| 15 | Timer | 123509 | POA | 1 | 0 |
|
|
| 16 | Control relay | 62478900 | POA | 1 | 0 |
|
|
| 17 | Control switch relay | 40130007 | POA | 1 | 0 |
|
|
| 18 | Interior actuator | 61268000 | POA | 1 | 0 |
|
|
| 19 | Expansion valve | 61742600 | POA | 1 | 0 |
|
|
| 20 | Air conditioner assembly lower bracket | 60726800 | POA | 2 | 0 |
|
|
| 21 | Anti-shaker support | 102947 | POA | 2 | 0 |
|
|
| 22 | L.H. air duct with actuator For RHD | 125448 | POA | 1 | 0 |
|
|
| 22 | R.H. air duct with actuator For LHD | 124037 | POA | 1 | 0 |
|
|
| 22 | R.H. air duct with actuator For RHD | 125447 | POA | 1 | 0 |
|
|
| 22 | L.H. air duct with actuator For LHD | 124038 | POA | 1 | 0 |
|
|
| 23 | Actuator for defroster cover | 60930700 | POA | 1 | 0 |
|
|
| 24 | Actuator | 60930500 | POA | 1 | 0 |
|
|
| 25 | Cable for air conditioner assembly | 124036 | POA | 1 | 0 |
|
|
| 26 | Gasket | 61086200 | POA | 1 | 0 |
|
|
| 27 | L.H. union from heater air vent | 61559200 | POA | 1 | 0 |
|
