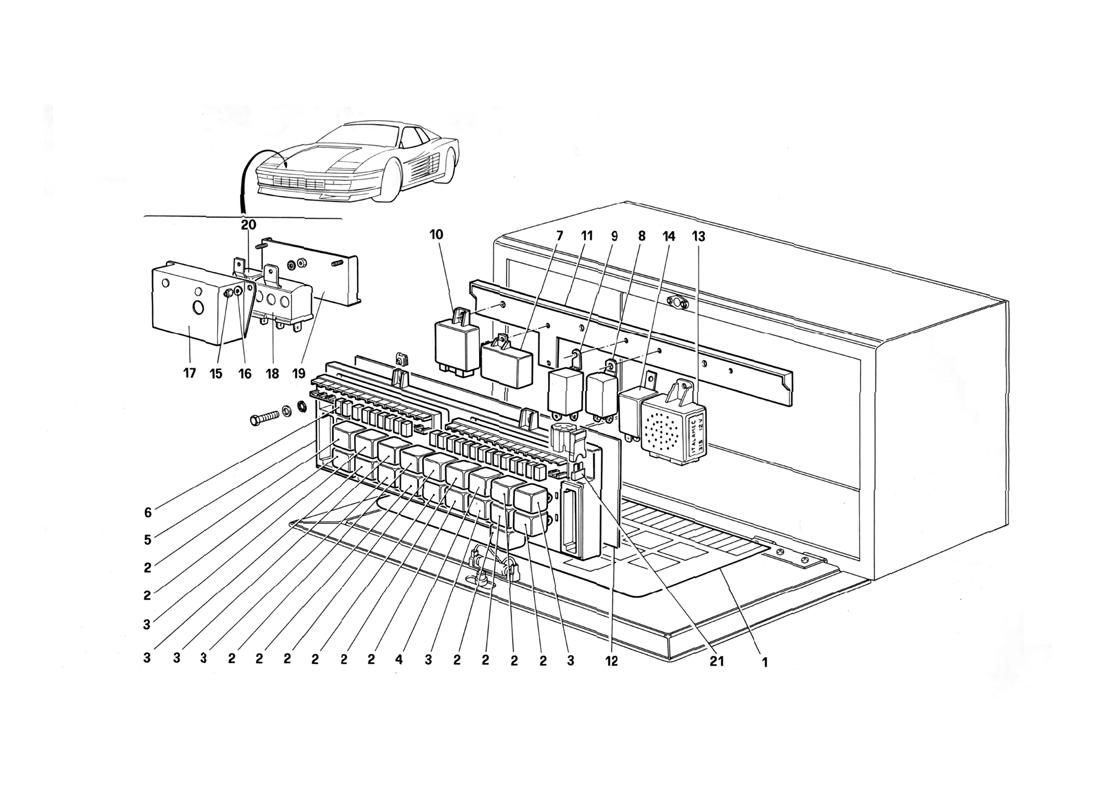

Ferrari / Testarossa (1990) / 125 - Valves and Relays
Go to order form
| Diagram # | Name | Part # | Price | Fitted Quantity |
Quantity Available |
Quantity | Select |
|---|---|---|---|---|---|---|---|
| 1 | Indication sheetFor control unit No. 129108 | 129575 | POA | 1 | 0 |
|
|
| 1 | Indication sheetFor control unit No. 132204 | 133764 | POA | 1 | 0 |
|
|
| 2 | Relay | 40130007 | POA | 12 | 0 |
|
|
| 3 | Relay | 40130106 | POA | 6 | 0 |
|
|
| 4 | Relay | 40283905 | POA | 1 | 0 |
|
|
| 5 | Control unit, assy.Only for GB - for car with Dim-Dip device | 132204 | POA | 1 | 0 |
|
|
| 5 | Control unit, assy. | 129108 | POA | 1 | 0 |
|
|
| 6 | 15AFuse | 125242 | POA | 11 | 0 |
|
|
| 6 | 20A Fuse | 125243 | POA | 6 | 0 |
|
|
| 6 | Bridge For control unit No. 132204 | 115549 | POA | 1 | 0 |
|
|
| 6 | IOA Fuse | 125241 | POA | 3 | 0 |
|
|
| 6 | 7,5A Fuse | 125240 | POA | 4 | 0 |
|
|
| 7 | A.C. control unit | 61079400 | POA | 1 | 0 |
|
|
| 8 | Tachometric relay | 124717 | POA | 1 | 0 |
|
|
| 9 | Intermittence for direction and hazardFor J - CH - Not for US | 61048000 | POA | 1 | 0 |
|
|
| 9 | Intermittence for direction and hazardFor US version | 61651800 | POA | 1 | 0 |
|
|
| 10 | Wiper intermittence | 119660 | POA | 1 | 0 |
|
|
| 11 | Control unit fixing plate | 124092 | POA | 1 | 0 |
|
|
| 12 | Rear cover | 116055 | POA | 1 | 0 |
|
|
| 13 | Seat belts control unit for USUntil car No 76572 | 133198 | POA | 1 | 0 |
|
|
| 13 | Seal belts control unitFor SA - CDN | 61830700 | POA | 1 | 0 |
|
|
| 13 | Seat belts control unit for USUntil car No 76573 | 136133 | POA | 1 | 0 |
|
|
| 14 | Dim-Dip, device, assy.For GB until car .......... | 62346400 | POA | 1 | 0 |
|
|
| 14 | Buzzer for lower oil pressure and exhaust hight temperatureFor US - CH | 131486 | POA | 1 | 0 |
|
|
| 14 | Brake warning light control relayNot for US - SA - J | 61914500 | POA | 1 | 0 |
|
|
| 15 | NutFor GB car with Dim-Dip device | 12574111 | POA | 1 | 0 |
|
|
| 16 | Washer | 10519301 | 2.25 | 1 | 0 |
|
|
| 17 | Protection cover | 62342800 | POA | 1 | 0 |
|
|
| 18 | Resistor | 62342006 | POA | 1 | 0 |
|
|
| 19 | Support | 132128 | POA | 1 | 0 |
|
|
| 20 | Relay | 62342100 | POA | 1 | 0 |
|
|
| 21 | 3A fuse for battery-alternator cable protection | 131942 | POA | 1 | 0 |
|
