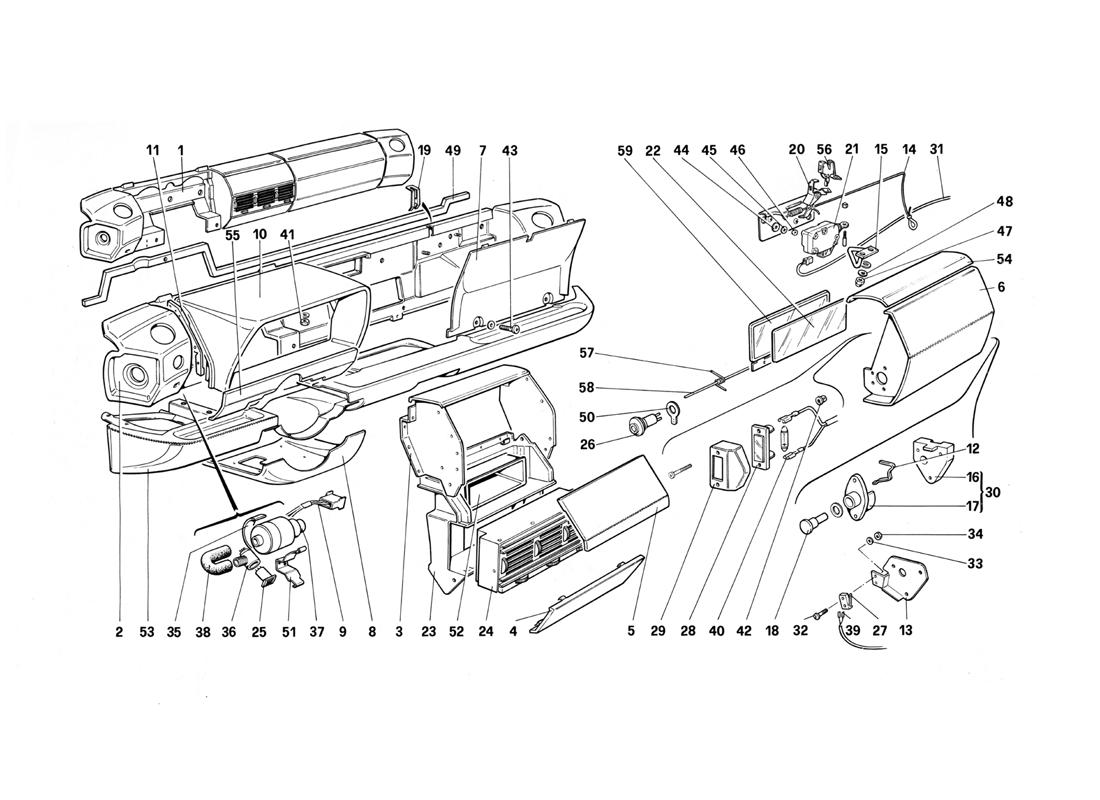

Ferrari / Testarossa (1990) / 117 - Dashboard - For US Version

Go to order form
Diagram # Name Part # Fitted
Quantity
Quantity Select
1 Dash board assembly With instruments seat 61553666 1
1 Dash board assembly Without instruments seat 61553700 1
2 Dash board frame 61553866 1
3 Dash board central section 61520866 1
4 Dash board central panel 61553968 1
5 Dash board central cover 61521166 1
6 Dash board box 61554166 1
7 Dash board box panel 61554200 1
8 Steering column coverFrom car No 82830 61578466 1
8 Steering column coverUntil car No 82829 61554966 1
9 Sensor cable for internal temperature 119436 1
11 Right angle piece 61521866 1
11 Left angle piece 61521966 1
12 Clip 61522660 2
13 Bracket 61554500 1
14 Safety cable 61554466 1
15 Lock striker 61554666 1
16 Housing instruments 61558966 1
16 Right fixed hinge 61522466 1
16 Left fixed hinge 61522500 1
17 Right mobile hinge 61522600 1
17 Left mobile hinge 61522766 1
18 Pin 61522866 2
19 Frame 61554760 1
21 Lock magnet 61523100 1
22 Courtesy mirror 61523200 1
23 Frame work 61523360 1
24 Central air outlet 61523566 1
25 Sensor for internal temperature 61879168 1
26 Socket 61523600 1
26 Lock bracket 61545800 1
27 Switch 61523766 1
28 Dash board box lamp 61647260 2
29 Dash board box lamp frame 61523866 2
31 Socket cables 124410 1
32 Screw 61524180 2
33 Washer 61524200 2
34 Nut 61524300 2
35 Sensor ring 120065 1
36 Box sensor 61679266 1
37 Suction fan for sensor 61679366 1
38 Right dashboard box hinge 61523966 1
38 Left dashboard box hinge 61524000 1
38 Tube from suction fan to sensor 124839 1
39 Switch cables 124469 1
40 Lamp cables 124411 1
41 Nut 14684111 4
42 Female screw 12611342 4
43 Screw 15688361 2
44 Washer 12643701 2
45 Washer 10519401 2
46 Nut 15896211 2
47 Nut 14651811 2
48 Washer 16519201 4
49 Dashboard support structure 61554300 1
51 Bracket 61689566 1
52 Radio box 61541666 1
53 Knee protection From car No 82838 61578366 1
53 Knee protectionUntil car No 82829 61554860 1
54 Box cover 61554860 1
55 Lower cover 61561960 1
56 Glove box lock 61545666 1
57 Clip 61577500 1
58 Negative terminal 66761466 1
58 Pin 61577686 1
59 Mirror, complete 61577466 1
