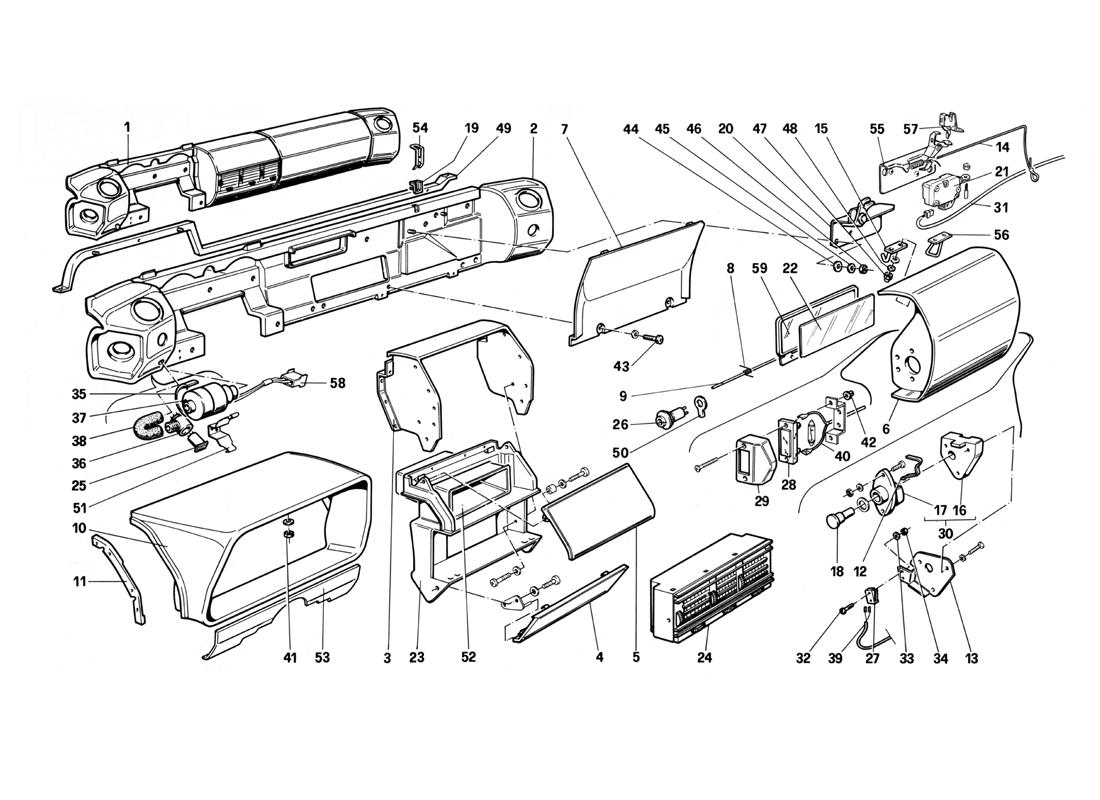

Ferrari / Testarossa (1990) / 116 - Dashboard - Not for US Version
Go to order form
| Diagram # | Name | Part # | Price | Fitted Quantity |
Quantity Available |
Quantity | Select |
|---|---|---|---|---|---|---|---|
| 1 | LHD dash board assemblv For LHD - With instruments seat | 61562100 | POA | 1 | 0 |
|
|
| 1 | RHD dash board assembly For AUS - Without instruments seat | 61562600 | POA | 1 | 0 |
|
|
| 1 | LHD dash board assembly Without instruments seat | 61562400 | POA | 1 | 0 |
|
|
| 1 | RHD dash board assemblyWithout instruments seat | 61562500 | POA | 1 | 0 |
|
|
| 1 | RHD dash board assembly For RHD - With instruments seat | 61562200 | POA | 1 | 0 |
|
|
| 1 | RHD dash board assemblyFor AUS - With instruments seat | 61562300 | POA | 1 | 0 |
|
|
| 2 | Dash board For RHD | 61562800 | POA | 1 | 0 |
|
|
| 2 | Dash board For LHD | 61562700 | POA | 1 | 0 |
|
|
| 3 | Dash board central section For LHD | 61520800 | POA | 1 | 0 |
|
|
| 3 | Dash board central section For RHD | 61520900 | POA | 1 | 0 |
|
|
| 4 | Dash board central panel | 61545200 | POA | 1 | 0 |
|
|
| 5 | Dash board central cover | 61521100 | POA | 1 | 0 |
|
|
| 6 | Dash board box For LHD | 61521200 | POA | 1 | 0 |
|
|
| 7 | Dash board box panel | 61521400 | POA | 1 | 0 |
|
|
| 8 | Clip | 61577500 | POA | 1 | 0 |
|
|
| 9 | Pin | 61577600 | POA | 1 | 0 |
|
|
| 10 | Housing instruments For LHD | 61558900 | POA | 1 | 0 |
|
|
| 10 | Housing instruments For RHD | 61559000 | POA | 1 | 0 |
|
|
| 11 | Right angle piece | 61521800 | POA | 1 | 0 |
|
|
| 11 | Left angle piece | 61521900 | POA | 1 | 0 |
|
|
| 12 | Clip | 61522000 | POA | 2 | 0 |
|
|
| 13 | Bracket For RHD | 61534600 | POA | 1 | 0 |
|
|
| 13 | Bracket For LHD | 61554500 | POA | 1 | 0 |
|
|
| 14 | Safety cable | 61554400 | POA | 1 | 0 |
|
|
| 15 | Lock striker | 61554600 | POA | 1 | 0 |
|
|
| 16 | Right fixed hinge | 61522400 | POA | 1 | 0 |
|
|
| 16 | Left fixed hinge | 61522500 | POA | 1 | 0 |
|
|
| 17 | Right mobile hinge | 61522600 | POA | 1 | 0 |
|
|
| 17 | Left mobile hinge | 61522700 | POA | 1 | 0 |
|
|
| 18 | Pin | 61522800 | POA | 2 | 0 |
|
|
| 19 | Frame | 61554700 | POA | 1 | 0 |
|
|
| 20 | Lock bracket | 61554800 | POA | 1 | 0 |
|
|
| 21 | Lock magnet | 61523100 | POA | 1 | 0 |
|
|
| 22 | Courtesy mirror | 61523200 | POA | 1 | 0 |
|
|
| 23 | Frame work For LHD | 61523300 | POA | 1 | 0 |
|
|
| 23 | Frame work For RHD | 61523400 | POA | 1 | 0 |
|
|
| 24 | Central air outler | 61523500 | POA | 1 | 0 |
|
|
| 25 | Sensor for internal temperature | 61079100 | POA | 1 | 0 |
|
|
| 26 | Socket | 61523600 | POA | 1 | 0 |
|
|
| 27 | Switch | 61523700 | POA | 1 | 0 |
|
|
| 28 | Dash board box lamp | 61647200 | POA | 2 | 0 |
|
|
| 29 | Dash board box lamp frame | 61523800 | POA | 2 | 0 |
|
|
| 30 | Right dashboard box hinge | 61523900 | POA | 1 | 0 |
|
|
| 30 | Left dashboard box hinge | 61524000 | POA | 1 | 0 |
|
|
| 31 | Socket cables | 124410 | POA | 1 | 0 |
|
|
| 32 | Screw | 61524100 | POA | 2 | 0 |
|
|
| 33 | Washer | 61524200 | POA | 2 | 0 |
|
|
| 34 | Nut | 61524300 | POA | 2 | 0 |
|
|
| 35 | Sensor ring | 120065 | POA | 1 | 0 |
|
|
| 36 | Box sensor | 61079200 | POA | 1 | 0 |
|
|
| 37 | Suction fan for sensor | 61079300 | POA | 1 | 0 |
|
|
| 38 | Tube from suction fan to sensor | 124039 | POA | 1 | 0 |
|
|
| 39 | Switch cable | 124409 | POA | 1 | 0 |
|
|
| 40 | Lamp cables | 124411 | POA | 1 | 0 |
|
|
| 41 | Nut | 14084111 | POA | 4 | 0 |
|
|
| 42 | Female screw | 12611342 | POA | 4 | 0 |
|
|
| 43 | Screw | 15688301 | POA | 2 | 0 |
|
|
| 44 | Washer | 12643701 | POA | 2 | 0 |
|
|
| 45 | Washer | 10519401 | POA | 2 | 0 |
|
|
| 46 | Nut | 15896211 | POA | 2 | 0 |
|
|
| 47 | Nut | 14051611 | POA | 2 | 0 |
|
|
| 48 | Washer | 10519281 | POA | 2 | 0 |
|
|
| 49 | Dashboard support structure For RHD (except for Australia) | 61524600 | POA | 1 | 0 |
|
|
| 49 | Dashboard support structure For LHD | 61524500 | POA | 1 | 0 |
|
|
| 49 | Dashboard support structure Only for RHD Australia | 61524700 | POA | 1 | 0 |
|
|
| 50 | Negative terminal | 60701400 | POA | 1 | 0 |
|
|
| 51 | Bracket | 61089500 | POA | 1 | 0 |
|
|
| 52 | Radio seat | 61541600 | POA | 1 | 0 |
|
|
| 53 | Lower cover For RHD | 61562000 | POA | 1 | 0 |
|
|
| 53 | Lower cover For LHD | 61561900 | POA | 1 | 0 |
|
|
| 54 | Frame For bracket no. 55 | 61545900 | POA | 1 | 0 |
|
|
| 55 | Lock bracketFor RHD | 61545700 | POA | 1 | 0 |
|
|
| 55 | Lock bracket For LHD | 61545800 | POA | 1 | 0 |
|
|
| 56 | Lock strikerFor bracket no. 55 | 61545500 | POA | 1 | 0 |
|
|
| 57 | Glove box lock | 61545600 | POA | 1 | 0 |
|
|
| 58 | Sensor cable | 119430 | POA | 1 | 0 |
|
|
| 59 | Mirror, complete | 61577400 | POA | 1 | 0 |
|
