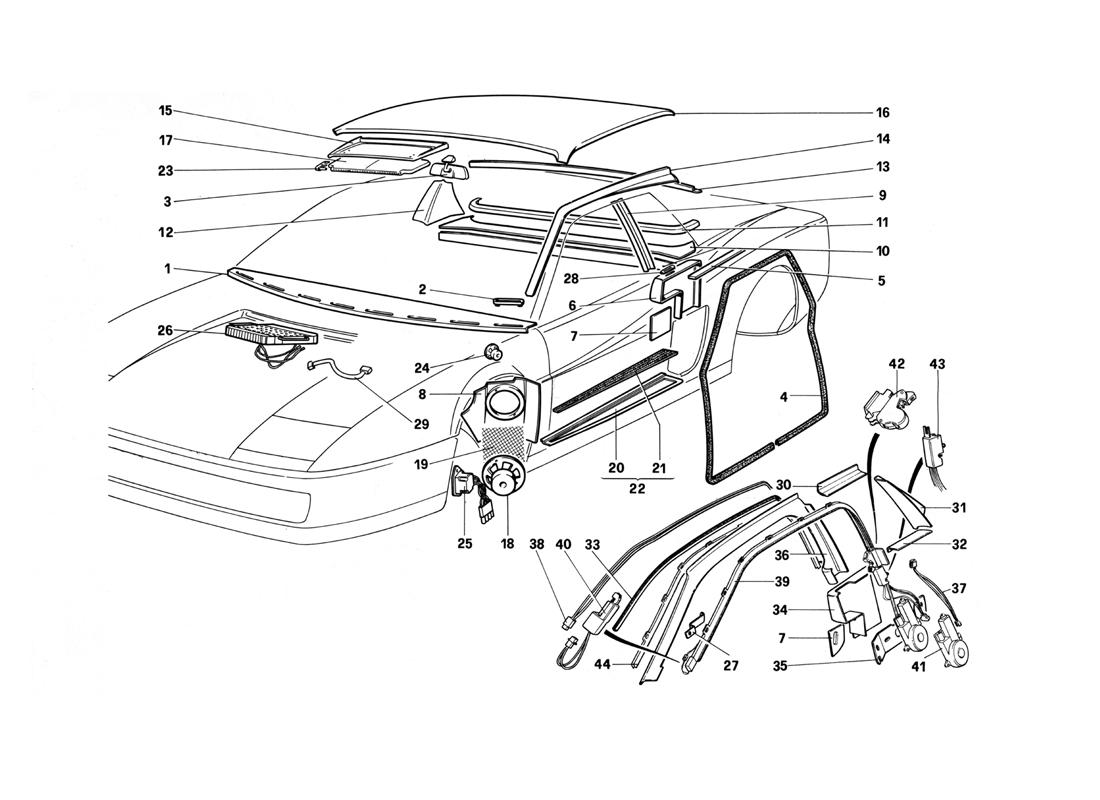

Ferrari / Testarossa (1990) / 114 - Accessories and Trims

Go to order form
Diagram # Name Part # Fitted
Quantity
Quantity Select
1 Windshield lower trim 61512100 1
2 Air outlet 61512200 7
3 Inner rear view mirror 61548200 1
4 Door gasket 61528200 2
5 Left side trimNot for US 61512500 1
5 Right side trimNot for US 61512400 1
6 Right side rear panel Not for US 61512600 1
6 Left side rear panel Not for US 61512700 1
7 Left side panel For US 61558700 1
7 Right side panel For US 61558600 1
7 Right side panel Not for US 61512800 1
7 Left side panel Not for US 61512900 1
8 R.H. side front panel For US 61550600 1
8 Right side front panel RHD 61534300 1
8 Right side front panel LHD Not for US 61513000 1
8 Left side front panel RHD 61534200 1
8 L.H. side front panel For US 61550700 1
8 Left side front panel LHD Not for US 61513100 1
9 Trim for left central fender For US 61556600 1
9 Trim for right central fender Not for US 61513200 1
9 Trim for left central fender Not for US 61513300 1
9 Trim for right central fender For US 61556500 1
10 Rear window plane 61513400 1
11 Rear window lower trim 61513500 1
12 Trim for rear right fender Not for US 61513600 1
12 Trim for rear left fender Not for US 61513700 1
13 Rear window upper trim For US 61556700 1
13 Rear window upper trim Not for US 61513800 1
14 Trim for roof right side Not for US 61513900 1
14 Trim for roof left side Not for US 61514000 1
15 Right windshield upper trim 61514300 1
15 Left windshield upper trim 61514400 1
16 Inner roof 61514500 1
17 Left sun visor 61514700 1
17 Right sun visor 61514600 1
18 Loudspeaker Until exhaustion 61643800 2
18 Loudspeaker From car No 85012 146217 2
18 Loudspeaker After exhaustion PN 61643800 - Until car No 85011 62433000 2
19 Loudspeaker grill 61514800 2
20 Frame for right underdoor moulding 61514900 1
20 Frame for left underdoor moulding 61515000 1
21 Rubber insert for right underdoor moulc 61515100 1
21 Rubber insert for left underdoor mouldmg 61515200 1
22 Right underdoor moulding, complete 61515300 1
22 Left underdoor moulding, complete 61515400 1
23 Left sun visor support 61515600 2
23 Right sun visor support 61515500 2
24 Tweeter After exhaustion PN 61643900 - Until car No 85011 62462700 2
24 Tweeter Until exhaustion 61643900 2
24 Tweeter From car No 85012 146216 2
25 Loudspeaker filter Until car No 850111 61644000 2
26 Amplifer Not for US - SA - J - CH 62515600 2
26 Amplifer For SA - CH 62368000 2
27 Clip for L.H. moulding For US 61571200 3
27 Clip for R.H. moulding For US 61571100 3
28 Seat belts frame 61547200 2
29 Radio - amplifer cable 62368100 1
30 L.H. moulding For US 61556400 1
30 R.H. mouldingFor US 61556300 1
31 L.H. moulding For US 61551700 1
31 R.H. moulding For US 61551600 1
32 L.H. moulding For US 61551100 1
32 R.H. moulding For US 61551000 1
33 Upper gasket For US 61561100 2
33 Lower gasket For US 61561200 2
34 L.H. moulding For US 61550900 1
34 R.H. moulding For US 61550800 1
35 L.H. bracket For US 61557100 1
35 R.H. bracket For US 61557000 1
36 R.H. bracketFor US 61551400 1
36 L.H. bracket For US 61551500 1
37 Cables for motor For US 61562900 2
38 Passive belts, assy. 61569000 1
38 Cables for guide For US 61563000 2
39 R.H. passive belt, complete 61560300 1
39 L.H. passive belt, complete 61560400 1
40 A station For US 61560500 2
41 L.H. drive motorFor US 61555200 1
41 R.H. drive motorFor US 61555100 1
42 Slider For US 61561300 2
43 B station For US 61560700 2
44 L.H. guide for passive belt For US 61561000 1
44 R.H. guide for passive belt For US 61560900 1
