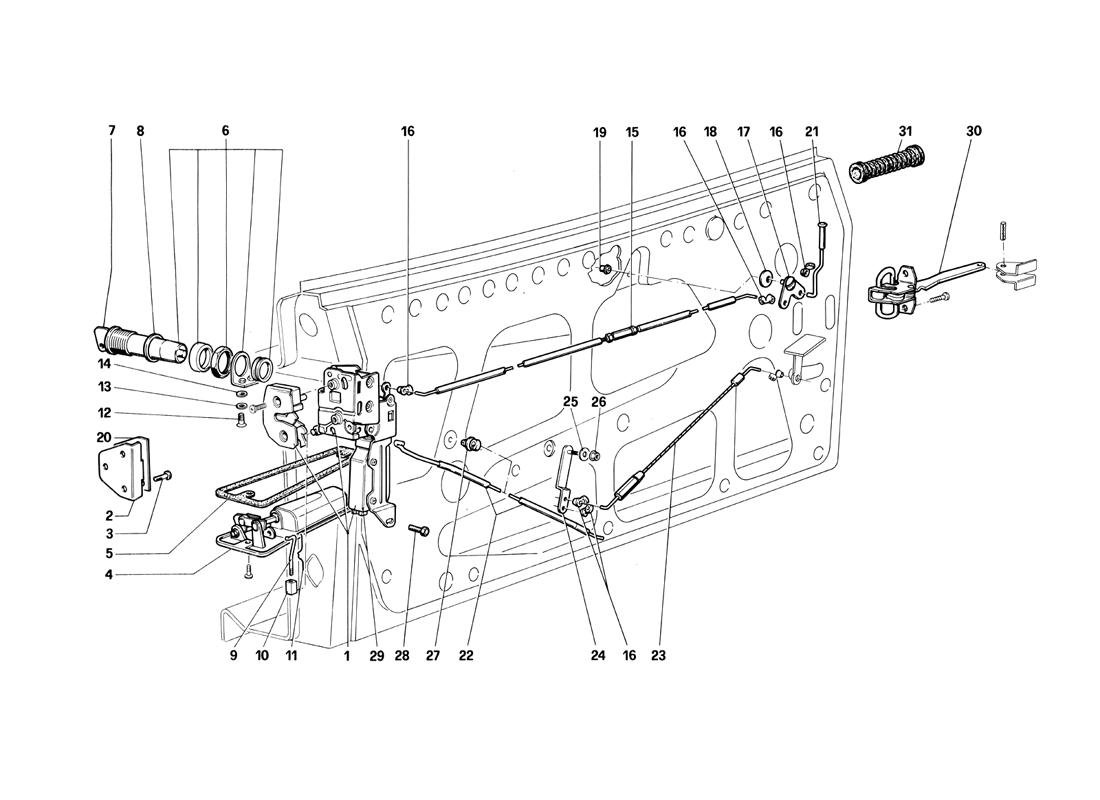

Ferrari / Testarossa (1990) / 111 - Door - Locking Device

Go to order form
Diagram # Name Part # Fitted
Quantity
Quantity Select
1 Lock for right door LHD (complete) 61506100 1
1 Lock for left door LHD (complete) 61506200 1
1 Lock for left door RHD (complete) 61506400 1
1 Lock for right door RHD (complete) 61506300 1
2 Lock striker 61506500 2
3 Serew 13303511 4
4 Outer handle for left door 61506700 1
4 Outer handle for right door 61506600 1
5 Gasket for left handle 61506900 1
5 Gasket for right handle 61506800 1
6 Lock with key With set of lock 61507000 2
6 Set of lock Not for US - SA -J - After exhaustion use PN 61545300 61508600 1
6 Set of lock For US - SA - J - After exhaustion use PN 61545400 61533000 1
7 Key 95401152 2
8 Lock gasket 61507200 2
9 Rod 61507300 2
10 Sleeve 61507400 2
11 Clip 61507500 2
12 Screw 13271811 2
13 Washer 10519201 1
14 Washer 10615271 4
15 Rod 61507600 2
16 Clip 10578183 10
17 Lever 61507700 2
18 Washer 12541870 2
19 Bush 15627611 2
20 Striker protection 61507800 2
21 Security rod for door 61537300 2
22 Rod 61507900 2
23 Rod 61508000 2
24 Washer 61508100 2
25 Washer 12643701 2
26 Nut 14084211 2
27 Clip 14569580 2
28 Screw 10977821 2
29 Locking device for passenger side 61508200 2
30 Stop tie-rod for door 61508500 2
31 Belows for electric cables 61508400 2
