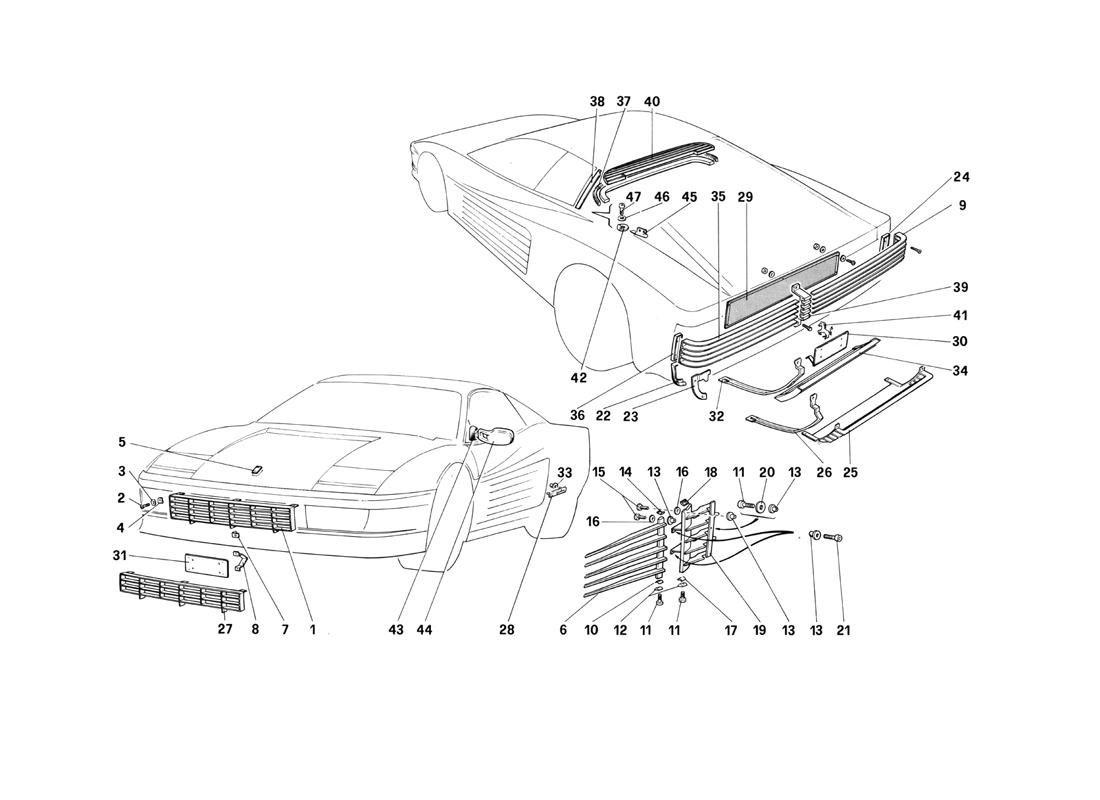

Ferrari / Testarossa (1990) / 105 - External Finishing
Go to order form
| Diagram # | Name | Part # | Price | Fitted Quantity |
Quantity Available |
Quantity | Select |
|---|---|---|---|---|---|---|---|
| 1 | Front grill Not for CDN | 61488200 | POA | 1 | 0 |
|
|
| 2 | Screw | 15644101 | POA | 3 | 0 |
|
|
| 3 | Washer | 10519301 | 2.25 | 3 | 0 |
|
|
| 4 | Fixing spring | 14189476 | POA | 3 | 0 |
|
|
| 5 | Front ornament | 60795400 | POA | 1 | 0 |
|
|
| 6 | Left door grill Until car No 80973 | 61488400 | POA | 1 | 0 |
|
|
| 6 | Right door grill From car No 80974 | 61575300 | POA | 1 | 0 |
|
|
| 6 | Right door grill Until car No 80973 | 61488300 | POA | 1 | 0 |
|
|
| 6 | Left door grill From car No 80974 | 61575400 | POA | 1 | 0 |
|
|
| 7 | Licence plate support bracket For US | 61489500 | POA | 2 | 0 |
|
|
| 8 | Licence plate support bracket For F - l | 61488600 | POA | 2 | 0 |
|
|
| 9 | Rear R.H. grill | 61490600 | POA | 1 | 0 |
|
|
| 10 | Lower pad fixing right door grill From car No ............. | 61579600 | POA | 1 | 0 |
|
|
| 10 | Lower pad fixing right door grill Until car No ............. | 61488700 | POA | 1 | 0 |
|
|
| 10 | Lower pad fixing left door grillUntil car No ............. | 61488800 | POA | 1 | 0 |
|
|
| 10 | Lower pad fixing left door grill From car No ............. | 61579700 | POA | 1 | 0 |
|
|
| 11 | Screw | 13310811 | POA | 6 | 0 |
|
|
| 12 | Special washer | 61488900 | POA | 4 | 0 |
|
|
| 13 | Rivet | 15627611 | POA | 10 | 0 |
|
|
| 14 | Upper pad fixing right door grill Until car No ............. | 61489100 | POA | 1 | 0 |
|
|
| 14 | Upper pad fixing left door grill From car No ............. | 61579500 | POA | 1 | 0 |
|
|
| 14 | Upper pad fixing right door grill From car No ............. | 61579400 | POA | 1 | 0 |
|
|
| 14 | Upper pad fixing left door grillUntil car No ............. | 61489000 | POA | 1 | 0 |
|
|
| 15 | Screw | 13274411 | POA | 4 | 0 |
|
|
| 16 | Washer | 12624101 | POA | 4 | 0 |
|
|
| 17 | Lower pad fixing right side grill | 61489200 | POA | 1 | 0 |
|
|
| 17 | Lower pad fixing left side grill | 61489300 | POA | 1 | 0 |
|
|
| 18 | Upper pad fixing right side grill | 61489400 | POA | 1 | 0 |
|
|
| 18 | Upper pad fixing left side grill | 61489500 | POA | 1 | 0 |
|
|
| 19 | Right side grill | 61489600 | POA | 1 | 0 |
|
|
| 19 | Left side grill | 61489700 | POA | 1 | 0 |
|
|
| 20 | Washer | 12646801 | POA | 2 | 0 |
|
|
| 21 | Screw | 13311011 | POA | 4 | 0 |
|
|
| 22 | Right pad For CDN | 61547900 | POA | 1 | 0 |
|
|
| 22 | Right padNot for CDN | 61489800 | POA | 1 | 0 |
|
|
| 22 | Left padFor CDN | 61548000 | POA | 1 | 0 |
|
|
| 22 | Left pad Not for CDN | 61489900 | POA | 1 | 0 |
|
|
| 23 | Right plate for pad | 61490000 | POA | 1 | 0 |
|
|
| 23 | Left plate for pad | 61490100 | POA | 1 | 0 |
|
|
| 24 | Right gasket | 61490800 | POA | 1 | 0 |
|
|
| 25 | Rear underbody grill For US-SA-CH-CAT | 61531800 | POA | 1 | 0 |
|
|
| 26 | L.H. grill bracket For US-SA-CH-CAT | 61531900 | POA | 1 | 0 |
|
|
| 26 | R.H. grill bracket For US-SA-CH-CAT | 61532000 | POA | 1 | 0 |
|
|
| 27 | Front grill For CDN | 61547800 | POA | 1 | 0 |
|
|
| 28 | Pininfarina ornament | 61490200 | POA | 2 | 0 |
|
|
| 29 | Net for engine air exhaust | 61490300 | POA | 1 | 0 |
|
|
| 30 | Rear plate holder For US - SA | 61537200 | POA | 1 | 0 |
|
|
| 30 | Rear plate holder Not for US - SA | 61537100 | POA | 1 | 0 |
|
|
| 31 | Front plate holderCDN | 61555900 | POA | 1 | 0 |
|
|
| 31 | Front plate holder GEE - CH | 61537000 | POA | 1 | 0 |
|
|
| 31 | Front plate holder Italia - F - US | 61536900 | POA | 1 | 0 |
|
|
| 32 | LH grill bracket Until car No 82982 - Not for US - SA - CH - CAT | 61529700 | POA | 1 | 0 |
|
|
| 32 | LH grill bracket From car No 82983 and for US - SA - CH - CAT | 61532000 | POA | 1 | 0 |
|
|
| 32 | RH grill bracket From car No 82983 and for US - SA - CH - CAT | 61531900 | POA | 1 | 0 |
|
|
| 32 | RH grill bracket Until car No 82982 - Not for US - SA - CH - CAT | 61529600 | POA | 1 | 0 |
|
|
| 33 | Pininfarina name | 61577300 | POA | 4 | 0 |
|
|
| 34 | Rear underbody grillNot for US - SA - CH - CAT | 61529500 | POA | 1 | 0 |
|
|
| 35 | Rear L.H. grill | 61490500 | POA | 1 | 0 |
|
|
| 36 | Pad for rear left grill | 61490700 | POA | 1 | 0 |
|
|
| 37 | Undergrill gasket | 61499900 | POA | 1 | 0 |
|
|
| 38 | Gasket | 61491100 | POA | 2 | 0 |
|
|
| 39 | Grill union | 61490900 | POA | 1 | 0 |
|
|
| 40 | Under rear window grill | 61491000 | POA | 1 | 0 |
|
|
| 41 | Horse Until exhaustion use PN 62984300 | 61766400 | POA | 1 | 0 |
|
|
| 42 | L.H. bracket | 61576900 | POA | 1 | 0 |
|
|
| 42 | R.H. bracket | 61577000 | POA | 1 | 0 |
|
|
| 43 | R.H. cover - LHD From car 78848 | 61574500 | POA | 1 | 0 |
|
|
| 43 | L.H. cover - RHD Until car 78847 | 61568800 | POA | 1 | 0 |
|
|
| 43 | L.H. cover - RHD From car 78848 | 61575200 | POA | 1 | 0 |
|
|
| 43 | L.H. cover - LHD Until car 78847 | 61550000 | POA | 1 | 0 |
|
|
| 43 | L.H. cover - LHD From car 78848 | 61574600 | POA | 1 | 0 |
|
|
| 43 | R.H. cover - RHD From car 78848 | 61575100 | POA | 1 | 0 |
|
|
| 43 | R.H. cover - RHD Until car 78847 | 61568700 | POA | 1 | 0 |
|
|
| 43 | R.H. cover - LHD Until car 78847 | 61549900 | POA | 1 | 0 |
|
|
| 44 | LH outside mirror - AUS Until car 78847 | 61555400 | POA | 1 | 0 |
|
|
| 44 | RH outside mirror GB-ZA From car 78848 | 61574900 | POA | 1 | 0 |
|
|
| 44 | RH outside mirror - AUS From car 78848 | 61574700 | POA | 1 | 0 |
|
|
| 44 | RH outside mirror GB-ZA Until car 78847 | 61555500 | POA | 1 | 0 |
|
|
| 44 | RH outside mirror - US Until car 78847 | 61549700 | POA | 1 | 0 |
|
|
| 44 | RH outside mirror - US From car 78848 | 61574100 | POA | 1 | 0 |
|
|
| 44 | LH curved glass assy. Not for US | 61567600 | POA | 1 | 0 |
|
|
| 44 | RH outside mirror - LHD Until car 78847 - Not for US | 61550100 | POA | 1 | 0 |
|
|
| 44 | RH outside mirror - LHD From car 78848 - Not for US | 61574300 | POA | 1 | 0 |
|
|
| 44 | LH outside mirror - LHD From car 78848 - Not for US | 61574400 | POA | 1 | 0 |
|
|
| 44 | RH outside mirror - AUS Until car 78847 | 61555300 | POA | 1 | 0 |
|
|
| 44 | LH flat glass assy. For US | 61567800 | POA | 1 | 0 |
|
|
| 44 | LH outside mirror - AUS From car 78848 | 61574800 | POA | 1 | 0 |
|
|
| 44 | Motor assy, for ext. mirror | 61567900 | POA | 2 | 0 |
|
|
| 44 | LH outside mirror - US From car 78848 | 61574200 | POA | 1 | 0 |
|
|
| 44 | LH outside mirror GB-ZA From car 78848 | 61575000 | POA | 1 | 0 |
|
|
| 44 | LH outside mirror GB-ZA Until car 78847 | 61555600 | POA | 1 | 0 |
|
|
| 44 | RH curved glass assy. Not for US | 61567500 | POA | 1 | 0 |
|
|
| 44 | LH outside mirror - US Until car 78847 | 61549800 | POA | 1 | 0 |
|
|
| 44 | RH flat glass assy. For US | 61567700 | POA | 1 | 0 |
|
|
| 44 | LH outside mirror - LHD Until car 78847 - Not for US | 61550200 | POA | 1 | 0 |
|
|
| 45 | RH pin | 61576700 | POA | 1 | 0 |
|
|
| 45 | LH pin | 61576800 | POA | 1 | 0 |
|
|
| 46 | Washer | 61577200 | POA | 2 | 0 |
|
|
| 47 | Screw | 61577100 | POA | 2 | 0 |
|
