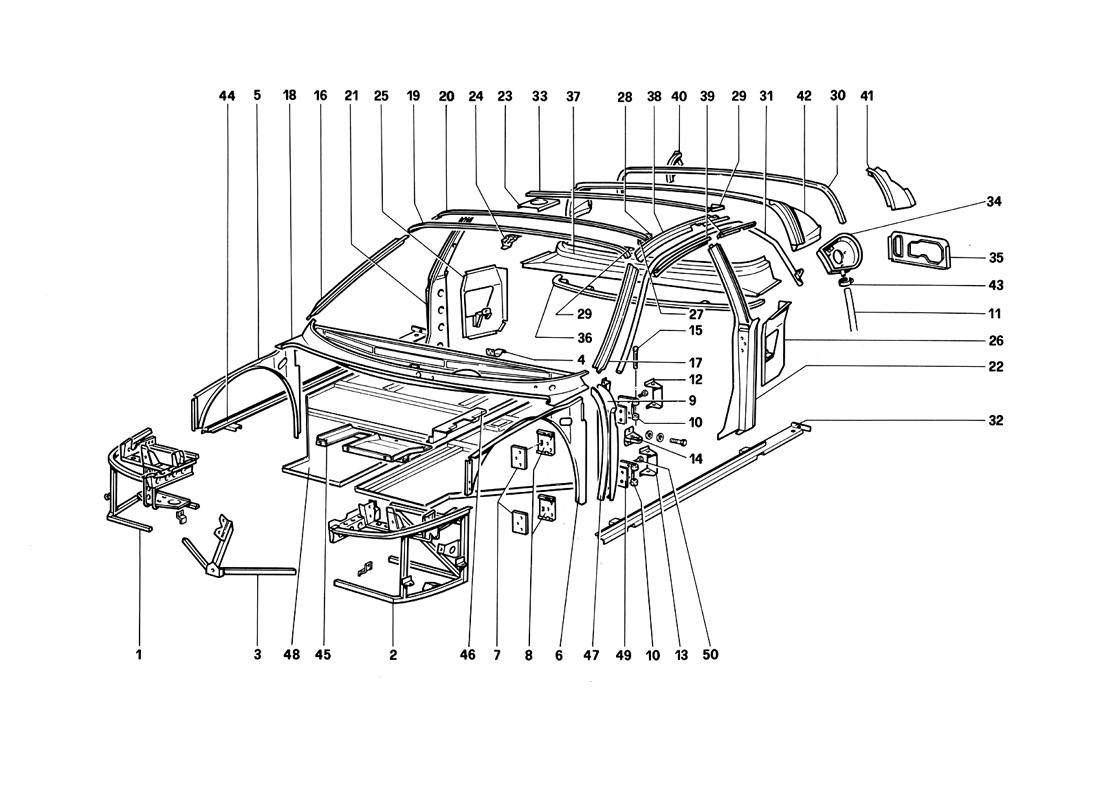

Ferrari / Testarossa (1990) / 103 - Body - Internal Components
Go to order form
| Diagram # | Name | Part # | Price | Fitted Quantity |
Quantity Available |
Quantity | Select |
|---|---|---|---|---|---|---|---|
| 1 | Front right frame | 61482800 | POA | 1 | 0 |
|
|
| 2 | Front left frame | 61482900 | POA | 1 | 0 |
|
|
| 3 | Front central frame For CH | 61540400 | POA | 1 | 0 |
|
|
| 3 | Front central frame Not for CH | 61483000 | POA | 1 | 0 |
|
|
| 4 | Clip | 61483100 | POA | 1 | 0 |
|
|
| 5 | Right front inner body side | 61483200 | POA | 1 | 0 |
|
|
| 6 | Left front inner body side | 61483300 | POA | 1 | 0 |
|
|
| 7 | Nut screw plate | 61483400 | POA | 4 | 0 |
|
|
| 8 | Seat nut screw plate | 61483500 | POA | 4 | 0 |
|
|
| 9 | Seat for right door hinge | 61483600 | POA | 1 | 0 |
|
|
| 9 | Seat for left door hinge | 61483700 | POA | 1 | 0 |
|
|
| 10 | Hinge for door | 61483800 | POA | 4 | 0 |
|
|
| 11 | Hose | 123391 | POA | 1 | 0 |
|
|
| 12 | Upper stiffening | 61484000 | POA | 2 | 0 |
|
|
| 13 | Lower stiffening | 61484100 | POA | 2 | 0 |
|
|
| 14 | Bracket | 61484200 | POA | 2 | 0 |
|
|
| 15 | Pin for door hinge | 61484300 | POA | 4 | 0 |
|
|
| 16 | Right pillar | 61484400 | POA | 1 | 0 |
|
|
| 17 | Left pillar | 61484500 | POA | 1 | 0 |
|
|
| 18 | Under - windshield | 61484600 | POA | 1 | 0 |
|
|
| 19 | Front rib | 61484700 | POA | 1 | 0 |
|
|
| 20 | Central rib | 61484800 | POA | 1 | 0 |
|
|
| 21 | Rear right door pillar | 61484900 | POA | 1 | 0 |
|
|
| 22 | Rear left door pillar | 61485000 | POA | 1 | 0 |
|
|
| 23 | Stiffening | 61485100 | POA | 1 | 0 |
|
|
| 24 | Bracket | 61485200 | POA | 1 | 0 |
|
|
| 25 | RH belt retractor housing | 61485300 | POA | 1 | 0 |
|
|
| 26 | LH belt retractor housing | 61485400 | POA | 1 | 0 |
|
|
| 27 | Front stiffening for central rib | 61485500 | POA | 2 | 0 |
|
|
| 28 | Rear stiffening for central rib | 61485600 | POA | 2 | 0 |
|
|
| 29 | Stiffening for rear rib | 61485700 | POA | 4 | 0 |
|
|
| 30 | Rear window plate | 61488000 | POA | 1 | 0 |
|
|
| 31 | Left upper frame for passenger comp. | 61487900 | POA | 1 | 0 |
|
|
| 31 | Right upper frame for passenger comp. | 61487800 | POA | 1 | 0 |
|
|
| 32 | Inner connection plate (L.H.), complete | 61558400 | POA | 1 | 0 |
|
|
| 33 | Rear rib | 61488100 | POA | 1 | 0 |
|
|
| 34 | Fuel filler seat | 61486400 | POA | 1 | 0 |
|
|
| 35 | Right light seat | 61486500 | POA | 1 | 0 |
|
|
| 35 | Left light seat | 61486600 | POA | 1 | 0 |
|
|
| 36 | Frame | 61486700 | POA | 1 | 0 |
|
|
| 37 | Rear window plate | 61486800 | POA | 1 | 0 |
|
|
| 38 | Roof right side rail | 61486900 | POA | 1 | 0 |
|
|
| 38 | Roof left side rail | 61487000 | POA | 1 | 0 |
|
|
| 39 | Upper rail for left door opening | 61487200 | POA | 1 | 0 |
|
|
| 39 | Upper rail for right door opening | 61487100 | POA | 1 | 0 |
|
|
| 40 | Right rear pillar | 61487300 | POA | 1 | 0 |
|
|
| 41 | Left rear pillar | 61487400 | POA | 1 | 0 |
|
|
| 42 | Rear window framework | 61487500 | POA | 1 | 0 |
|
|
| 43 | Clamp | 12179490 | POA | 1 | 0 |
|
|
| 44 | Inner connection plate (R.H.) complete | 61558300 | POA | 1 | 0 |
|
|
| 45 | Plate for accelerator pedal (RHD) | 61530800 | POA | 1 | 0 |
|
|
| 46 | Plate (RHD) | 61530800 | POA | 1 | 0 |
|
|
| 47 | Aluminium, R.H. | 61580400 | POA | 1 | 0 |
|
|
| 47 | Aluminium, L.H. | 61580600 | POA | 1 | 0 |
|
|
| 48 | Flat bed complete For LHD | 118331 | POA | 1 | 0 |
|
|
| 48 | Flat bed complete For RHD | 122574 | POA | 2 | 0 |
|
|
| 49 | Zincfoil for door hinge, R.H. | 61580200 | POA | 2 | 0 |
|
|
| 49 | Zincfoil for door hinge, L.H. | 61580300 | POA | 1 | 0 |
|
|
| 50 | Screw for hinge | 50206408 | POA | 1 | 0 |
|
