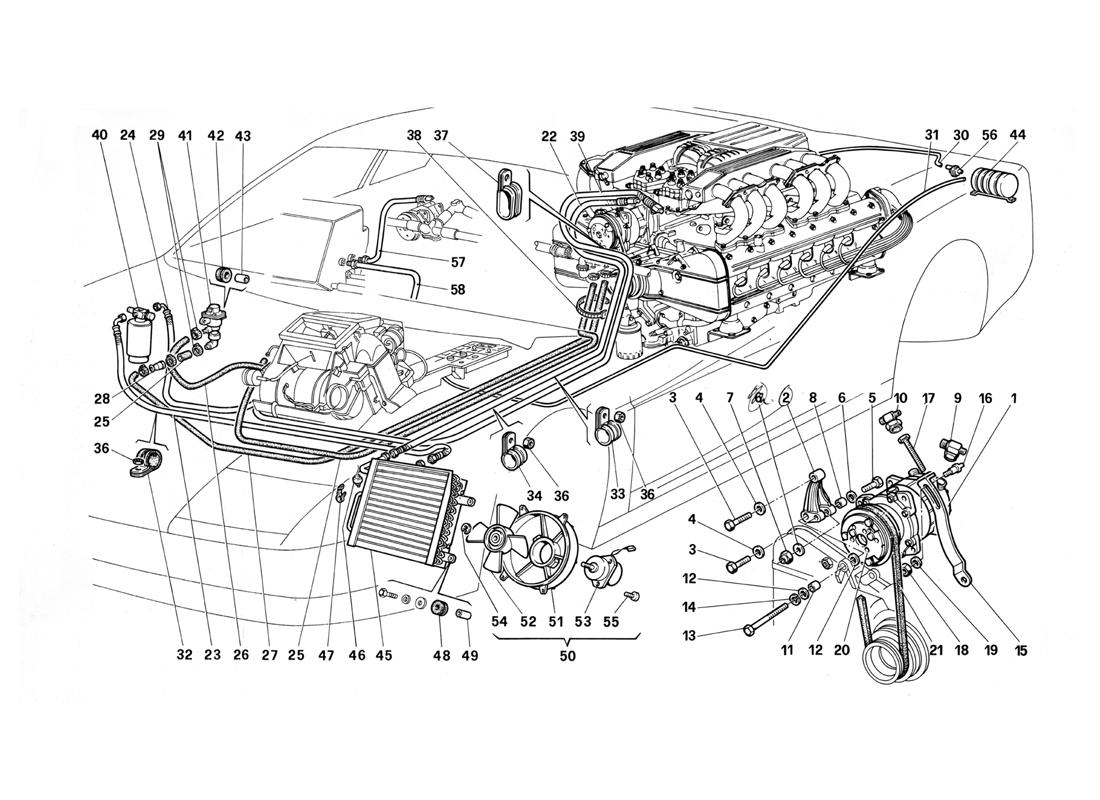

Ferrari / Testarossa (1990) / 057 - Air Conditioning System

Go to order form
Diagram # Name Part # Fitted
Quantity
Quantity Select
1 Compressor 123205 1
2 Compressor support 122963 1
3 Screw 121573 2
4 Washer 12601471 2
5 Screw 11288021 1
6 Washer 14496601 2
7 Nut 12574511 1
8 Spacer 123180 1
9 Intake union - For US 124333 1
9 Intake union - Not for US 127786 1
10 Outlet union 126298 1
11 Bushing union 121100 1
12 Washer 103025 2
13 Screw 15541721 1
14 Washer 106854 1
15 Tension adjusting bracket 123181 1
16 Pin for adjusting bracket 123188 1
17 Tension adjusting screw 125668 1
18 Nut 16104111 1
19 Washer 14496501 1
20 Electromagnetic joint 123813 1
21 Compressor belt 122973 1
22 Hose from compress/or to condeser 124022 1
23 Hose from condeser to filter For RHD 125441 1
23 Hose from condeser to filterFor LHD 124023 1
24 Hose from filter to coolerFor LHD 124024 1
24 Hose from filter to cooler For RHD 130918 1
25 Hose from engine to, heater 124027 1
26 Hose from heater to valve For RHD 125445 1
26 Hose from heater to valve For LHD 61615000 1
27 Hose from valve to engine 124029 1
28 Metal undersize to engine 124030 1
29 Clamp 12179990 5
30 Hose from engine to vacuum reservoirFor US and CAT. 127455 1
30 Hose from engine to vacuum reservoirNot for US and CAT. 124031 1
31 Hose from reservoir to push-button panel 124032 1
32 Hose fastening bracket 10441490 2
33 Hose fastening bracket 10441890 2
34 Hose fastening bracket 119463 1
35 Sleeve 125003 1
36 Nut 12574211 4
37 Hose fastening bracket 61712500 1
38 Hose supporting clamp 125727 2
39 Hose from evaporator to compressorNot for US - C8 - SA and CAT 127787 1
40 Dryer filterUntil exhaustion 114730 1
40 PressostatFor filter - no. 129101 129102 1
40 Dryer filterAfter exhaustion no. 114730 129101 1
41 Electromagnetic valve 61079000 1
42 Vibration - damping bushing 103549 2
43 Spacer 103550 2
44 Vacuum reservoir complete with valve 61642700 1
45 Condenser 61400300 1
46 Bimetallic thermocontact 61047900 1
47 Clip 60815000 1
48 Vibration-damping bushing 103549 4
49 Spacer 113550 4
50 Fan assembly 131647 1
51 Air conveyor 60870300 1
52 Fan 122953 1
53 Motor 117546 1
54 Stop ring 11087876 1
55 Screw 123298 3
56 Single-action valve 62507200 1
57 Hose from exchanger to compressorFor US - C8 - SA and CAT. 125851 1
58 Hose from evaporator to exchangerFor US - C8 - SA and CAT 125852 1
58 Hose from evaporator to exchanger RHDE 145539 1
