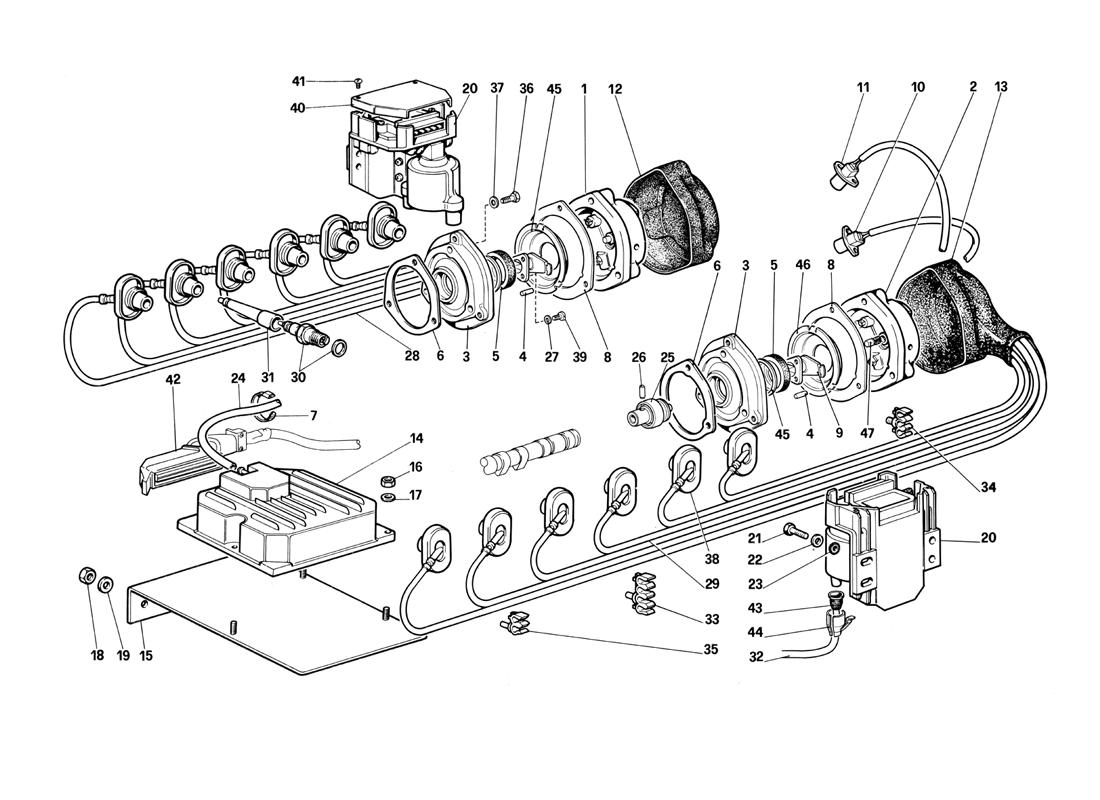

Ferrari / Testarossa (1990) / 055 - Engine Ignition

Go to order form
Diagram # Name Part # Fitted
Quantity
Quantity Select
N/A Complete HT Leads Set HT008 1
1 RH Distributor CapUse on Exhaustion of 121552 144637 1
1 R.H. distributor capAfter exhaustion and for CAT. use no. 144637 121552 1
2 LH Distributor CapUse on Exhaustion of 124575 144638 1
2 L.H. distributor capAfter exhaustion and for CAT. use no. 144638 124575 1
3 Distributor cap supportUntil exhaustion 126115 2
3 L.H. distributor cap supportAfter exhaustion no. 126115 133347 1
3 R.H. distributor cap supportAfter exhaustion no. 126115 133346 1
4 Dowel 10331111 2
5 Oil seal ring 132452 2
6 GasketWithout Amianthus 134956 2
6 Gasket With Amianthus 117261 2
7 Clamp 110381 3
8 Gasket 119409 2
9 Rotor arm 126139 2
10 Angular speed sensor 119052 1
11 Dead center pick-up sensor 124241 1
12 R.H. distributor cap bootAfter exhaustion and for CAT. use no. 139540 124581 1
13 L.H. distributor cap bootAfter exhaustion and for CAT.use no. 139541 124582 1
14 Ignition module For C7 - After exhaustion and for CAT. use no. 144242 125828 1
15 Ignition module securing plate 124391 1
16 Nut 12574211 3
17 Washer 12639701 3
18 Nut 12574211 2
19 Washer 12639701 2
20 Power module with coilFor CAT. 143413 2
20 Power module with coilNot for CAT. 124273 2
21 Screw 10902327 4
22 Washer 12643701 4
23 Tab washer 10615471 4
24 Ignition module depression hose 122762 1
25 Coupling on camshaft 133063 2
26 Spring pin 132355 2
27 Washer 12544071 6
28 Set of R.H. ignition cables 124171 1
29 Set of L.H. ignition cables 124172 1
30 Spark plug CHAMPION A-6GAfter exhaustion and for CAT. use no. 131922 124274 12
30 Spark plug Bosch X R4CSIn alternative 139425 12
31 Extension for spark plugs cables 124792 12
32 Cable from coil to distributor cap 124179 2
33 4 - cable support clip 121788 2
34 3 - cable support clip 121789 8
35 2 - cables upport clip 121790 4
36 Screw 10902321 2
37 Washer 11197771 2
38 Spark plug cap 121527 12
39 Screw 10444521 6
40 Protection for power module 128169 2
41 Screw 15921807 4
42 25 way connector 61916900 1
43 Cap 122970 2
44 Protection 129620 2
45 SpacerFor distributor cap support no. 126115 133066 2
46 Cover Startirig from engine no. 15098 - 15269 US 132907 2
47 Solid carbon with spring For distributor cap no. 121552 and 124575 140567 2
47 Solid carbon with spring For distributor cap no. 144637 and 144638 144740 2
