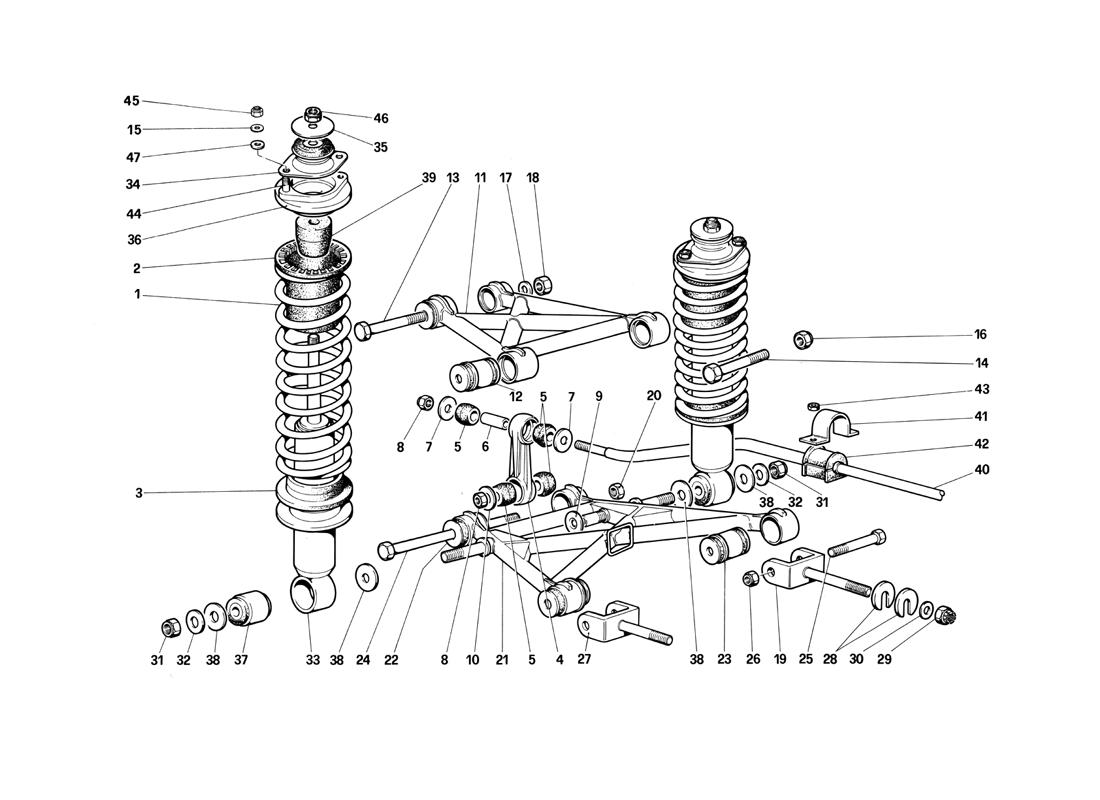

Ferrari / Testarossa (1990) / 051 - Rear Suspension - Wishbones and Shock Absorbers - Until Car No. 75995

Go to order form
Diagram # Name Part # Fitted
Quantity
Quantity Select
1 Suspension spring 124982 4
2 Upper spacer 103263 4
3 Lower spacer 103264 4
4 Rod link 124330 2
5 Grommet 108244 8
6 Spacer tube 108294 2
7 Grommet retaining washer 107409 4
8 Nut 16104421 4
9 Washer 14489201 2
10 Washer 124338 2
11 Upper lever 122964 2
12 Rubber bush for upper levers 111616 8
13 Screw 116699 2
14 ScrewUntil car no. 121693 4
14 ScrewStarting car no. 106419 4
15 Washer 12646721 4
16 Nut 16105121 2
17 Washer 12601571 2
18 Nut 16105121 2
19 Rear fork Not for B1 116690 2
19 Rear forkNot for B1 125889 2
20 Nut 101040 2
21 Lower fork 128415 2
22 Lower rubber bush-hub holder side 120813 4
23 Rubber bushingAfter exhaustion use no. 134883 129583 4
24 Screw 120815 2
25 Screw 106422 4
26 Nut 12575821 2
27 Fork For B1 116690 4
28 Shim 2 mm. thichness 107339 4
28 Shim 3,25 mm. thichness 107342 4
28 Shim 3 mm. thichness 107341 4
28 Shim 2,5 mm. thichness 107340 4
28 Stiim 1,5 mm. thichness 107338 4
28 Shim 1 mm. thichness 101039 4
29 Nut 101040 4
30 Washer 101041 4
31 Selflocking nut 12575821 4
32 Washer 106855 4
33 Shock absorber 128430 4
34 Hyperblock 116864 4
35 Hyperblock retaining washer 116862 8
36 Shock absorber securing cup 116861 4
37 Estandblock 125926 4
38 Washer 128509 8
39 Shock absorber pad 116358 4
40 Rod link 124984 1
41 Rod retaining U bolt 104417 2
42 Rod retaining pad 109010 2
43 Stud 12575611 4
44 Stud 13543521 8
45 Nut 16104121 8
46 Nut 16105121 4
47 Spacer 113113 4
