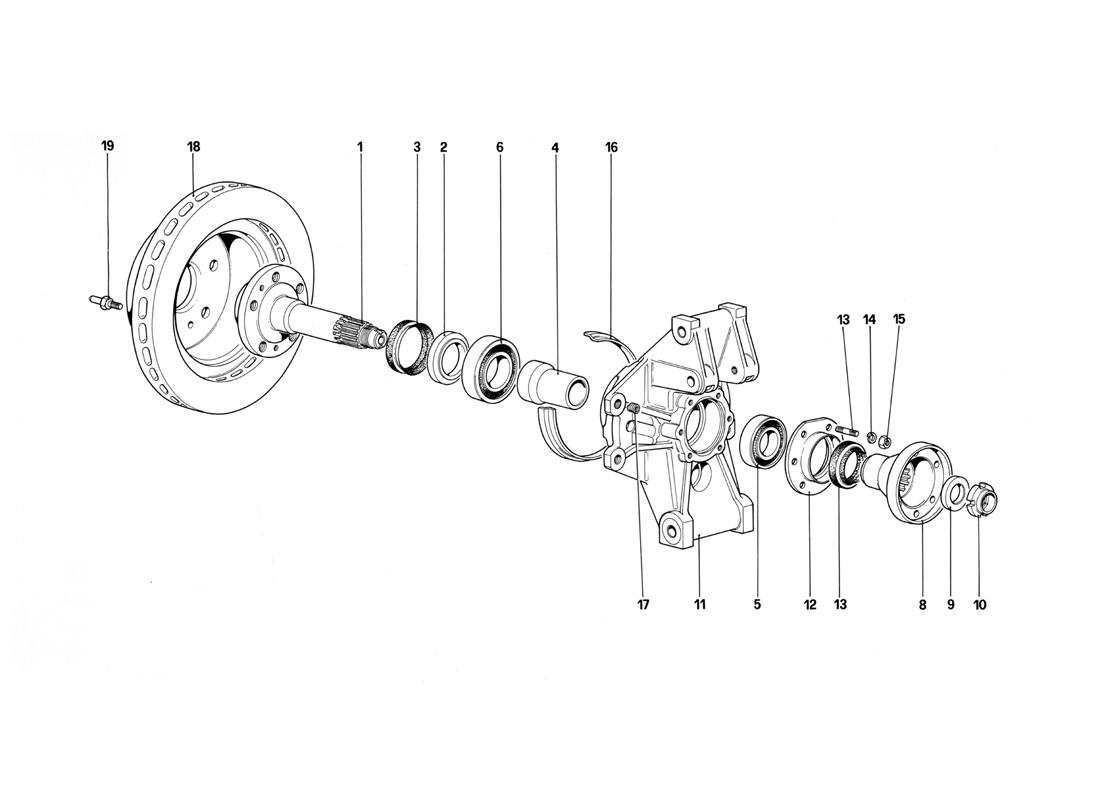

Ferrari / Testarossa (1990) / 050 - Rear Suspension - Brake Disc - Starting From Car No. 75997

Go to order form
Diagram # Name Part # Fitted
Quantity
Quantity Select
1 Shaft with bubAfter exhaustion use no. 145553 134780 2
2 Spacer 118190 2
3 HUB OIL SEAL 110579 2
4 SpacerAfter exhaustion use no. 145554 134769 2
5 Inner bearingAfter exhaustion use no. 145805 125934 2
6 Outer bearingAfter exhaustion use no. 144807 125935 2
7 Scaling ring 115968 2
8 Axle shaft flange 119372 2
9 Washer 105511 2
10 Ring nut 102289 2
11 Rear bub holder 134887 2
12 Bearing retaining flange 125976 2
13 Stud 13543321 12
14 Washer 127496 12
15 Nut 16100821 12
16 Water shield 101546 2
17 Heli-coil 13524570 4
18 Brake disc 134730 2
19 Centering screw 104370 4
