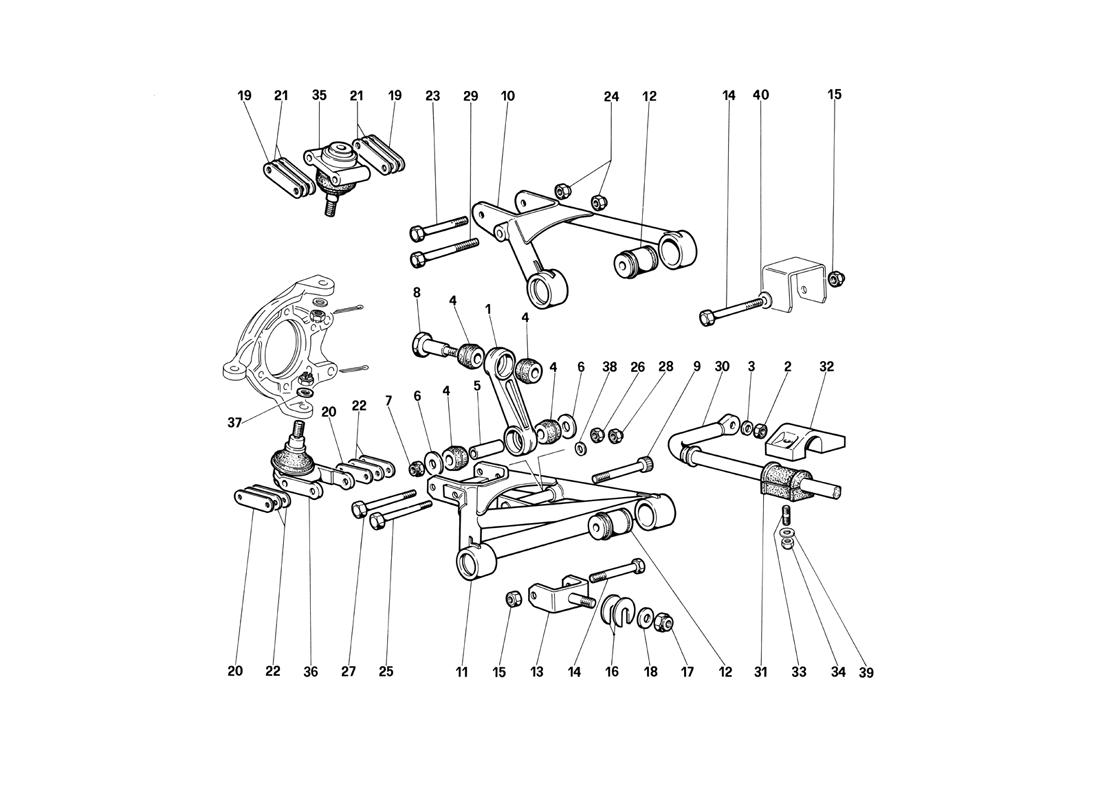

Ferrari / Testarossa (1990) / 047 - Front Suspension - Wishbones - Until Car No. 75995

Go to order form
Diagram # Name Part # Fitted
Quantity
Quantity Select
1 Rod link 114691 2
2 Nut 16103621 2
3 Washer 106854 2
4 Grommet 100984 8
5 Spacer tube 100985 2
6 Washer 117730 4
7 Nut 16105121 2
8 Pin 121679 2
9 Screw 125396 2
10 Right upper lever 121392 2
10 Left upper lever 121393 2
11 Left lower lever 121391 2
11 Right lower lever 121390 2
12 Flamblock 111617 8
13 Lower forkAfter exhaustion use no. 112807 127639 4
14 Screw For fork. no. 112807 106419 8
14 Screw For fork no. 127639 121693 8
15 Nut 16105121 8
16 Shim for lower fork, thickness 1 mm.If required 101039 8
16 Shim for lower fork, thickness 3,25 mm.If required 107342 8
16 Shim for lower fork, thickness 1.5 mm.If required 107338 8
16 Shim for lower fork, thickness 2 mm.If required 107339 8
16 Shim for lower fork, thickness 2.5 mm.If required 107340 8
16 Shim for lower fork, thickness 3 mm.If required 107341 8
17 Nut 12575821 4
18 Washer 101041 4
19 Upper adjusting plate for caster angleIf required 115072 4
20 Lower adjusting plate for caster angleIf required 124365 4
21 Clearance adjusting plate, upper 103256 8
22 Clearance adjusting plate, lower 125397 8
23 Screw 109013 2
24 Nut 12574521 4
25 Screw 112441 2
26 Nut 12574521 2
27 Screw 15971621 2
28 Nut 16105121 2
29 Screw 114818 2
30 Stabilizer rod 124985 1
31 Rod retaining pad 130606 2
32 Support for stabilizer rod 133227 2
33 Stud 13516821 4
34 Nut 16104411 4
35 Upper ball joint 116280 2
36 Lower ball jointAfter exhaustion use no. 133944 114462 2
37 Washer 101445 2
38 Washer 106616 2
39 Washer 102683 4
