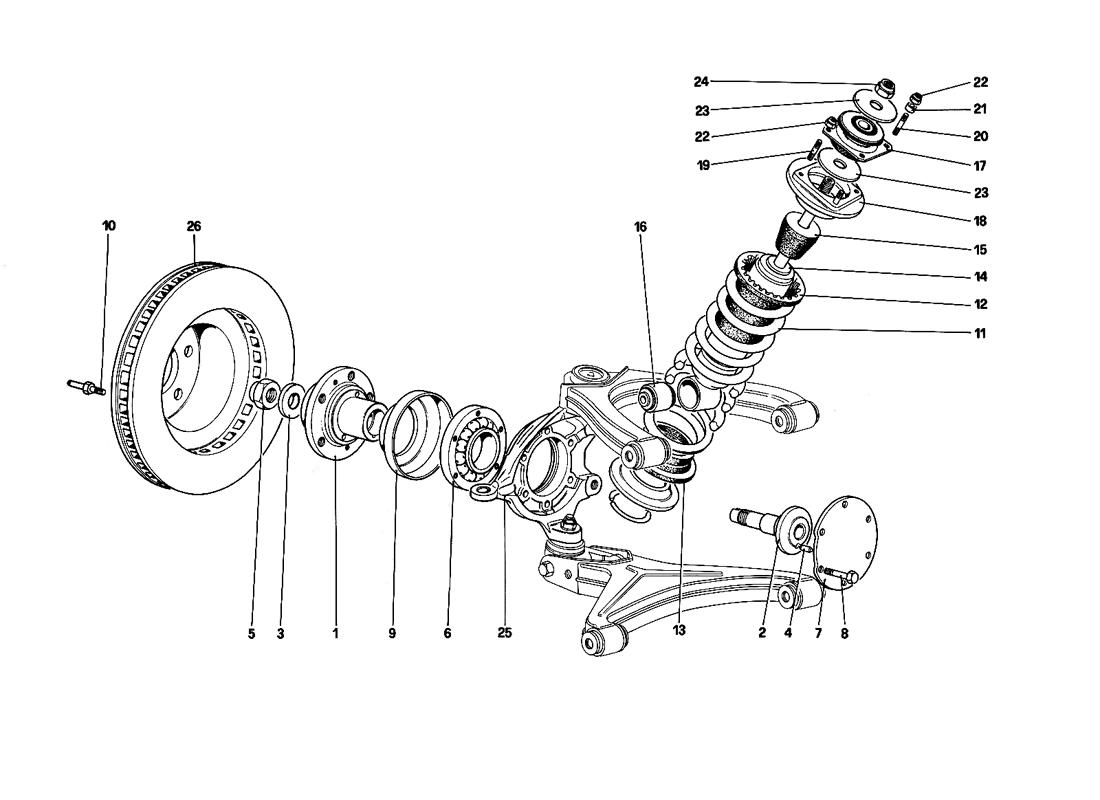

Ferrari / Testarossa (1990) / 046 - Front Suspension - Shock Absorber and Brake Disc - Until Car No. 75995
Go to order form
| Diagram # | Name | Part # | Price | Fitted Quantity |
Quantity Available |
Quantity | Select |
|---|---|---|---|---|---|---|---|
| 1 | Front wheel hub | 124463 | POA | 2 | 0 |
|
|
| 2 | Stay bolt for bearing | 124465 | POA | 2 | 0 |
|
|
| 3 | Washer | 124464 | POA | 2 | 0 |
|
|
| 4 | Pin | 13909870 | POA | 2 | 0 |
|
|
| 5 | Nut | 124642 | POA | 2 | 0 |
|
|
| 6 | Bearing | 112799 | POA | 2 | 0 |
|
|
| 7 | Cover | 131278 | POA | 2 | 0 |
|
|
| 8 | Screw | 14238731 | POA | 12 | 0 |
|
|
| 9 | Bearing cover | 112823 | POA | 2 | 0 |
|
|
| 10 | Centering screw | 104370 | POA | 4 | 0 |
|
|
| 11 | Suspension spring | 124981 | POA | 2 | 0 |
|
|
| 12 | Upper spacer | 113582 | POA | 2 | 0 |
|
|
| 13 | Lower spacer | 113581 | POA | 2 | 0 |
|
|
| 14 | Shock absorber | 125048 | POA | 2 | 0 |
|
|
| 15 | Rubber rebound bunper | 116358 | POA | 2 | 0 |
|
|
| 16 | Estendblock | 100809 | POA | 2 | 0 |
|
|
| 17 | Hyperblock | 114812 | POA | 2 | 0 |
|
|
| 18 | Spring retaining cup | 114809 | POA | 2 | 0 |
|
|
| 19 | Stud. | 13543321 | POA | 4 | 0 |
|
|
| 20 | Stud | 13543621 | POA | 4 | 0 |
|
|
| 21 | Spacer | 13605811 | POA | 4 | 0 |
|
|
| 22 | Selflocking nut | 16104121 | POA | 8 | 0 |
|
|
| 23 | Washer | 114815 | POA | 4 | 0 |
|
|
| 24 | Selflocking nut | 16105121 | POA | 2 | 0 |
|
|
| 25 | Right stub axle | 116722 | POA | 1 | 0 |
|
|
| 25 | Left stub axle | 116721 | POA | 1 | 0 |
|
|
| 26 | Brake disc | 134725 | POA | 2 | 0 |
|
