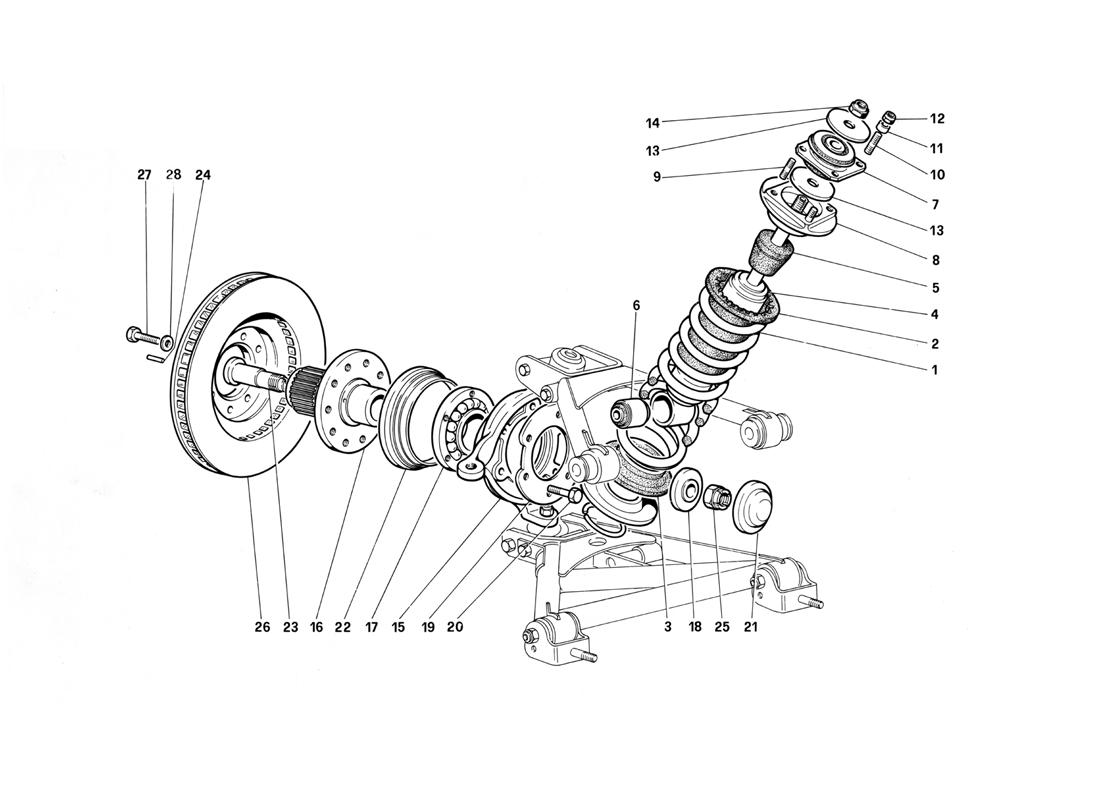

Ferrari / Testarossa (1990) / 045 - Front Suspension - Shock Absorber and Brake Disc - Until Car No. 75995

Go to order form
Diagram # Name Part # Fitted
Quantity
Quantity Select
1 Suspension spring 124981 2
2 Upper spacer 113582 2
3 Lower spacer 113581 2
4 Shock absorber 125048 2
5 Rubber rebound bumper 116358 2
6 Estendblock 100809 2
7 Hyperblock 114812 2
8 Spring retaining cup 114809 2
9 Stud 13543321 4
10 Stud 13543621 4
11 Spacer 13605811 4
12 Selflocking nut 16104121 8
13 Washer 114815 4
14 Selflocking nut 16105121 2
15 Right stub axle 116721 1
15 Left stub axle 116722 1
16 Left front wheel hub 125723 1
16 Right front wheel hub 125724 1
17 Bearing 112799 2
18 Washer 124510 2
19 Washer 118522 2
20 Screw 14238731 12
21 Bearing cover 124511 2
22 Bearing cover 120066 2
23 Stay bolt for bearing 125725 2
24 Pin 13909870 2
25 Nut 124642 2
26 Brake disc 125734 2
27 Screw 125736 20
28 Washer 106853 20
