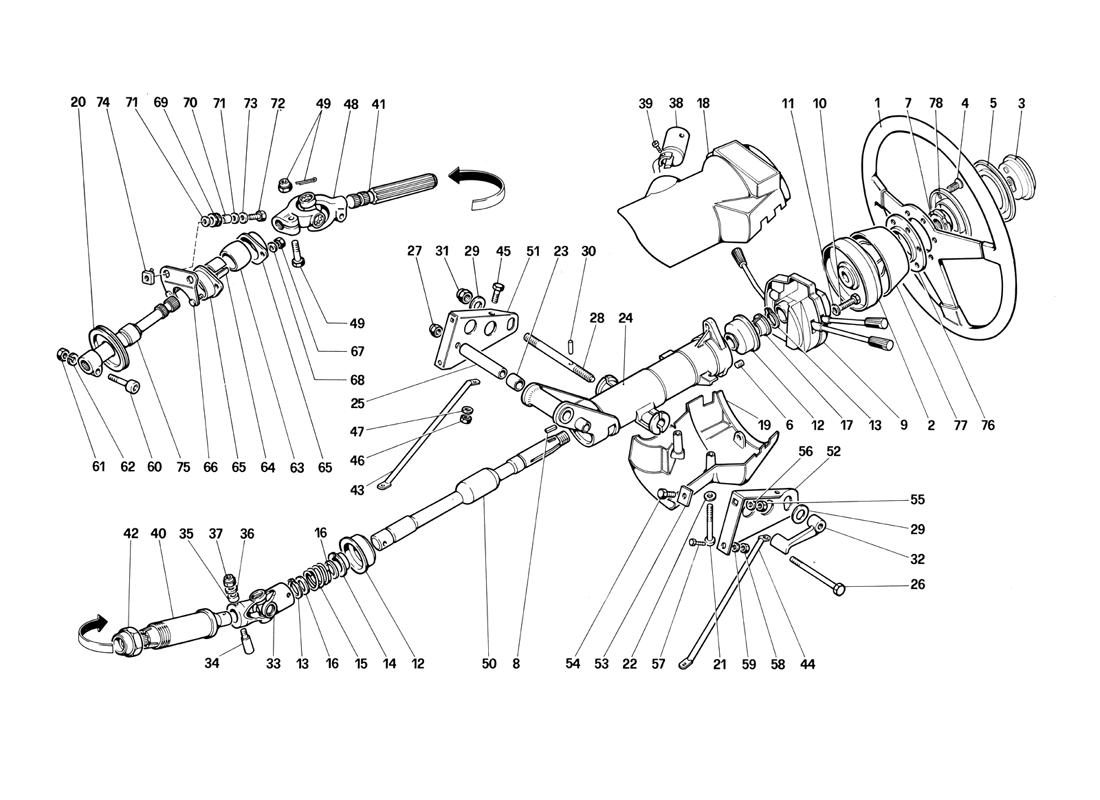

Ferrari / Testarossa (1990) / 042 - Steering Column - Until Car No. 75995

Go to order form
Diagram # Name Part # Fitted
Quantity
Quantity Select
1 Steering wheel 119036 1
2 Steering wheel hub 122244 1
3 Horn push button with holder 130899 1
4 Screw 111189 6
5 Ring nut to cover screws 119040 1
6 Heli-coil 13525170 2
7 Upper shaft securing ring nut 106082 1
8 Key 101106 1
9 "Main switching unit 121561 1
10 Screw 10390211 2
11 Washer 12601171 2
12 Bearing 121576 2
13 Seeger ring 11066876 2
14 Bearing retaining ring 121577 1
15 Bearing retaining spring 121578 1
16 Washer 121579 2
17 Bearing retaining ring 125361 1
18 Upper steering column cover 121580 1
19 Lower steering column cover 121581 1
20 Extension wire holder 112466 1
21 Screw 13275217 2
22 Washer 12601171 2
23 Bushing 121588 2
24 Steering column support 122193 1
25 Pipe for steering wheel adjusting pivot 121589 1
26 Screw 16045021 1
27 Nut 16104411 1
28 Spindle for level 120988 1
29 Washer 114865 2
30 Pin 14163870 1
31 Selflocking nut 16105111 1
32 Shaft locking leverNot for US 121590 1
32 Shaft locking leverFor US 131487 1
33 Upper joint 112572 1
34 Taper pin 112573 1
35 Spacer 112571 2
36 Washer 10519401 2
37 Nut 12574221 2
38 Anti-thelf deviceNot for US and SA 129116 1
38 Anti-thelf deviceFor US and SA 129115 1
39 Screw 121611 1
40 Guide pipe 116484 1
41 Lower steering shaft 108557 1
42 Adjusting nut 106870 1
43 Right tie rod 123382 1
44 Left tie rod 123383 1
45 Screw 10902121 4
46 Nut 15896211 4
47 Washer 106850 4
48 Lower jointIn alternative no. 108362 103343 1
49 Assy for fitting of joint no. 105082 1
50 Upper steering shaft 125359 1
51 Right bracket 120990 1
52 Left bracket 120991 1
53 Safety plate 124826 1
54 Screw 10902221 2
55 Nut 15896211 2
56 Washer 106850 2
57 Screw 16043221 2
58 Nut 16100811 2
59 Washer 106852 2
60 Screw 125518 1
61 Nut 125519 1
62 Washer 12601279 1
63 Ball 103297 1
64 Bushing 103370 1
65 Flange 103292 2
66 Extension support 123516 1
67 Nut 12574211 2
68 Washer 10519401 2
69 Pad 103549 2
70 Bushing 103550 2
71 Washer 12640601 4
72 Screw 10902721 2
73 Washer 106850 2
74 Caged nut 60758600 2
75 Steering box extension 123517 1
76 Horn retaining plate 123099 1
77 Hub cover 123098 1
78 Ring nut to cover screw 136507 1
