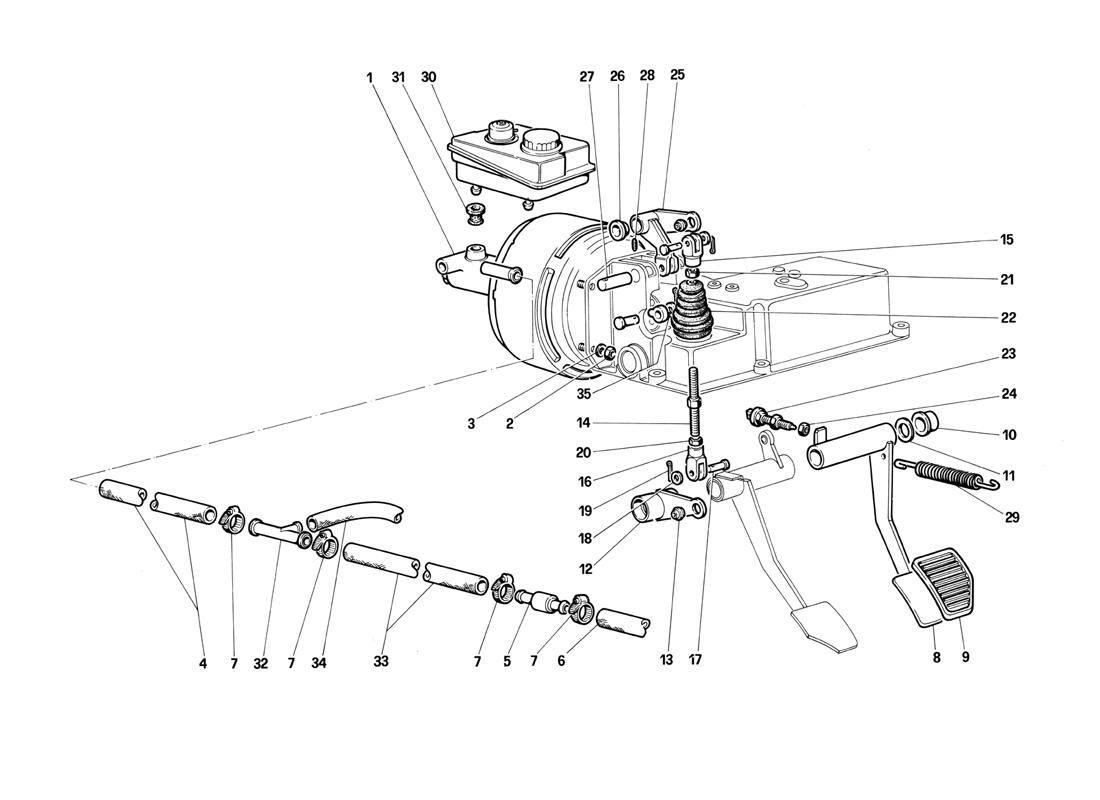

Ferrari / Testarossa (1990) / 037 - Brake Hydrualic System

Go to order form
Diagram # Name Part # Fitted
Quantity
Quantity Select
1 Brake booster 120928 1
2 Nut 16104411 4
3 Washer 12601371 4
4 Hose from brake booster to 3 way union 119361 1
5 No return valveAfter exhaustion use no. 128435 101538 1
6 Hose from valve to engine 127213 1
7 Clamp 12179590 8
8 Brake pedal 121232 1
9 Pedal cover 106950 1
10 Bush 124686 1
11 Shim 0,9 mm.If required 112127 2
11 Shim 1,3 mm.If required 112131 2
11 Shim 1,2 mm.If required 112130 2
11 Shim 1,1 mm.If required 112129 2
11 Shim 1,0 mm.If required 112128 2
12 Brake relay lever 121317 1
13 Ball joint 100424 2
14 Tie rod 119164 2
15 Fork R.H. thread 104910 1
16 Fork LH. thread 104911 1
17 Pin 10033411 3
18 Washer 103167 2
19 Split pin 10796401 3
20 Nut, L.H. threadAfter exhaustion use no. 10788711 103157 1
21 Nut, R.H. threadAfter exhaustion use no. 11690911 103160 1
22 Bellows 112157 1
23 Stop light switch 101663 1
24 Shock absorbing nut 101662 1
25 Brake booster lever 121219 1
26 Bush 124586 2
27 Relay lever supporting pin 124714 1
28 Screw 13736911 1
29 Pedal return spring 141531 1
30 Reservoir 119566 1
31 Seal ring 106625 2
32 3 way union 100881 1
33 Pipe from 3 way union to valve 120232 1
34 Pipe from 3 way union to vacuum pump 125031 1
35 Washer 10730521 1
