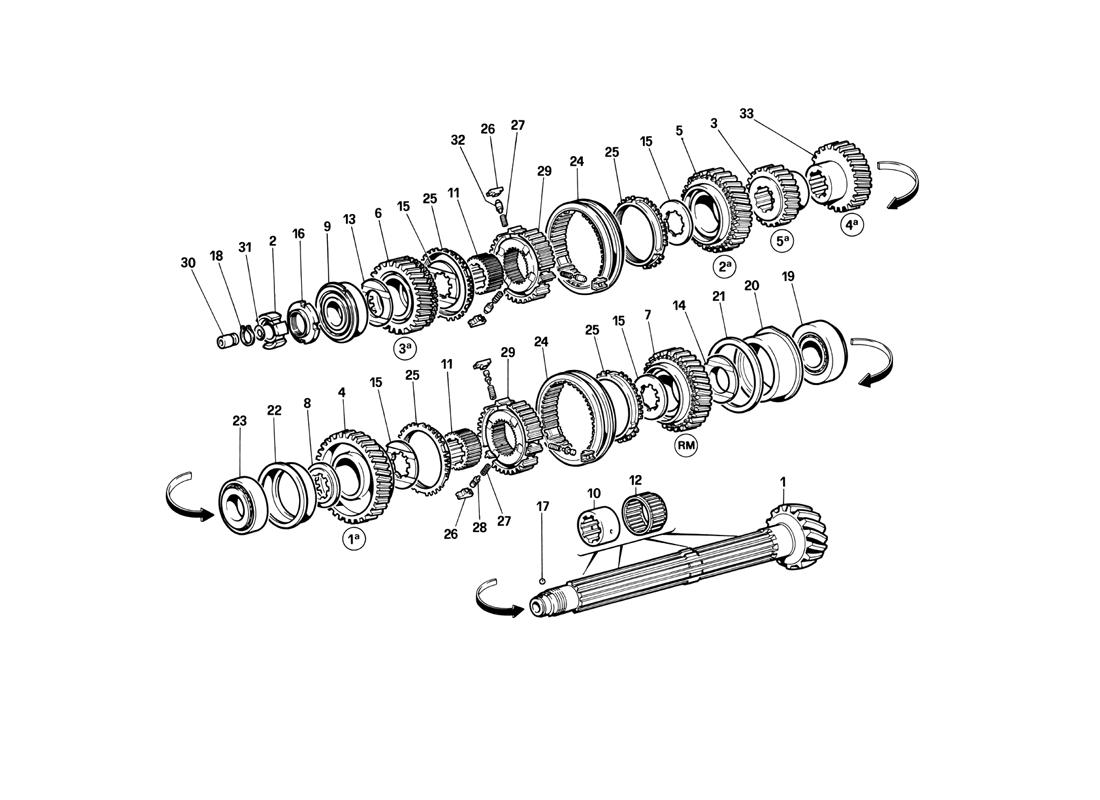

Ferrari / Testarossa (1990) / 034 - Lay Shaft Gears
Go to order form
| Diagram # | Name | Part # | Price | Fitted Quantity |
Quantity Available |
Quantity | Select |
|---|---|---|---|---|---|---|---|
| 1 | Driven shaftWith crown gear and pinion no. 110016 | 110013 | POA | 1 | 0 |
|
|
| 2 | Transmitting disc for pulse generator | 116352 | POA | 1 | 0 |
|
|
| 3 | 5th speed gearStarting from gearbox no. 2579 to gearbox no. 3657 | 136338 | POA | 1 | 0 |
|
|
| 3 | 5th speed gearUntil gearbox no. 2578 | 123125 | POA | 1 | 0 |
|
|
| 3 | 5th speed gearStarting from gearbox no. 3658 | 140198 | POA | 1 | 0 |
|
|
| 4 | 1st speed gearStarting from gearbox no. 3658 | 140207 | POA | 1 | 0 |
|
|
| 4 | 1st speed gearUntil gearbox no. 2578 | 132143 | POA | 1 | 0 |
|
|
| 4 | 1st speed gearStarting from gearbox no. 2579 to gearbox no. 3657 | 136341 | POA | 1 | 0 |
|
|
| 5 | 2nd speed gearStarting from gearbox no. 3658 | 140208 | POA | 1 | 0 |
|
|
| 5 | 2nd speed gearUntil gearbox no. 2578 | 132144 | POA | 1 | 0 |
|
|
| 5 | 2nd speed gearStarting from gearbox no. 2579 to gearbox no. 3657 | 136342 | POA | 1 | 0 |
|
|
| 6 | 3rd speed gearUntil gearbox no. 2578 | 112145 | POA | 1 | 0 |
|
|
| 6 | 3rd speed gearStarting from gearbox no. 2579 | 136343 | POA | 1 | 0 |
|
|
| 7 | Reverse gearStarting from gearbox no. 2579 | 136346 | POA | 1 | 0 |
|
|
| 7 | Reverse gearUntil gearbox no. 2578 | 132155 | POA | 1 | 0 |
|
|
| 8 | Spacer between 1st speed and earing, thickness 6,60 mm. | 130986 | POA | 1 | 0 |
|
|
| 8 | Spacer between 1st speed and earing, thickness 6,10 mm. | 110178 | POA | 1 | 0 |
|
|
| 8 | Spacer between 1st speed and earing, thickness 6,30 mm. | 110180 | POA | 1 | 0 |
|
|
| 8 | Spacer between 1st speed and earing, thickness 6,50 mm. | 130985 | POA | 1 | 0 |
|
|
| 8 | Spacer between 1st speed and earing, thickness 6,70 mm. | 130987 | POA | 1 | 0 |
|
|
| 8 | Spacer between 1st speed and earing, 6,00 mm. thickness | 110177 | POA | 1 | 0 |
|
|
| 8 | Spacer between 1st speed and earing, thickness 6,40 mm. | 110181 | POA | 1 | 0 |
|
|
| 8 | Spacer between 1st speed and earing, thickness 6,20 mm. | 110179 | POA | 1 | 0 |
|
|
| 9 | Front bearing | 103030 | POA | 1 | 0 |
|
|
| 10 | Roller race for 1st, 2nd, 3rd, speed and reverse gears | 104704 | 448.49 | 4 | 0 |
|
|
| 11 | Reduction bushing for synch, of 1st speed, Rev. and 2nd-3rd speeds | 104711 | POA | 2 | 0 |
|
|
| 12 | Roller cage for 1st 2nd 3rd speeds and reverse gears | 101604 | POA | 4 | 0 |
|
|
| 13 | Spacer | 110176 | POA | 1 | 0 |
|
|
| 14 | Spacer | 110174 | POA | 4 | 0 |
|
|
| 15 | Spacer | 110175 | POA | 1 | 0 |
|
|
| 16 | Ring nut | 100729 | POA | 1 | 0 |
|
|
| 17 | Ball | 101611 | POA | 1 | 0 |
|
|
| 18 | Stop ring | 11067376 | POA | 1 | 0 |
|
|
| 19 | Bearing, axle side | 101636 | POA | 1 | 0 |
|
|
| 20 | Bushing for bearing | 109609 | POA | 1 | 0 |
|
|
| 21 | Crown gear and pinion adjusting shim, thickness 2,80 mm. | 130982 | POA | 1 | 0 |
|
|
| 21 | Crown gear and pinion adjusting shim, thickness 2.00 mm. | 104725 | POA | 1 | 0 |
|
|
| 21 | Crown gear and pinion adjusting shim, thickness 2,30 mm. | 104728 | POA | 1 | 0 |
|
|
| 21 | Crown gear and pinion adjusting shim, thickness 2,50 mm. | 130979 | POA | 1 | 0 |
|
|
| 21 | Crown gear and pinion adjusting shim, thickness 2,70 mm. | 130981 | POA | 1 | 0 |
|
|
| 21 | Crown gear and pinion adjusting shim, thickness 2,90 mm. | 130983 | POA | 1 | 0 |
|
|
| 21 | Crown gear and pinion adjusting shim, thickness 3,00 mm. | 130984 | POA | 1 | 0 |
|
|
| 21 | Crown gear and pinion adjusting shim, thickness 2,10 mm. | 104726 | POA | 1 | 0 |
|
|
| 21 | Crown gear and pinion adjusting shim, thickness 2,20 mm. | 104727 | POA | 1 | 0 |
|
|
| 21 | Crown gear and pinion adjusting shim, thickness 2,40 mm. | 104729 | POA | 1 | 0 |
|
|
| 21 | Crown gear and pinion adjusting shim, thickness 2,60 mm. | 130980 | POA | 1 | 0 |
|
|
| 22 | Bushing for center bearing | 104730 | POA | 1 | 0 |
|
|
| 23 | Center bearing | 103031 | POA | 1 | 0 |
|
|
| 24 | Sleeve for synchronizer | 131804 | POA | 2 | 0 |
|
|
| 25 | Synchromesh ring | 106040 | 600.48 | 4 | 0 |
|
|
| 26 | Insert for synchronizer | 106042 | 87.24 | 6 | 0 |
|
|
| 27 | Spring for pins | 106043 | 11.59 | 6 | 0 |
|
|
| 28 | Pin for insert | 106044 | POA | 3 | 0 |
|
|
| 29 | Synchronizer body | 106039 | 538.04 | 2 | 0 |
|
|
| 30 | Oil filler | 104745 | POA | 1 | 0 |
|
|
| 31 | Seal ring | 105329 | 1.80 | 1 | 0 |
|
|
| 32 | Pawl for synchronizer | 113412 | POA | 3 | 0 |
|
|
| 33 | 4th speed gearUntil gearbox no. 2578 | 123124 | POA | 1 | 0 |
|
|
| 33 | 4th speed gearStarting from gearbox no. 2579 | 136337 | POA | 1 | 0 |
|
