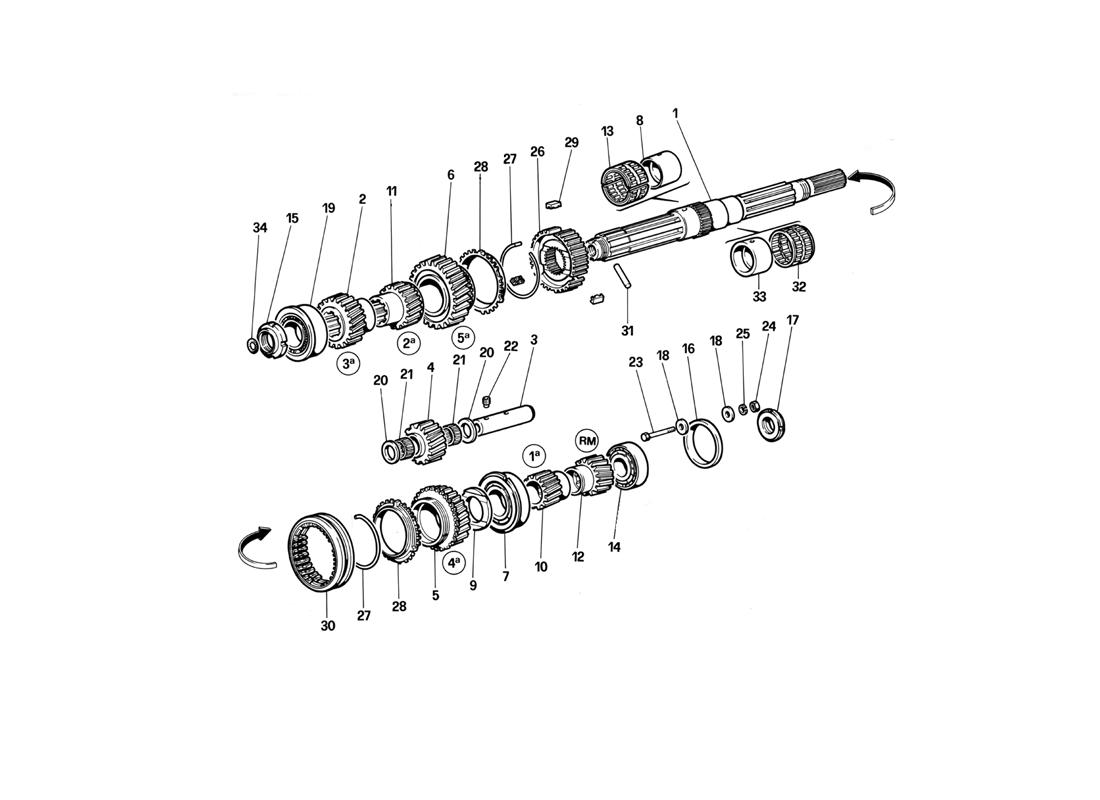

Ferrari / Testarossa (1990) / 033 - Main Shaft Gears
Go to order form
| Diagram # | Name | Part # | Price | Fitted Quantity |
Quantity Available |
Quantity | Select |
|---|---|---|---|---|---|---|---|
| 1 | Main shaft | 109716 | POA | 1 | 0 |
|
|
| 2 | 3rd speed gearStarting from gearbox no. 2579 | 136330 | POA | 1 | 0 |
|
|
| 2 | 3rd speed gearUntil gearbox no. 2578 | 123120 | POA | 1 | 0 |
|
|
| 3 | Pin for reverse idle gear | 109768 | POA | 1 | 0 |
|
|
| 4 | Reverse idle gearUntil gearbox no. 2578 | 119804 | POA | 1 | 0 |
|
|
| 4 | Reverse idle gearStarting from gearbox no. 2579 | 136340 | POA | 1 | 0 |
|
|
| 5 | 4th speed gearUntil gear box no. 2578 | 132146 | POA | 1 | 0 |
|
|
| 5 | 4th speed gearStarting from gearbox no. 2579 | 136344 | POA | 1 | 0 |
|
|
| 6 | 5th speed gearUntil gearbox no. 2578 | 132154 | POA | 1 | 0 |
|
|
| 6 | 5th speed gearStarting from gearbox no. 2579 to gearbox no. 3657 5th speed gear | 136345 | POA | 1 | 0 |
|
|
| 6 | 5th speed gearStarting from gearbox no. 3658 | 140209 | POA | 1 | 0 |
|
|
| 7 | Center roller bearing | 103030 | POA | 1 | 0 |
|
|
| 8 | 5th speed straight race | 107499 | 189.04 | 1 | 0 |
|
|
| 9 | Spacer | 110173 | POA | 1 | 0 |
|
|
| 10 | 1st speed gearUntil gearbox no. 2578 | 119792 | POA | 1 | 0 |
|
|
| 10 | 1st speed gearStarting frdm gearbox no. 3658 | 140193 | POA | 1 | 0 |
|
|
| 10 | 1st speed gearStarting from gearbox no. 2579 to gearbox no. 3657 | 136328 | POA | 1 | 0 |
|
|
| 11 | 2nd speed gearUntil gearbox no. 2578 | 119793 | POA | 1 | 0 |
|
|
| 11 | 2nd speed gearStarting from gearbox no. 2579 to gearbox no. 3657 | 136329 | POA | 1 | 0 |
|
|
| 11 | 2nd speed gearStarting from gearbox no. 3658 | 140195 | POA | 1 | 0 |
|
|
| 12 | Reverse gear Starting from gearbox no. 2579 | 136333 | POA | 1 | 0 |
|
|
| 12 | Reverse gearUntil, gearbox no. 2578 | 119797 | POA | 1 | 0 |
|
|
| 13 | Double row roller cage for 5th gear | 109002 | POA | 1 | 0 |
|
|
| 14 | Bearing axle side To exhaustion use no. 103990 | 126234 | POA | 1 | 0 |
|
|
| 15 | Front ring nut | 104713 | POA | 1 | 0 |
|
|
| 16 | Bearing stop ring | 105765 | POA | 1 | 0 |
|
|
| 17 | Rear ring nut | 105764 | POA | 1 | 0 |
|
|
| 18 | Bearing lock wastier | 104731 | POA | 2 | 0 |
|
|
| 19 | Front bearing | 103042 | POA | 1 | 0 |
|
|
| 20 | Shim | 100703 | POA | 2 | 0 |
|
|
| 21 | Roller cage for reverse gear | 104734 | 9.15 | 2 | 0 |
|
|
| 22 | Grub screw | 103035 | POA | 1 | 0 |
|
|
| 23 | Bolt | 10903221 | POA | 1 | 0 |
|
|
| 24 | Nut | 15896221 | POA | 1 | 0 |
|
|
| 25 | Washer | 106850 | 0.35 | 1 | 0 |
|
|
| 26 | Syncronize body | 106046 | 563.60 | 1 | 0 |
|
|
| 27 | Spring ring for insert | 108363 | 77.49 | 2 | 0 |
|
|
| 28 | Synchromesh ring | 131799 | POA | 1 | 0 |
|
|
| 29 | Synchronizer insert | 126201 | POA | 3 | 0 |
|
|
| 30 | Synchronizer sleeve | 131801 | POA | 1 | 0 |
|
|
| 31 | Para&ll pin | 109725 | POA | 1 | 0 |
|
|
| 32 | 4th speed roller cage | 107525 | 13.92 | 1 | 0 |
|
|
| 33 | 4th speed roller race | 107524 | 203.75 | 1 | 0 |
|
|
| 34 | Seal ring | 109724 | POA | 1 | 0 |
|
