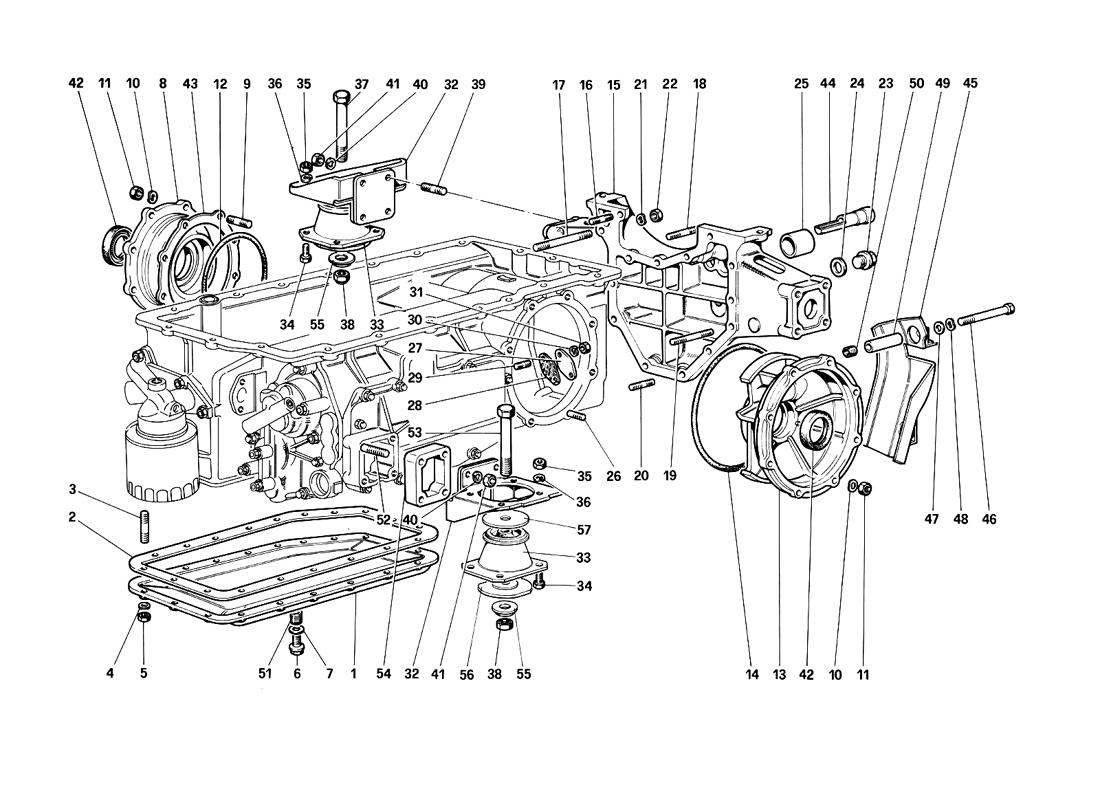

Ferrari / Testarossa (1990) / 031 - Gearbox - Mounting and Covers

Go to order form
Diagram # Name Part # Fitted
Quantity
Quantity Select
1 Oil sump cover 109436 1
2 GasketWithout Amianthus 146189 1
2 GasketWith Amianthus 104674 1
3 Stud 13541121 18
4 Washer 11197771 18
5 Nut 15896221 18
6 Engine oil drain plug 103974 1
7 Gasket 10257060 1
8 Differential R.H. side cover 125459 1
9 Stud 13546521 8
10 Washer 12601471 16
11 Nut 12164721 16
12 Seal ring 103017 1
13 Differential R.H. side cover 109629 1
14 Seal ring 109640 1
15 Intermediate cover 109603 1
16 Stud 13543321 5
17 Stud 13970821 2
18 Stud 13544141 2
19 Stud 13544421 3
20 Stud 13543421 4
21 Washer 12601371 16
22 Nut 16100821 16
23 Oil level inspection plug 10275001 1
24 Gasket 10213400 1
25 Bushing between interm. body and clutch housing 109335 1
26 Stud 13546321 8
27 Range for oil ports 104772 1
28 Gasket Without Amianthus 146190 1
28 GasketWith Amianthus 104773 1
29 Stud 11500121 2
30 Washer 10516471 2
31 Nut 15896221 2
32 Engine support 105642 4
33 Rubber pad complete 125485 4
34 Bolt 15970621 16
35 Nut 12164711 16
36 Washer 106853 16
37 Rear pads security bolt 11369621 2
38 Nut 12575911 4
39 Stud 13546321 8
40 Washer 10516871 16
41 Nut 12164721 16
42 R.H. seal ring on side coversAfter exhaustion no. 125077 133628 1
42 R.H. and LH. seal ring on side coversUntil exhaustion 125077 2
42 L.H. seal ring on side coversAfter exhaustion no. 125077 141509 1
43 Spacer on R.H. side cover, thickness 1,8 mm. 103430 1
43 Spacer on R.H. side cover, thickness 2,0 mm. 103431 1
43 Spacer on R.H. side cover, thickness 1,6 mm. 103429 1
43 Spacer on R.H. side cover, thickness 1,4 mm. 103428 1
43 Spacer on R.H. side cover, thickness 1,2 mm. 103427 1
43 Spacer on R.H. side cover, thickness 1,7 mm. 130990 1
43 Spacer on R.H. side cover, thickness 1,9 mm. 130991 1
43 Spacer on R.H. side cover, thickness 1,3 mm. 130988 1
43 Spacer on R.H. side cover, thickness 1,5 mm. 130989 1
43 Spacer on R.H. side cover, thickness 1,638 mm. 103232 1
44 Oil pipe 109339 1
45 Oil conveyor 109683 1
46 Screw 11032321 2
47 Washer 109684 2
48 Washer 106850 2
49 Conveyor supporting stud 109682 2
50 Heli-coil 13524170 2
51 Heli-coil 111352 1
52 Stud 13546921 8
53 Front pads securing bolt 11369621 2
54 Spacer for pads support 107530 2
55 Washer securing front rubber pads 124731 4
56 Lower plate 130972 4
57 Upper plate 130973 4
