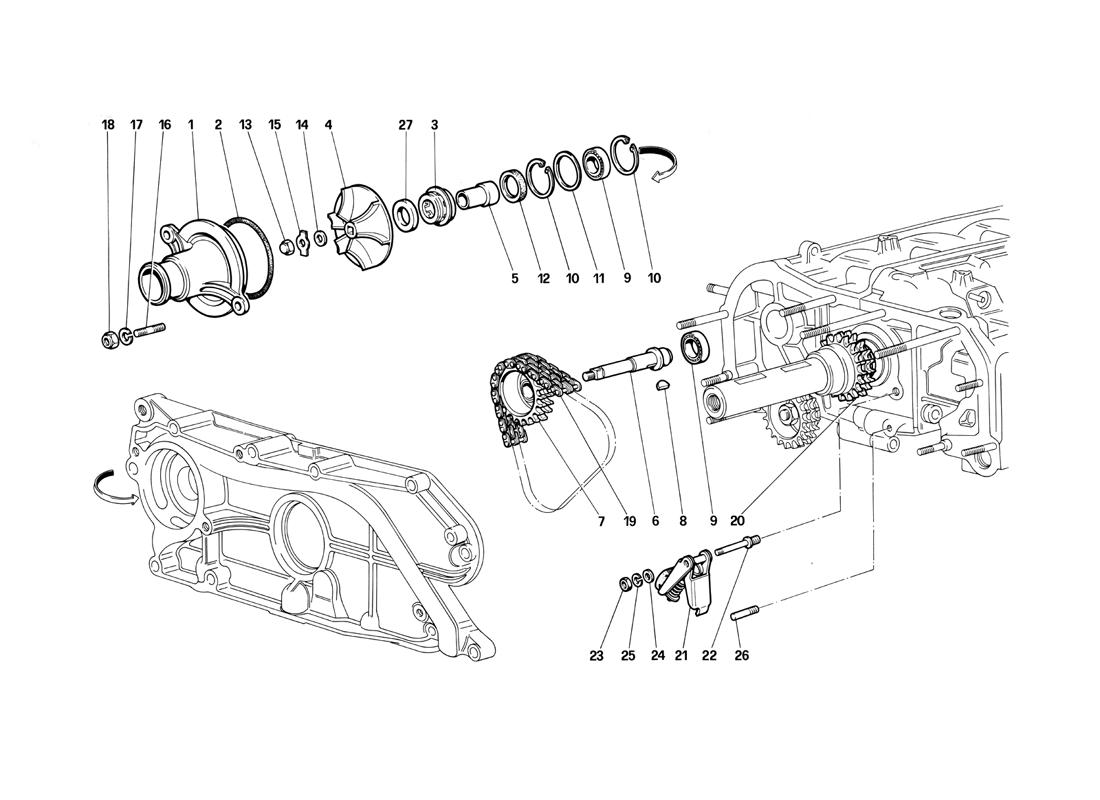

Ferrari / Testarossa (1990) / 026 - Water Pump

Go to order form
Diagram # Name Part # Fitted
Quantity
Quantity Select
1 Water pump cover 121012 1
2 Seal ring 101023 1
3 Seal ringStarting engine no. 20821 183759 1
3 Seal ringUntil engine no. 20820 120948 1
4 ImpellerStarting engine no. 20821 130930 1
4 ImpellerUntil engine no. 20820 120770 1
5 SpacerUntil engine no. 20820 121066 1
5 SpacerStarting engine no. 20821 130931 1
6 SpindleStarting engine no. 20821 130929 1
6 SpindleUntil engine no. 20820 121065 1
7 Driven gear 121064 1
8 Feather key 10202320 1
9 BearingIn alternative use no. 133900 133899 2
10 Seeger ring 11059476 2
11 Spring washer 121084 1
12 Seal ring 121165 1
13 Cap nut 100436 1
14 Washer 10730321 1
15 Safety plate 100434 1
16 Stud 13541021 2
17 Washer 12601271 2
18 Nut 102741 2
19 Water and oil pumps control belt 133065 1
20 Water and oil pumps control gear 121063 1
21 Belt stretcher 114329 1
22 Belt stretcher supporting pin 121269 1
23 Nut 10720121 1
24 Tab washer 10730121 1
25 Washer 106850 1
26 Belt stretcher securing pin 14604670 1
27 120948 Backplate for ring For ring no. 120948 121553 1
