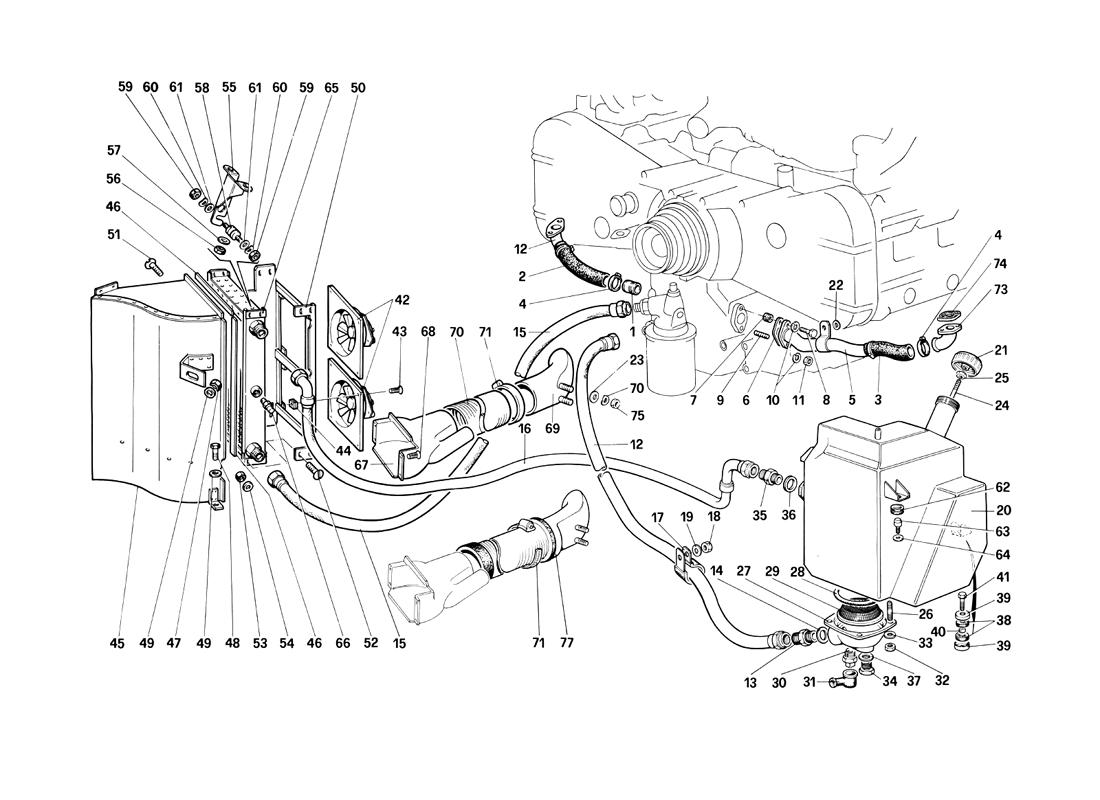

Ferrari / Testarossa (1990) / 022 - Lubrication
Go to order form
| Diagram # | Name | Part # | Price | Fitted Quantity |
Quantity Available |
Quantity | Select |
|---|---|---|---|---|---|---|---|
| 1 | Union | 104561 | POA | 1 | 0 |
|
|
| 2 | Sleeve | 122828 | POA | 1 | 0 |
|
|
| 3 | Sleeve | 122829 | POA | 1 | 0 |
|
|
| 4 | Clamp | 12173090 | POA | 4 | 0 |
|
|
| 5 | L.H. cyl. head oil exhaust pipe | 125900 | POA | 1 | 0 |
|
|
| 6 | Gasket With Amianthus | 104558 | 1.18 | 1 | 0 |
|
|
| 6 | GasketWithout Amianthus | 134962 | POA | 1 | 0 |
|
|
| 7 | Heli-coil on gearbox casing | 13525570 | POA | 1 | 0 |
|
|
| 8 | Screw | 10902321 | POA | 1 | 0 |
|
|
| 9 | Stud | 11500221 | POA | 1 | 0 |
|
|
| 10 | Washer | 10516471 | POA | 2 | 0 |
|
|
| 11 | Nut | 15896221 | POA | 1 | 0 |
|
|
| 12 | Hose from reservoir to pump | 125475 | POA | 1 | 0 |
|
|
| 13 | Union | 110203 | POA | 2 | 0 |
|
|
| 14 | Gasket | 10303460 | POA | 2 | 0 |
|
|
| 15 | Hose from pump to radiator | 124169 | POA | 1 | 0 |
|
|
| 16 | Hose from radiator to reservoir | 125903 | POA | 1 | 0 |
|
|
| 17 | Clamp | 106195 | 38.72 | 1 | 0 |
|
|
| 18 | Nut | 12574211 | POA | 1 | 0 |
|
|
| 19 | Washer | 14496401 | POA | 1 | 0 |
|
|
| 20 | Oil reservoir | 125517 | POA | 1 | 0 |
|
|
| 21 | Plug | 139648 | POA | 1 | 0 |
|
|
| 22 | Washer | 14496521 | POA | 1 | 0 |
|
|
| 23 | Washer | 12643701 | POA | 4 | 0 |
|
|
| 24 | Oil dip stick | 139646 | POA | 1 | 0 |
|
|
| 25 | Nut | 15896211 | POA | 1 | 0 |
|
|
| 26 | Stud | 11500421 | POA | 4 | 0 |
|
|
| 27 | Oil suction fan | 125473 | POA | 1 | 0 |
|
|
| 28 | OR ring | 125521 | POA | 1 | 0 |
|
|
| 29 | Oil suction filter | 100332 | POA | 1 | 0 |
|
|
| 30 | Oil thermistor | 104628 | 80.11 | 1 | 0 |
|
|
| 31 | Protection (Jap | 107003 | 6.50 | 1 | 0 |
|
|
| 32 | Selflocking nut | 12574211 | POA | 4 | 0 |
|
|
| 33 | Washer | 12601271 | POA | 4 | 0 |
|
|
| 34 | Plug | 10300711 | POA | 1 | 0 |
|
|
| 35 | Union | 109371 | POA | 1 | 0 |
|
|
| 36 | Gasket | 10264660 | POA | 1 | 0 |
|
|
| 37 | Gasket | 10257060 | POA | 1 | 0 |
|
|
| 38 | Rubber bushing | 107978 | 10.20 | 4 | 0 |
|
|
| 39 | Cup | 107979 | 11.95 | 4 | 0 |
|
|
| 40 | Bush | 107980 | 6.19 | 2 | 0 |
|
|
| 41 | Screw | 123029 | POA | 2 | 0 |
|
|
| 42 | Electric fan motor | 131510 | POA | 2 | 0 |
|
|
| 43 | Screw | 15688078 | POA | 8 | 0 |
|
|
| 44 | Clip | 60674700 | POA | 13 | 0 |
|
|
| 45 | Air conveyor | 124180 | POA | 1 | 0 |
|
|
| 46 | Self-adhesive gasket | 124200 | POA | 1 | 0 |
|
|
| 47 | Nut | 15896221 | POA | 1 | 0 |
|
|
| 48 | Screw | 10902321 | POA | 1 | 0 |
|
|
| 49 | Washer | 106850 | 0.35 | 2 | 0 |
|
|
| 50 | Electric fan hood | 124181 | POA | 1 | 0 |
|
|
| 51 | Screw | 15688008 | POA | 2 | 0 |
|
|
| 52 | Screw | 10902121 | POA | 1 | 0 |
|
|
| 53 | Nut | 15896221 | POA | 1 | 0 |
|
|
| 54 | Washer | 106850 | 0.35 | 1 | 0 |
|
|
| 55 | Bracket | 123805 | POA | 1 | 0 |
|
|
| 56 | Nut | 12574221 | POA | 2 | 0 |
|
|
| 57 | Washer | 12643701 | POA | 2 | 0 |
|
|
| 58 | Vibration-damping pad | 102947 | POA | 3 | 0 |
|
|
| 59 | Nut | 15896221 | POA | 6 | 0 |
|
|
| 60 | Washer | 106850 | 0.35 | 6 | 0 |
|
|
| 61 | Washer | 12643701 | POA | 8 | 0 |
|
|
| 62 | Fair-lead | 10397480 | POA | 1 | 0 |
|
|
| 63 | Pin | 125708 | POA | 1 | 0 |
|
|
| 64 | Washer | 108242 | POA | 1 | 0 |
|
|
| 65 | Oil radiator | 123276 | POA | 1 | 0 |
|
|
| 66 | Thermal switch for fan | 123277 | POA | 1 | 0 |
|
|
| 67 | R.H. conveyor For brakes | 124191 | POA | 1 | 0 |
|
|
| 67 | L.H. conveyor for brakes | 124192 | POA | 1 | 0 |
|
|
| 68 | Screw | 15688007 | POA | 4 | 0 |
|
|
| 69 | Rear conveyorUntil car no. 81892 | 124943 | POA | 2 | 0 |
|
|
| 70 | LH.hoseUntil car no. 81892 | 124941 | POA | 1 | 0 |
|
|
| 70 | R.H.hoseUntil car no. 81892 | 124940 | POA | 1 | 0 |
|
|
| 71 | Clamp | 12174990 | POA | 4 | 0 |
|
|
| 72 | R.H. cylinder head oil exhaust port | 122826 | POA | 1 | 0 |
|
|
| 73 | L.H. cylinder head oil exhaust port | 122827 | POA | 1 | 0 |
|
|
| 74 | Gasket Without Amianthus | 134953 | POA | 2 | 0 |
|
|
| 74 | GasketWith Amianthus | 122823 | POA | 2 | 0 |
|
|
| 75 | Nut | 15896221 | POA | 4 | 0 |
|
|
| 76 | Washer | 106850 | 0.35 | 4 | 0 |
|
|
| 77 | L.H. rear conveyorStarting from car no. 81893 | 139740 | POA | 1 | 0 |
|
|
| 77 | R.H. rear conveyorStarting from car no. 81893 | 139739 | POA | 1 | 0 |
|
