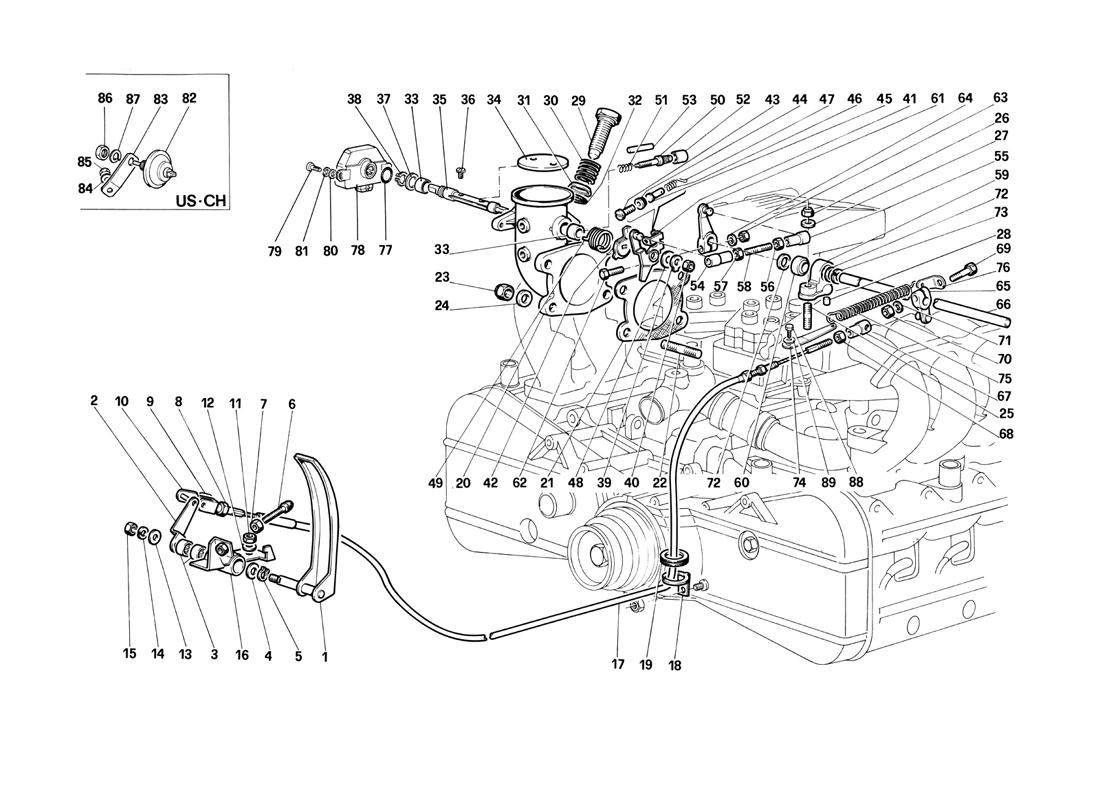

Ferrari / Testarossa (1990) / 018 - Throttle Control

Go to order form
Diagram # Name Part # Fitted
Quantity
Quantity Select
1 Accelerator pedal 115393 1
2 Lever 122184 1
3 Roller cage 101677 2
4 Shim 108576 1
5 Seeger ring 11066076 1
6 Adjusting screw 105232 1
7 Nut 16102311 2
8 Locknut 10725911 1
9 Fork 100655 1
10 Pin with strap 100656 1
11 Nut 16100811 2
12 Washer 106852 2
13 Spacer 10519601 1
14 Washer 106852 1
15 Nut 16100811 1
16 Accelerator pedal support 115396 1
17 CableAfter exhaustion use no. 127445 123190 1
18 Cable supporting bracket 124220 1
19 Wire carrier 10396680 1
20 L.H. throttle body, completeFor B1 and CAT. 123017 1
20 L.H. throttle body, completeFor US and CH 127140 1
20 R.H. throttle body, completeFor B1 and CAT. 122892 1
20 R.H. throttle body, completeFor US and CH 127139 1
21 Gasket - With Amianthus 121123 2
21 Gasket - Without Amianthus 134950 2
22 Stud 13541121 8
23 Nut 12575411 8
24 Washer 12601271 8
25 Stud 13543421 2
26 Nut 16104411 2
27 Washer 12601371 2
28 Dowel 125716 2
29 Air adjusting screw 119308 2
30 Spring 113571 2
31 Cap 115204 2
32 Grommet 114919 2
33 Bushing (Not supplied) 118128 4
34 Throttle (Not supplied) 113563 2
35 R.H. throttle shaft (Not supplied) 122895 2
35 L.H. throttle shaft (Not supplied) 122894 2
36 Screw 115361 4
37 L.H. washer 128944 1
37 R.H. washer 121835 1
38 L.H. seeger ring 11065976 1
38 R.H. seeger ring 104182 1
39 Lock washer 113566 2
40 Nut 122897 2
41 L.H. throttle control lever 122906 1
41 R.H. throttle control lever 122903 1
42 R.H. driven lever 122902 1
42 L.H. driven lever 122905 1
43 Screw 122909 2
44 Nut 122910 2
45 PinAfter exhaustion use no. 141130 122913 2
46 Spring 122914 2
47 Cotter pinAfter exhaustion use no. 141129 122915 2
48 Spacer 122900 2
49 L.H. throttle return spring 122911 1
49 R.H. throttle return spring 122912 1
50 Adjusting screw 114366 2
51 Spring 107824 2
52 Protection cup 111182 2
53 Check pin 114367 2
54 Head, R.hf. thread 105617 2
55 Head. L.H. thread 105619 2
56 Nut. L.H. thread 105586 2
57 Nut. R.H. thread 15896411 2
58 Tie rod 121091 2
59 Support for accelerator control rod 121053 2
60 Ball joint 107620 2
61 L.H. lever on accelerator control rod 126029 1
61 R.H. lever on accelerator control rod 121081 1
62 Screw 125506 2
63 Nut 16100811 2
64 Washer 106852 2
65 Lever for cable accelerator 121475 1
66 Realy shaft 121474 1
67 Head, R.H. thread 105617 1
68 Nut 15896411 1
69 Screw 16043821 1
70 Nut 16100811 1
71 Washer 106852 1
72 Spacer 121477 2
73 Seeger ring 11066076 1
74 Fixing spring plate 122818 1
75 Spring for lever 102951 1
76 Fixing spring plate 125044 1
77 Seal ring 116736 1
78 MicroswitchFor US and CH 121517 1
78 MicroswitchFor B1 and CAT. 131403 1
79 Screw 10444521 2
80 Washer 10519201 2
81 Washer 106848 2
82 Differential pressure switch 121748 1
83 Bracket 125845 1
84 Washer 106850 1
85 Nut 10725911 1
86 Nut 10791211 1
87 Washer 106854 1
88 Screw 10979411 1
89 Washer 12601271 1
