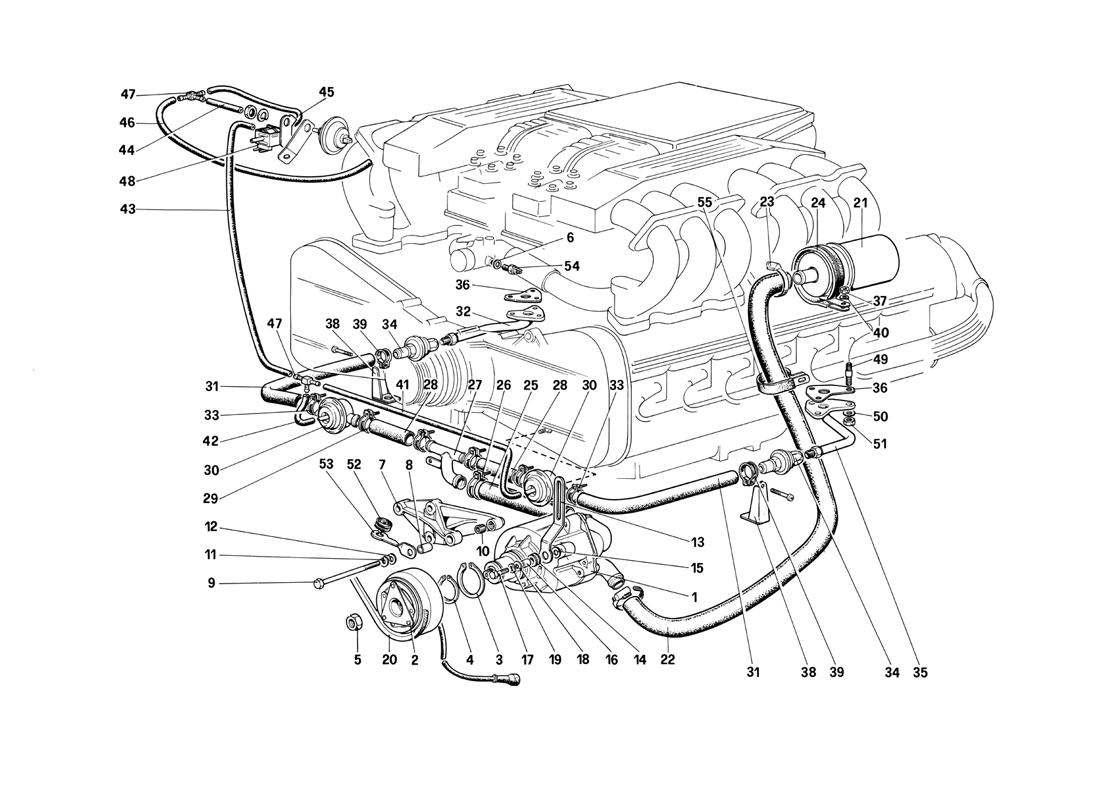

Ferrari / Testarossa (1990) / 014 - Secondary Air Pump and Lines - For US and CH88
Go to order form
| Diagram # | Name | Part # | Price | Fitted Quantity |
Quantity Available |
Quantity | Select |
|---|---|---|---|---|---|---|---|
| 1 | Air pump complete | 134082 | POA | 1 | 0 |
|
|
| 2 | Electromagnetic joint | 130443 | POA | 1 | 0 |
|
|
| 3 | Seeger ring | 134078 | POA | 1 | 0 |
|
|
| 4 | Seeger ring | 134079 | POA | 1 | 0 |
|
|
| 5 | Nut | 10791311 | POA | 1 | 0 |
|
|
| 6 | Gasket | 10260060 | POA | 1 | 0 |
|
|
| 7 | Lower support | 125254 | POA | 1 | 0 |
|
|
| 8 | Bush | 125474 | POA | 1 | 0 |
|
|
| 9 | Screw | 16045421 | POA | 1 | 0 |
|
|
| 10 | Heli-coH | 13522270 | POA | 1 | 0 |
|
|
| 11 | Washer | 106852 | 0.36 | 1 | 0 |
|
|
| 12 | Washer | 12646701 | POA | 1 | 0 |
|
|
| 13 | Bracket | 125255 | POA | 1 | 0 |
|
|
| 14 | Rubber for bracket | 108282 | 0.66 | 1 | 0 |
|
|
| 15 | Washer | 108292 | POA | 1 | 0 |
|
|
| 16 | Spacer | 125523 | POA | 1 | 0 |
|
|
| 17 | Screw | 16043821 | POA | 1 | 0 |
|
|
| 18 | Washer | 14496507 | POA | 1 | 0 |
|
|
| 19 | Washer | 12601371 | POA | 1 | 0 |
|
|
| 20 | Air pump belt | 125772 | POA | 1 | 0 |
|
|
| 21 | Air filter | 125279 | POA | 1 | 0 |
|
|
| 22 | Pipe | 126371 | POA | 1 | 0 |
|
|
| 23 | Clamp | 12179990 | POA | 2 | 0 |
|
|
| 24 | Bracket | 126353 | POA | 1 | 0 |
|
|
| 25 | Pipe | 126340 | POA | 1 | 0 |
|
|
| 26 | Clamp | 12179990 | POA | 2 | 0 |
|
|
| 27 | 3 way union | 125777 | POA | 1 | 0 |
|
|
| 28 | Pipe | 126341 | POA | 2 | 0 |
|
|
| 29 | Clamp | 12179990 | POA | 4 | 0 |
|
|
| 30 | Cut-off valve | 121751 | POA | 2 | 0 |
|
|
| 31 | Pipe cut-off / check valve | 125776 | POA | 2 | 0 |
|
|
| 32 | Right pipeStarting engine no. 20169 | 144777 | POA | 1 | 0 |
|
|
| 32 | Right pipeUntil engine no. 20168 | 125318 | POA | 1 | 0 |
|
|
| 33 | Clamp | 12179990 | POA | 2 | 0 |
|
|
| 34 | Check-valve | 121769 | POA | 2 | 0 |
|
|
| 35 | Left pipeUntil engine no. 20168 | 125319 | POA | 1 | 0 |
|
|
| 35 | Left pipeStarting engine no. 20168 | 144778 | POA | 1 | 0 |
|
|
| 36 | Gasket | 146194 | POA | 2 | 0 |
|
|
| 37 | Nut | 12574211 | POA | 1 | 0 |
|
|
| 38 | Bracket | 126339 | POA | 2 | 0 |
|
|
| 39 | Clamp | 10169290 | POA | 2 | 0 |
|
|
| 40 | Washer | 12601271 | POA | 1 | 0 |
|
|
| 41 | Pipe | 118501 | POA | 1 | 0 |
|
|
| 42 | Pipe | 122759 | POA | 1 | 0 |
|
|
| 43 | Pipe | 122760 | POA | 1 | 0 |
|
|
| 44 | Pipe | 121831 | POA | 1 | 0 |
|
|
| 45 | Pipe | 121828 | POA | 1 | 0 |
|
|
| 46 | Pipe | 122761 | POA | 1 | 0 |
|
|
| 47 | 3 way union | 121793 | POA | 2 | 0 |
|
|
| 48 | Electrovalve | 121782 | POA | 1 | 0 |
|
|
| 49 | Stud | 13541021 | POA | 6 | 0 |
|
|
| 50 | Washer | 106850 | 0.35 | 6 | 0 |
|
|
| 51 | Nut | 115201 | POA | 6 | 0 |
|
|
| 52 | Fair lead | 10396680 | POA | 1 | 0 |
|
|
| 53 | Bracket | 105625 | 2.21 | 1 | 0 |
|
|
| 54 | Water temperature sensor | 125878 | POA | 1 | 0 |
|
|
| 55 | Clamp | 109179 | POA | 2 | 0 |
|
