Ferrari / Testarossa (1990) / 013 - Fuel Injection System - Valves and Lines

Go to order form

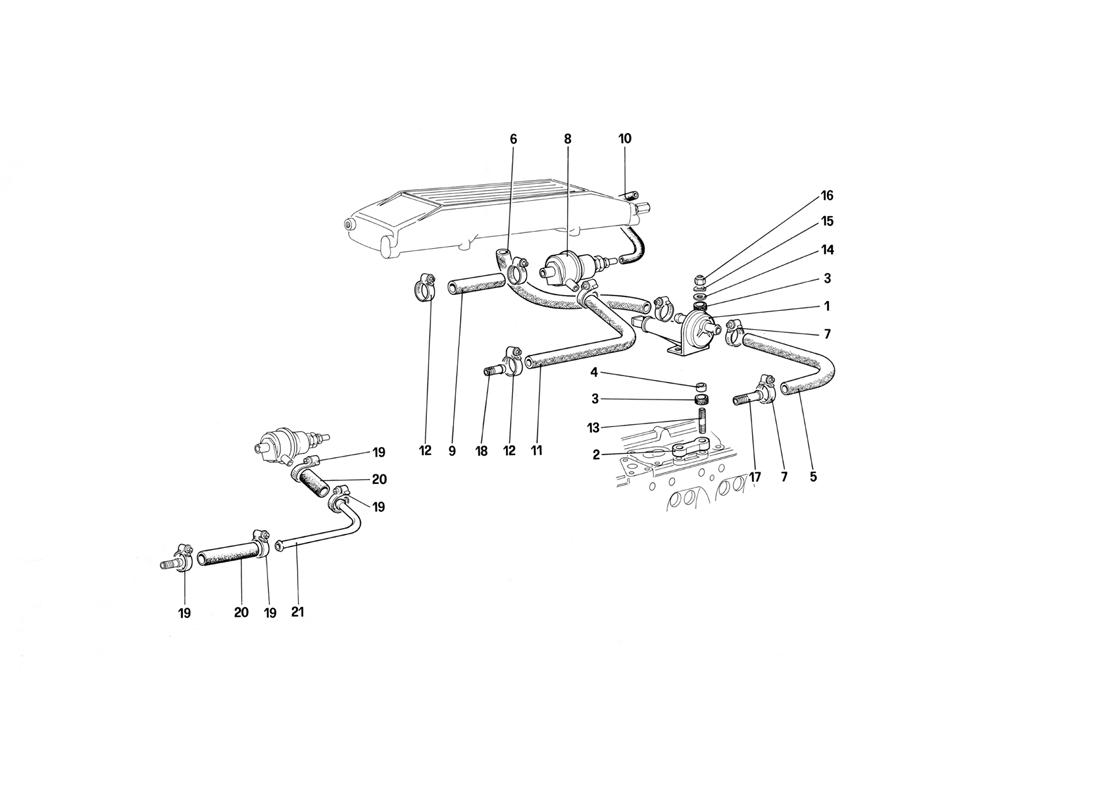

Diagram # Name Part # Fitted
Quantity
Quantity Select
1 Auxiliary air valveFor CAT. use no. 146557 125880 2
2 Support 125874 2
3 Small rubber pad 126348 8
4 Spacer 126349 4
5 Pipe 125773 2
6 Pipe to cold start injector 125771 2
7 Clamp 12179590 4
8 By-pass vacuum valve Not for US and CH 115741 2
9 Pipe Not for US and CH 127301 2
10 Vacuum pipe Not for US and CH 115147 2
11 PipeNot for US and CH 133558 2
12 ClampNot for US and CH 12179490 4
13 Stud 11501021 4
14 Washer 14496401 4
15 Washer 12601271 4
16 Selflocking nut 12574211 4
17 Union 113636 2
18 UnionNot for US and CH 112030 2
19 Clamp Until exhaustion - Not for US - CH and CAT. 12179490 8
20 Shaped pipe Until exhaustion - Not for US - CH and CAT. 127562 4
21 PipeUntil exhaustion - Not for US - CH and CAT. 115227 2
