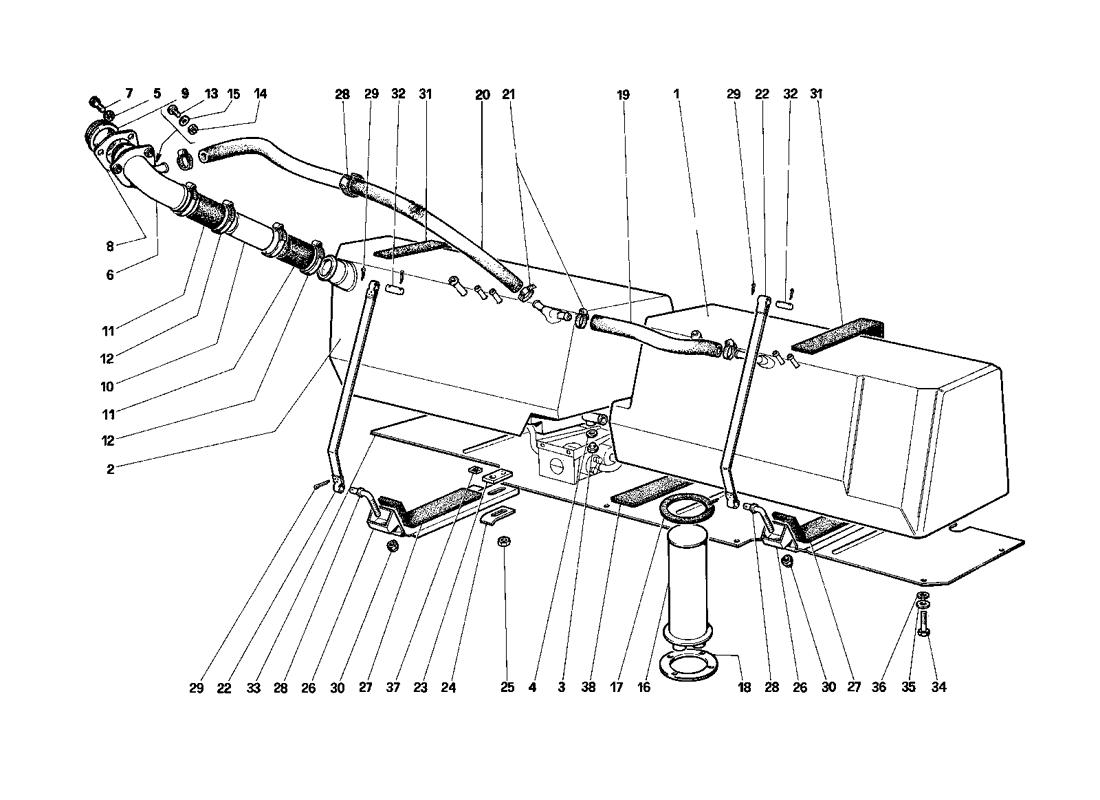

Ferrari / Testarossa (1990) / 009 - Fuel Tanks - For US - SA and CH88
Go to order form
| Diagram # | Name | Part # | Price | Fitted Quantity |
Quantity Available |
Quantity | Select |
|---|---|---|---|---|---|---|---|
| 1 | Right fuel tank | 125848 | POA | 1 | 0 |
|
|
| 2 | Left fuel tank | 123872 | POA | 1 | 0 |
|
|
| 3 | Fuel drain plug | 10300771 | POA | 1 | 0 |
|
|
| 4 | Gasket | 10278650 | POA | 1 | 0 |
|
|
| 5 | Washer | 12601271 | POA | 3 | 0 |
|
|
| 6 | Fuel fillerFor SA use no. 127018 | 123896 | POA | 1 | 0 |
|
|
| 7 | Screw | 14064511 | POA | 3 | 0 |
|
|
| 8 | Gasket | 123897 | POA | 1 | 0 |
|
|
| 9 | Filler capAfter exhaustion use no. 142790 | 113401 | POA | 1 | 0 |
|
|
| 10 | Pipe | 122795 | POA | 1 | 0 |
|
|
| 11 | Sleeve | 115677 | POA | 2 | 0 |
|
|
| 12 | Clamp | 12174790 | POA | 4 | 0 |
|
|
| 13 | Screw | 10902221 | POA | 1 | 0 |
|
|
| 14 | Nut | 12574211 | POA | 1 | 0 |
|
|
| 15 | Washer | 12646601 | POA | 1 | 0 |
|
|
| 16 | Control for fuel level gaugeFrom car no. 67547 | 132134 | POA | 1 | 0 |
|
|
| 16 | Control for fuel level gaugeUntil car no. 67545 | 122621 | POA | 1 | 0 |
|
|
| 17 | Gasket With part no. 122621 | 116792 | POA | 1 | 0 |
|
|
| 17 | Gasket With part no. 132134 | 132132 | POA | 1 | 0 |
|
|
| 18 | Gauge securing ring nut | 121435 | POA | 1 | 0 |
|
|
| 19 | Breather hose | 125032 | POA | 1 | 0 |
|
|
| 20 | Breather hose | 120469 | POA | 1 | 0 |
|
|
| 21 | Clamp | 12179590 | POA | 4 | 0 |
|
|
| 22 | Tank securing strap | 122797 | POA | 4 | 0 |
|
|
| 23 | Spacer | 123867 | POA | 4 | 0 |
|
|
| 24 | Small plate | 115734 | POA | 4 | 0 |
|
|
| 25 | Self-locking nut | 12574211 | POA | 8 | 0 |
|
|
| 26 | Tank supporting bracket | 123866 | POA | 4 | 0 |
|
|
| 27 | Shim | 125035 | POA | 4 | 0 |
|
|
| 28 | Tie rod | 127529 | POA | 4 | 0 |
|
|
| 29 | Split pin | 10796401 | POA | 12 | 0 |
|
|
| 30 | Self-locking nut | 16104121 | POA | 4 | 0 |
|
|
| 31 | Shim | 125036 | POA | 8 | 0 |
|
|
| 32 | Pin | 103447 | POA | 4 | 0 |
|
|
| 33 | LHD protection plateAfter exhaustion no. 122800 | 138083 | POA | 1 | 0 |
|
|
| 33 | RHD protection plateAfter exhaustion no. 122800 | 138084 | POA | 1 | 0 |
|
|
| 33 | Tank protection plateAfter exhaustion use 138082 / 138083 / 138084 | 122800 | POA | 1 | 0 |
|
|
| 33 | Central protection plateAfter exhaustion no. 122800 | 138082 | POA | 1 | 0 |
|
|
| 34 | Screw | 10902121 | POA | 11 | 0 |
|
|
| 35 | Flat washer | 12643701 | POA | 11 | 0 |
|
|
| 36 | Spring washer | 106850 | 0.35 | 11 | 0 |
|
|
| 37 | Gaged nut | 60758600 | POA | 4 | 0 |
|
|
| 38 | Shim | 125037 | POA | 4 | 0 |
|
