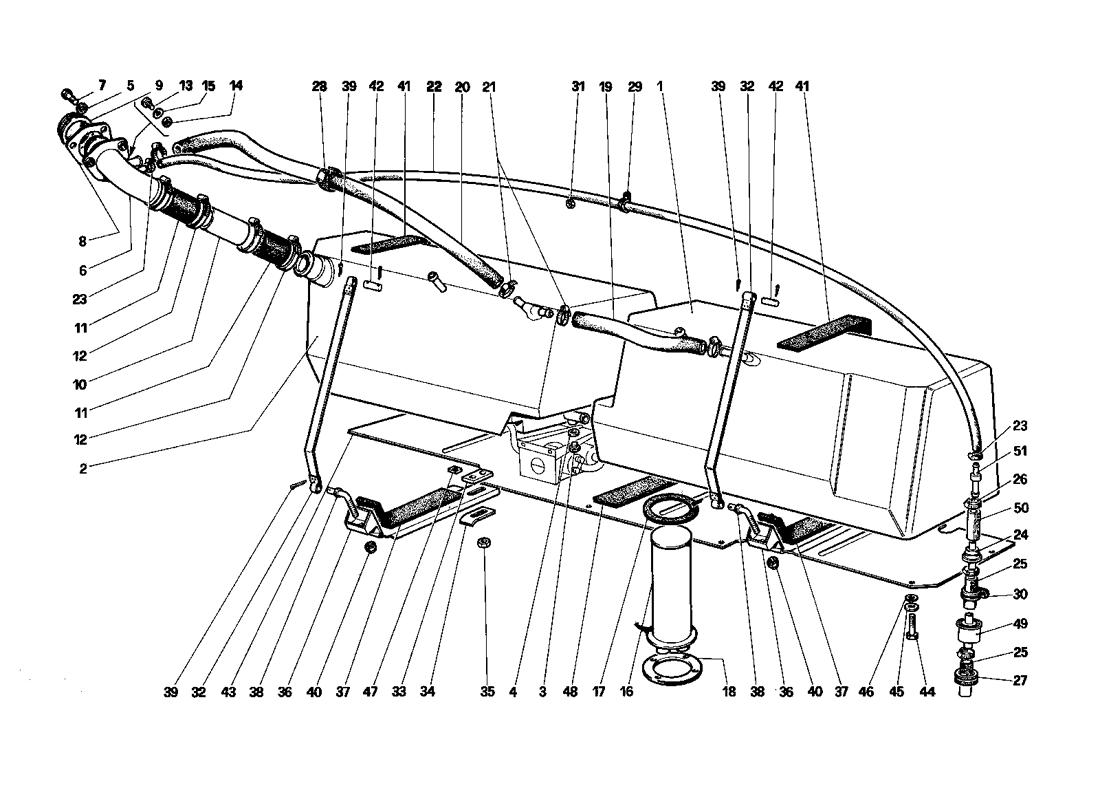

Ferrari / Testarossa (1990) / 008 - Fuel Tanks - Not for US - SA and CH88

Go to order form
Diagram # Name Part # Fitted
Quantity
Quantity Select
1 Right fuel tank Not for CAT. 119139 1
1 Right fuel tank For CAT. 142543 1
2 Left fuel tan 119140 1
3 Fuel drain pli 10300771 1
4 Gasket 10278650 1
5 Washer 12601271 3
6 Fuel filler For CAT. 142119 1
6 Fuel fillerFor C7 132285 1
6 Fuel filleAfter exhaustion use no. 129527 - Not for C7 and CAT. 122793 1
7 Screw 14064511 3
8 Gasket 123897 1
9 Filler capAfter exhaustion use no. 142790 113401 1
10 Pipe 122795 1
11 Sleeve 115677 2
12 Clamp 12174790 4
13 Screw 10902221 1
14 Nut 12574211 1
15 Washer 12646601 1
16 Control for fuel level gaugeFrom car no. 67547 132134 1
16 Control for fuel level gaugeUntil car no. 67545 122621 1
17 Gasket With part no. 122621 116792 1
17 Gasket With part no. 132134 132132 1
18 Gauge securing ring nut 121435 1
19 Breather hose 125032 1
20 Breather hose 120469 1
21 Clamp 12179590 4
22 Breather hose 116851 1
23 Clamp 12179090 1
24 Tank ventilation valve 120444 1
25 Breather hose 116760 2
26 Clamp 12179190 1
27 Wire guide 10396580 1
28 Colson type clamp 105550 1
29 Hose retaining clamp 10441290 4
30 Hose retaining clamp 10441490 1
31 Nut , 12574211 3
32 Tank securing slrap 122797 3
33 Spacer 123867 4
34 Small plate 115734 4
35 Self-locking nut 12574211 4
36 Tank supporting bracket 123866 8
37 Shim 125035 4
38 Tie rod 127529 4
39 Split pin 10796401 4
40 Self-locking nut 16104121 12
41 Shim 125036 4
42 Pin 103447 8
43 Tank protection plate - For LHDAfter exhaustion use 138082 / 138083 / 138084 122800 4
43 Tank protection plate - For RHDUntil exhaustion 124067 1
43 R.H. protection plateAfter exhaustion no. 124067 138086 1
43 R.H. protection plateAfter exhaustion no. 122800 138084 1
43 Central protection plateAfter exhaustion no. 124067 138082 1
43 L.H. protection plateAfter exhaustion no. 124067 138085 1
43 L.H. protection plateAfter exhaustion no. 122800 138083 1
43 Central protection plateAfter exhaustion no. 122800 138082 1
44 Screw 10902121 11
45 Flat washer 12643701 11
46 Spring washer 106850 11
47 Gaged nut 60758600 4
48 Shim 125037 4
49 Silencer 129085 1
50 Sleeve 133337 1
51 Union 133338 1
