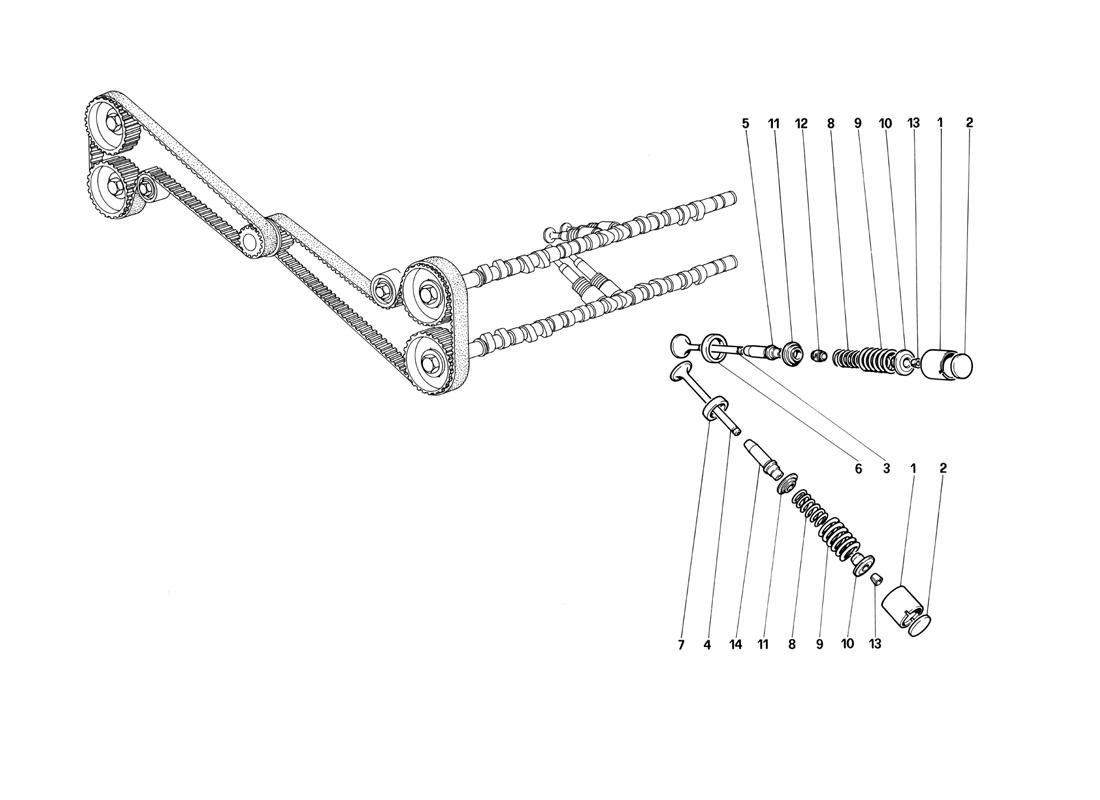

Ferrari / Testarossa (1990) / 006 - Timing System - Valves

Go to order form
Diagram # Name Part # Fitted
Quantity		 Quantity Select
1 Tappet for valve control 117562 48
2 Shim for valve adjustment, thickness 4,00 mm. 117584 48
2 Shim for valve adjustment, thickness 3,40 mm. 117595 48
2 Shim for valve adjustment, thickness 3,25 mm. 117569 48
2 Shim for valve adjustment, thickness 3,35 mm. 117571 48
2 Shim for valve adjustment, thickness 4,35 mm. 117594 48
2 Shim for valve adjustment, thickness 3,40 mm. 117572 48
2 Shim for valve adjustment, thickness 3,45 mm. 117573 48
2 Shim for valve adjustment, thickness 3,50 mm. 117574 48
2 Shim for valve adjustment, thickness 3,55 mm. 117575 48
2 Shim for valve adjustment, thickness 4,45 mm. 117593 48
2 Shim for valve adjustment, thickness 3,65 mm. 117577 48
2 Shim for valve adjustment, thickness 4,10 mm. 117586 48
2 Shim for valve adjustment, thickness 3,75 mm. 117579 48
2 Shim for valve adjustment, thickness 3,85 mm. 117581 48
2 Shim for valve adjustment, thickness 3,30 mm. 117570 48
2 Shim for valve adjustment, thickness 3,95 mm. 117583 48
2 Shim for valve adjustment, thickness 3,40 mm. 117592 48
2 Shim for valve adjustment, thickness 4,05 mm. 117585 48
2 Shim for valve adjustment, thickness 4,15 mm. 117587 48
2 Shim for valve adjustment, thickness 3,60 mm. 117576 48
2 Shim for valve adjustment, thickness 4,30 mm. 117590 48
2 Shim for valve adjustment, thickness 4,25 mm 117589 48
2 Shim for valve adjustment, thickness 3,70 mm. 117578 48
2 Shim for valve adjustment, thickness 4,20 mm. 117588 48
2 Shim for valve adjustment, thickness 4,35 mm. 117591 48
2 Shim for valve adjustment, thickness 3,80 mm. 117580 48
2 Shim for valve adjustment, thickness 4,45 mm. 117596 48
2 Shim for valve adjustment, thickness 3,90 mm. 117582 48
3 Intake valve 120476 24
4 Exhaust valve 120477 24
5 Intake valve guide 117565 24
5 Intake valve guide overized by 0.2 mm. 117566 24
6 Intake valve seat 126212 24
7 Exhaust valve seat 120479 24
8 Valve return inner spring 117558 48
9 Valve return outer spring 117559 48
10 Spring retaining upper cup 117567 48
11 Spring retaining lower cup 117568 48
12 Oil seal for valves guide 119051 48
13 Cotter for valve spring cup 117283 96
14 Exhaust valve guide overized by 0.2 mm. 117566 24
14 Exhaust valve guide 117565 24
