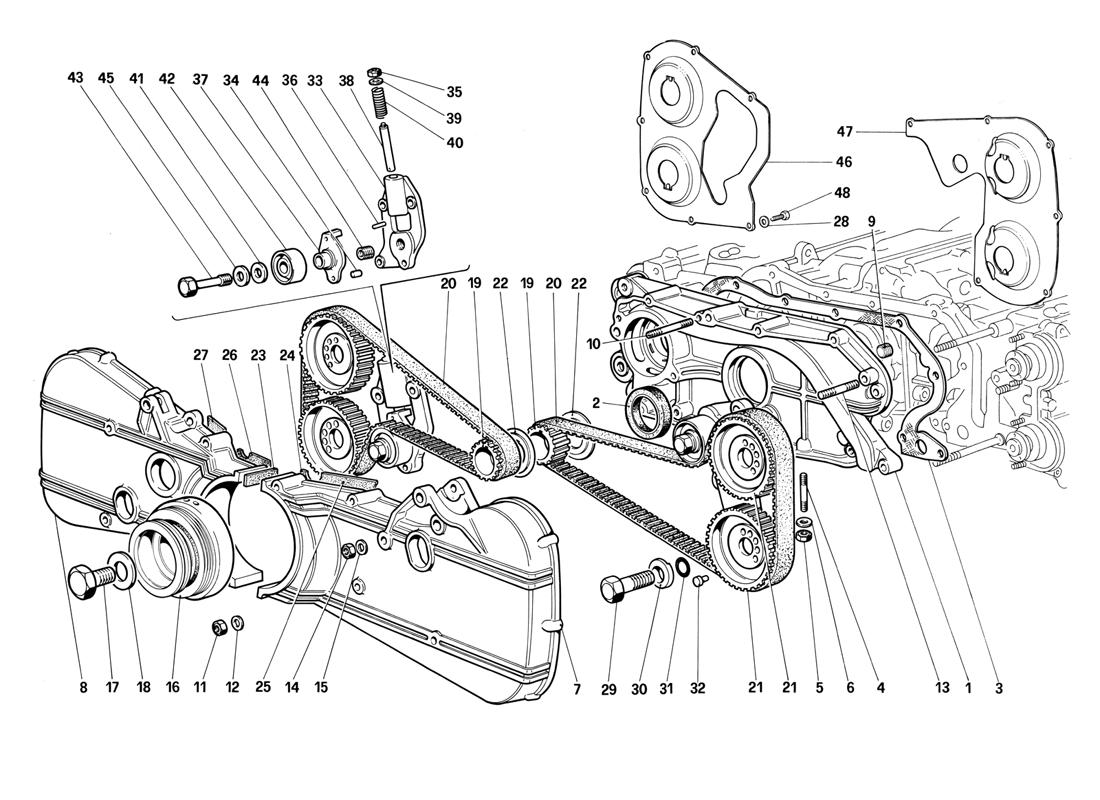

Ferrari / Testarossa (1990) / 005 - Timing System - Controls

Go to order form
Diagram # Name Part # Fitted
Quantity
Quantity Select
1 Front cover, completeWith complete cranckase - Starting engine no. 20821 143102 1
1 Front cover, completeWith complete cranckase - Until engine no. 20820 121433 1
2 Seal ring 121094 1
3 Gasket - With Amianthus 122172 1
3 Gasket - Without Amianthus 134947 1
4 Stud 13449621 3
5 Nut 12575621 3
6 Washer 12601471 1
7 L.H. cover 126068 1
8 R.H. cover 125778 1
9 Plug 127635 1
10 Stud 13544321 3
11 Nut 101139 3
12 Washer 12601371 3
13 Stud 13450421 1
14 Nut 12575611 1
15 Washer 12601471 1
16 DamperFor trapezoidal control belt 125194 1
16 DamperFor "Poli V" control belt 134145 1
17 Screw 100476 1
18 Washer 102775 1
19 Belt control gear 123112 2
20 Timing belt 120731 2
21 Timing belt pulley 123108 4
22 Timing belt lock ring 120733 2
23 Adhesive protection 128029 1
24 Adhesive protection 128030 1
25 Adhesive protection 128031 1
26 Adhesive protection 128032 1
27 Adhesive protection 128033 1
28 Washer 12601171 13
29 ScrewUntil engine no. 21580 16326431 4
29 ScrewStarting engine no. 21581 146450 4
30 Gear retaining washer 114802 4
31 Garter spring 114808 4
32 Drive pin 114803 4
33 Dowel 121044 4
34 Dowel 125717 2
35 Self-locking nut 102948 2
36 Spring pin 13933570 2
37 Belt stretcher support plate 121045 2
38 Spring control pin 121047 2
39 Spring retaining washer 121558 2
40 Spring 121249 2
41 Spacer 111460 2
42 Cambelt Tensioner (PAIR) PT512TR 1
43 Screw 111458 2
44 Heli-coil 13524670 2
45 Washer 102824 2
46 R.H. belt protection plate 123705 1
47 L.H. belt protection plate 123706 1
48 Screw 10977711 13
