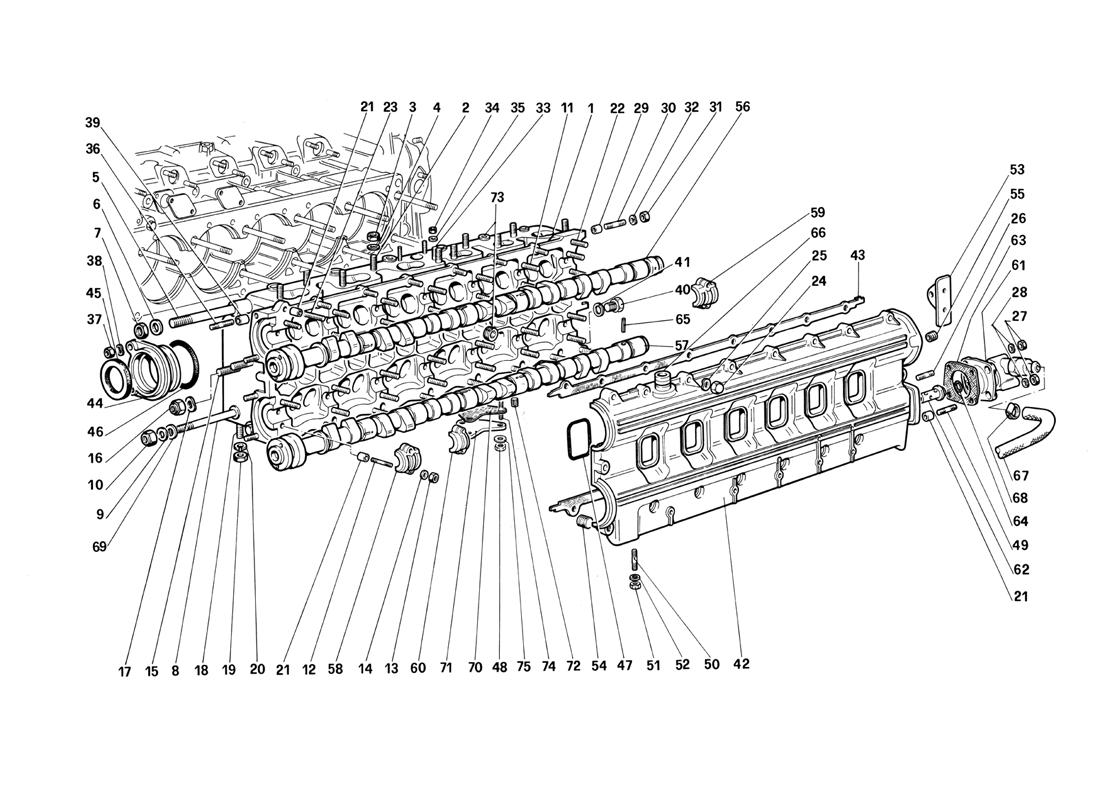

Ferrari / Testarossa (1990) / 004 - Cylinder Head - Left

Go to order form
Diagram # Name Part # Fitted
Quantity
Quantity Select
1 Left cylinder head, complete 123065 1
1 Left cylinder headWith cylinder head no. 123065 123055 1
2 Stud 12354521 10
3 Nut 16100811 10
4 Washer 11194071 10
5 Stud 13953121 1
6 Washer 12601471 1
7 Nut 12575611 1
8 Stud 13970321 1
9 Washer 12604471 1
10 Nut 16104411 1
11 Stud (inner caps) 102735 24
12 Stud (outer caps) 102754 4
13 Nut 15896211 28
14 Washer 11197773 28
15 Stud (belt stretcher) 13543421 2
16 Nut 101139 2
17 Washer 12601371 2
18 Stud 13543521 12
19 NutIn alternative use no. 124525 105938 12
20 WasherFor nut 105938 106851 12
21 Dowel 102725 30
22 Stud for covers 13541321 16
23 Stud on dowel 13541421 2
24 Cap nut 100044 18
25 Washer 12601271 18
26 Vacuum pump securing stud 11500521 2
27 Nut 102741 2
28 Washer 11197771 2
29 Dowel for distributor cap support 102725 2
30 Stud 13541121 2
31 Nut 15896211 2
32 Washer 11197773 2
33 Stud 13541021 3
34 Nut 102741 3
35 Washer 12601271 3
36 Stud 13541121 4
37 Nut 102741 4
38 Washer 12601271 4
39 Dowel 102725 4
40 Water drain plug 10300740 1
41 Gasket 10257060 1
42 Left cylinder head coverWith complete cylinder head 128796 1
43 Gasket - Without Amianthus 134949 1
43 Gasket - With Amianthus 127228 1
44 Front cover 121116 2
45 Sealing ringIn alternative use no. 128260 114639 2
46 Sealing ring 117036 2
47 Sealing ring 127649 6
48 Nut 115201 6
49 Vacuum pump securing stud 11500421 2
50 Stud 11500121 2
51 Nut 15896211 2
52 Washer 12601271 2
53 Bracket 124594 1
54 Plug 10269750 3
55 Heli-coil 13525470 1
56 Left intake camshaft, completeAfter exhaustion use no. 143958 124033 1
57 Left exhaust camshaft, complete 123107 1
58 Front capWith complete cylinder head 114499 2
59 Rear capWith complete cylinder head 114497 2
60 Intermediate capWith complete cylinder head 126811 10
61 Vacuum pump 122737 1
62 Coupling 121054 1
63 Gasket - Without Amianthus 134954 1
63 Gasket - With Amianthus 122781 1
64 OR-ring 105661 1
65 Pin (04) 13938070 1
65 Pin (0 5) 13940270 1
66 Union 102705 1
67 3-way union 125031 1
68 Clamp 12179590 1
69 Washer 112761 1
70 Gasket For B1 146193 2
71 Cover.For B1 127834 2
72 Plug (8 x1,25) 14326150 3
73 Plug 127635 2
74 Stud 13541021 6
75 Washer 106850 6
