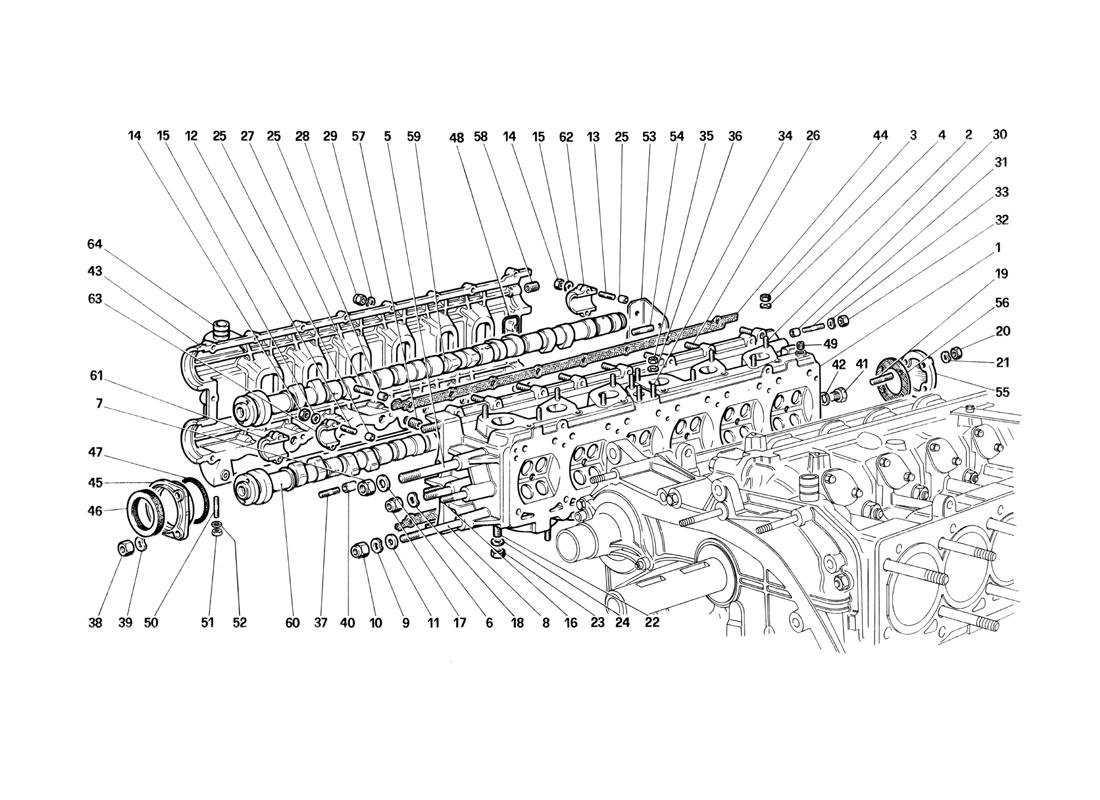

Ferrari / Testarossa (1990) / 003 - Cylinder Head - Right

Go to order form
Diagram # Name Part # Fitted
Quantity
Quantity Select
1 Right cylinder head, complete . 123064 1
1 Right cylinder headWith complete cylinder head 123054 1
2 Stud 12354521 10
3 Nut 16100811 10
4 Washer 11194071 10
5 Stud 13953121 1
6 Washer 12601471 1
7 Nut 12575611 1
8 StudFor US - CH and SA 13970421 1
8 StudFor B1 and CAT. 13970321 1
9 Washer 12604471 1
10 Nut 16104411 1
11 Spring washer 112761 1
12 Stud for inner caps 102735 24
13 Stud for outer caps 102754 4
14 Nut 15896211 28
15 Washer 11197773 28
16 Stud (belt stretcher) 13543421 2
17 Nut 101139 2
18 Washer 12601371 2
19 Stud 13541021 2
20 Nut 101741 3
21 Washer 12601271 3
22 Stud 13543521 12
23 NutIn alternative use no. 124525 105938 12
24 WasherFor nut no. 105938 106852 12
25 Dowel 102725 30
26 Stud for covers 13541321 16
27 Stud on dowel 13541421 2
28 Cap nut 100044 18
29 Washer 12601271 18
30 Dowel for distributer cap support 102725 2
31 Stud 13541121 2
32 Nut 15896211 2
33 Washer 11197773 2
34 Stud 13541021 3
35 Nut 102741 3
36 Washer 12601271 3
37 Stud 13541121 4
38 Nut 102741 4
39 Washer 12601271 4
40 Dowel 102725 4
41 Water drain plug 10300740 1
42 Gasket 10257060 1
43 Right cyl. head coverWith complete cylinder head 128795 1
44 Gasket -With Amianthus 127227 1
44 Gasket - Without Amianthus 134948 1
45 Front cover 121116 2
46 Seal ringIn alternative use no. 128260 114639 2
47 Seal ring 117036 2
48 Seal ring 127649 6
49 Plug (8 x 1,25) 14326150 3
50 Stud 11500121 2
51 Nut 15896211 2
52 Washer 12601271 2
53 Bracket 124594 1
54 Stud 11500421 2
55 Rear cover 103796 1
56 Gasket - Without Amianthus 132918 1
56 Gasket - With Amianthus 104694 1
57 Plug 10269750 3
58 Heli - coil 13525470 1
59 Right intake camshaft, completeAfter exhaustion use no. 143957 123413 1
60 Right exhaust camshaft, complete 123105 1
61 Front capWith complete cylinder head 114499 2
62 Rear capWith complete cylinder head 114497 2
63 Intermediate capWith complete cylinder head 126811 10
64 Union 102705 1
