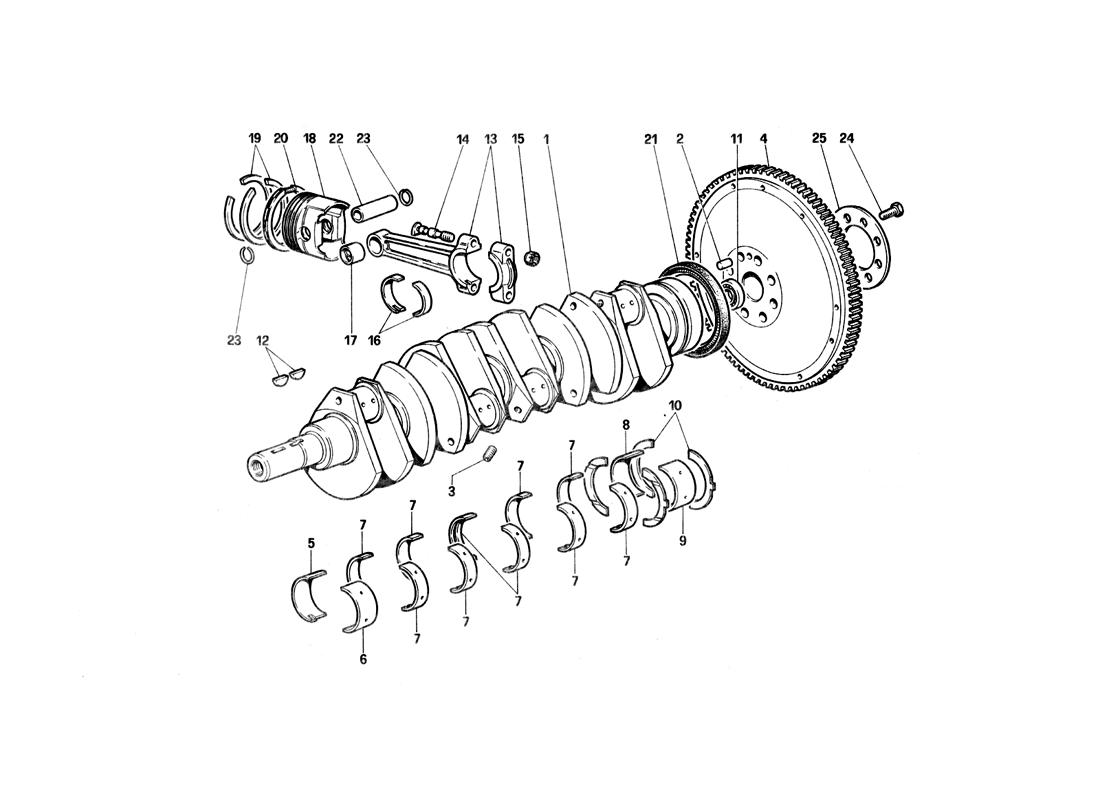

Ferrari / Testarossa (1990) / 002 - Crankshaft - Connecting Rods and Pistons
Go to order form
| Diagram # | Name | Part # | Price | Fitted Quantity |
Quantity Available |
Quantity | Select |
|---|---|---|---|---|---|---|---|
| 1 | Crankshaft | 120902 | POA | 1 | 0 |
|
|
| 2 | Dowel | 100185 | POA | 1 | 0 |
|
|
| 3 | Plug | 14326150 | POA | 12 | 0 |
|
|
| 4 | FlywheelFor B1 - C7 - SA - Until car n. 73563 | 130644 | POA | 1 | 0 |
|
|
| 4 | Flywheel For US - C8, Starting from car no. 73533 US - 73873 CH to car no. 80146 US - 80145 CH | 136025 | POA | 1 | 0 |
|
|
| 4 | FlywheelFor US - C8, Starting from car no. 80177 US - 80146 CH | 137218 | POA | 1 | 0 |
|
|
| 4 | Flywheel - For B1 and SAStarting from car no. 80095 and for CAT. | 137215 | POA | 1 | 0 |
|
|
| 4 | Flywheel For US - C8, Until car no. 73531 US - 73871 CH | 125780 | POA | 1 | 0 |
|
|
| 4 | Flywheel For B1 and SA - Starting from car no. 73565 to car no. 80094 | 136023 | POA | 1 | 0 |
|
|
| 5 | Right front half bearing | 100118 | POA | 1 | 0 |
|
|
| 5 | 1st undersize 0.254 mm. on ? | 100119 | POA | 1 | 0 |
|
|
| 5 | 1st undersize 0.254 mm. on ? | 100119 | POA | 1 | 0 |
|
|
| 5 | 2nd undersize 0.508 mm. on ? | 100120 | POA | 1 | 0 |
|
|
| 6 | Left front halt bearing | 100122 | POA | 1 | 0 |
|
|
| 6 | 2nd undersize 0.508 mm. on ? | 100124 | POA | 1 | 0 |
|
|
| 6 | 1st undersize 0.254 mm. on ? | 100123 | POA | 1 | 0 |
|
|
| 6 | 2nd undersize 0.508 mm. on ? | 100124 | POA | 1 | 0 |
|
|
| 7 | 1st undersize 0.254 mm. on ? | 100135 | POA | 1 | 0 |
|
|
| 7 | 2nd undersize 0.508f mm. on ? | 100136 | POA | 1 | 0 |
|
|
| 7 | Right and left interm. half bearing | 100134 | POA | 10 | 0 |
|
|
| 7 | 1st undersize 0.254 mm. on ? | 100135 | POA | 1 | 0 |
|
|
| 8 | 1st undersize 0.254 mm. on ? | 100139 | POA | 1 | 0 |
|
|
| 8 | 2nd undersize 0.508 mm. on ? | 100140 | POA | 1 | 0 |
|
|
| 8 | Right rear half bearing | 100138 | POA | 1 | 0 |
|
|
| 8 | 2nd undersize 0.508 mm. on ? | 100140 | POA | 1 | 0 |
|
|
| 9 | 1st undersize 0.254 mm. on ? | 100143 | POA | 1 | 0 |
|
|
| 9 | 1st undersize 0.254 mm. on ? | 100143 | POA | 1 | 0 |
|
|
| 9 | 2nd undersize 0.508 mm on ? | 100144 | POA | 1 | 0 |
|
|
| 9 | Left rear half bearing | 100142 | POA | 1 | 0 |
|
|
| 10 | 1st oversize 0,127 mm. | 113984 | POA | 1 | 0 |
|
|
| 10 | 2nd oversize 0.25 mm. | 100147 | POA | 1 | 0 |
|
|
| 11 | Bearing for clutch shaft support | 103877 | POA | 1 | 0 |
|
|
| 12 | Feather key on crankshaft | 10206520 | POA | 2 | 0 |
|
|
| 13 | Connecting rod, complete | 109738 | POA | 12 | 0 |
|
|
| 13 | Connecting rod, and capWith assembly no. 109738 | 109688 | POA | 12 | 0 |
|
|
| 14 | Connecting rod tightening bolt | 100156 | POA | 24 | 0 |
|
|
| 15 | Nut for connecting rod tightening bo | 104011 | POA | 24 | 0 |
|
|
| 16 | 2nd undersize 0.508 mm. on 0 | 100152 | POA | 1 | 0 |
|
|
| 16 | 1st undersize 0.254 mm. on 0 | 100151 | POA | 1 | 0 |
|
|
| 16 | Connecting rod hald bearing | 100150 | POA | 24 | 0 |
|
|
| 17 | Bush for godgeon pin | 107100 | 23.52 | 12 | 0 |
|
|
| 18 | Set of segments | 121531 | POA | 1 | 0 |
|
|
| 18 | Piston, complete Not for US - After exhaustion no. 120449 | 136294 | POA | 12 | 0 |
|
|
| 18 | Piston, complete For US - Until exhaustion | 120450 | POA | 12 | 0 |
|
|
| 18 | Piston, completeFor US - After exhaustion no. 120450 | 138781 | POA | 12 | 0 |
|
|
| 18 | Piston, complete Not for US - Until exhaustion | 120449 | POA | 12 | 0 |
|
|
| 19 | AC seal ring (1st and 2nd groove)With set no. 121531 | 119850 | POA | 24 | 0 |
|
|
| 20 | ROF scraper ring (3rd goove)With set no. 121531 | 119851 | POA | 12 | 0 |
|
|
| 21 | Sealing ringAfter exhaustion use no. 138391 | 100014 | POA | 1 | 0 |
|
|
| 22 | Gudgeon pin | 119537 | POA | 12 | 0 |
|
|
| 23 | Ring for gudgeon pin | 100174 | POA | 24 | 0 |
|
|
| 24 | Flywheel securing screw | 103875 | POA | 8 | 0 |
|
|
| 25 | Safety plate | 108662 | 18.11 | 1 | 0 |
|
