Ferrari / Testarossa (1987) / 048 - Current Generation
Go to order form

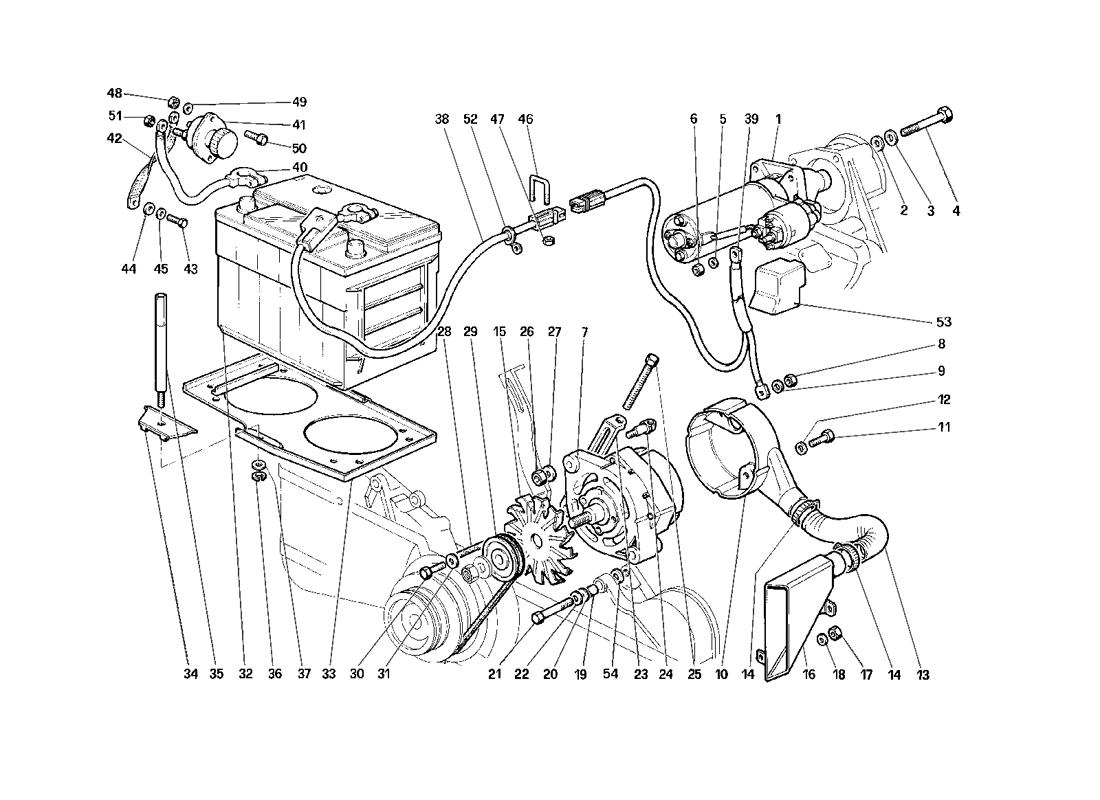

| Diagram # | Name | Part # | Price | Fitted Quantity |
Quantity Available |
Quantity | Select |
|---|---|---|---|---|---|---|---|
| 1 | Starter motor | 120967 | POA | 1 | 0 |
|
|
| 2 | Starter securing screw | 104189 | POA | 3 | 0 |
|
|
| 3 | Washer | 11198071 | POA | 3 | 0 |
|
|
| 4 | Flat washer | 10519621 | POA | 3 | 0 |
|
|
| 5 | Spacer | 102683 | POA | 1 | 0 |
|
|
| 6 | Nut | - | POA | 1 | 0 |
|
|
| 7 | Alternator 108A For A1 until exhausted | 121281 | POA | 1 | 0 |
|
|
| 7 | Alternator 120A For US-CH-SA - B1 and after exhaustion of PN 121281 | 125891 | POA | 1 | 0 |
|
|
| 8 | Alternator cables securing nut | 10725911 | POA | 1 | 0 |
|
|
| 9 | Washer | 12601271 | POA | 1 | 0 |
|
|
| 10 | Air conveyorFor alternator PN. 121281 | 123278 | POA | 1 | 0 |
|
|
| 10 | Air conveyorFor alternator PN. 125891 | 125574 | POA | 1 | 0 |
|
|
| 11 | Screw | 123295 | POA | 1 | 0 |
|
|
| 12 | Washer | 12601471 | POA | 1 | 0 |
|
|
| 13 | Conveyor flexible hose | 123296 | POA | 1 | 0 |
|
|
| 14 | Clamp | 12177090 | POA | 2 | 0 |
|
|
| 15 | Fan | 121282 | POA | 1 | 0 |
|
|
| 16 | Air-delivery hose | 124178 | POA | 1 | 0 |
|
|
| 17 | Nut | 12575411 | POA | 1 | 0 |
|
|
| 18 | Washer | 10615476 | POA | 1 | 0 |
|
|
| 19 | Bushing on R.H. crankcase cover | 123172 | POA | 1 | 0 |
|
|
| 20 | Washer | 12638601 | POA | 1 | 0 |
|
|
| 21 | Screw | 15971821 | POA | 1 | 0 |
|
|
| 22 | Washer | 106853 | 0.50 | 1 | 0 |
|
|
| 23 | Alternator bracket | 123173 | POA | 1 | 0 |
|
|
| 24 | Threaded pin | 123193 | POA | 1 | 0 |
|
|
| 25 | Voltage regulating screw | 125668 | POA | 1 | 0 |
|
|
| 26 | Self-locking nut | 16104111 | POA | 1 | 0 |
|
|
| 27 | Washer | 14496501 | POA | 1 | 0 |
|
|
| 28 | Alternator control belt Continental | 127132 | POA | 1 | 0 |
|
|
| 29 | Pulley For A1 (Up to engine No. 100) | 121260 | POA | 1 | 0 |
|
|
| 29 | PulleyFor A1 (From engine No 101), B1-US-CH-SA | 125910 | POA | 1 | 0 |
|
|
| 30 | Braket securing screw | 15970921 | POA | 1 | 0 |
|
|
| 31 | Washer | 106853 | 0.50 | 1 | 0 |
|
|
| 32 | 1 2 V - 66 Ah - 300 A battery | 118060 | POA | 1 | 0 |
|
|
| 33 | Battery support plate | 125333 | POA | 1 | 0 |
|
|
| 34 | Battery securing braket | 100839 | POA | 1 | 0 |
|
|
| 35 | Pin | 125330 | POA | 1 | 0 |
|
|
| 36 | Seeger ring | 11065676 | POA | 1 | 0 |
|
|
| 37 | Washer | 12642721 | POA | 1 | 0 |
|
|
| 38 | Battery positive cable | 123674 | POA | 1 | 0 |
|
|
| 39 | Starter and alternator positive cableFor B1 and U7 | 131162 | POA | 1 | 0 |
|
|
| 39 | Starter and alternator positive cableNot for B1 and U7 | 123675 | POA | 1 | 0 |
|
|
| 40 | Plait from battery to switch | 123676 | POA | 1 | 0 |
|
|
| 41 | Battery disconnecting switch | 123677 | POA | 1 | 0 |
|
|
| 42 | Earthing plait for batt. disconn. | 123678 | POA | 1 | 0 |
|
|
| 43 | Screw | 16043121 | POA | 1 | 0 |
|
|
| 44 | Washer | 10519601 | 0.33 | 1 | 0 |
|
|
| 45 | Tab washer | 10615679 | POA | 1 | 0 |
|
|
| 46 | Pos. cable fastening U bolt | 116591 | POA | 1 | 0 |
|
|
| 47 | Nut | 12574011 | POA | 2 | 0 |
|
|
| 48 | Nut securing batt. disconn. switch | 12574011 | POA | 2 | 0 |
|
|
| 49 | Washer | 14497701 | POA | 2 | 0 |
|
|
| 50 | Nut | 14476078 | POA | 2 | 0 |
|
|
| 51 | Nut | 12575411 | POA | 1 | 0 |
|
|
| 52 | Cable support bracket | 10441490 | POA | 2 | 0 |
|
|
| 53 | Protection | 126505 | POA | 1 | 0 |
|
|
| 54 | Washer | 121678 | POA | 1 | 0 |
|
