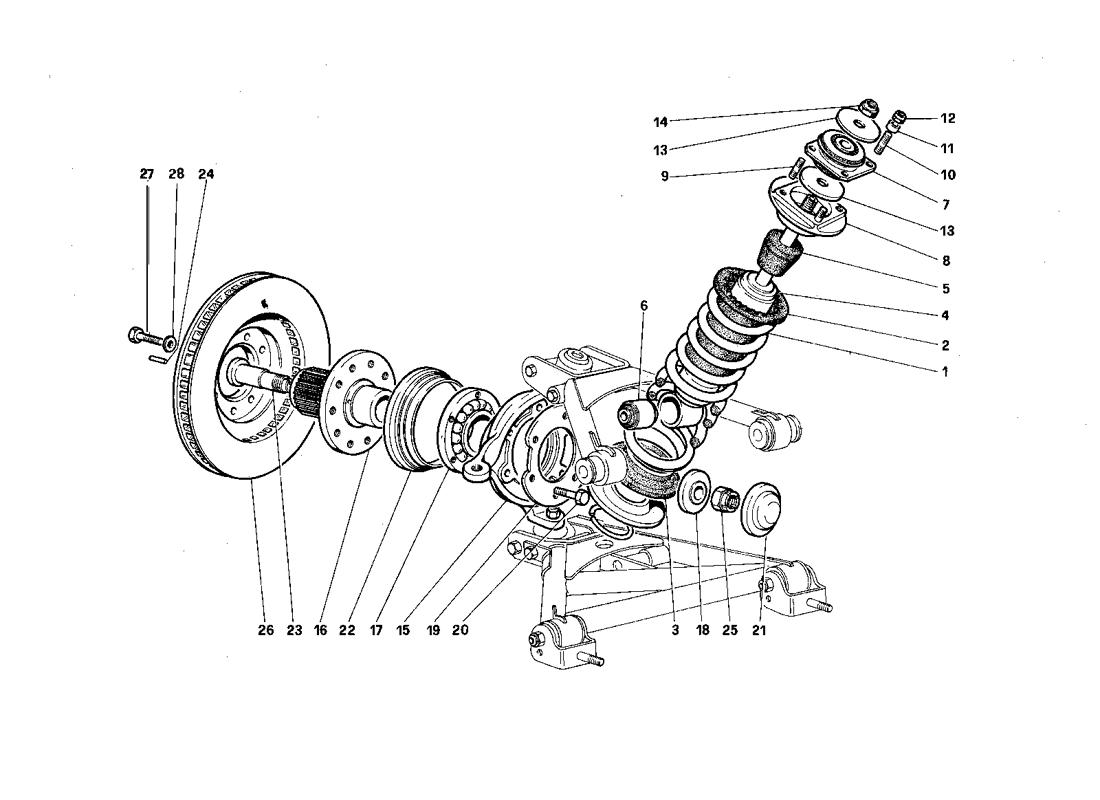

Ferrari / Testarossa (1987) / 042 - Front Suspension - Shock Absorber and Brake Disc
Go to order form
| Diagram # | Name | Part # | Price | Fitted Quantity |
Quantity Available |
Quantity | Select |
|---|---|---|---|---|---|---|---|
| 1 | Suspension spring | 124981 | POA | 2 | 0 |
|
|
| 2 | Upper spacer | 113582 | POA | 2 | 0 |
|
|
| 3 | Lower spacer | 113581 | POA | 2 | 0 |
|
|
| 4 | Shock absorber | 125048 | POA | 2 | 0 |
|
|
| 5 | Rubber rebound bumper | 116358 | POA | 2 | 0 |
|
|
| 6 | Estendblock | 100809 | POA | 2 | 0 |
|
|
| 7 | Hyperblock | 114812 | POA | 2 | 0 |
|
|
| 8 | Spring retaining cup | 114809 | POA | 2 | 0 |
|
|
| 9 | Stud | 13543321 | POA | 4 | 0 |
|
|
| 10 | Stud | 13543621 | POA | 4 | 0 |
|
|
| 11 | Spacer | 13605811 | POA | 4 | 0 |
|
|
| 12 | Nut | 16104121 | POA | 8 | 0 |
|
|
| 13 | Washer | 114815 | POA | 4 | 0 |
|
|
| 14 | Nut | 16105121 | POA | 2 | 0 |
|
|
| 15 | Right stub axle | 116722 | POA | 1 | 0 |
|
|
| 15 | Left stub axle | 116721 | POA | 1 | 0 |
|
|
| 16 | Right front wheel hub | 125724 | POA | 1 | 0 |
|
|
| 16 | Left front wheel hub | 125723 | POA | 1 | 0 |
|
|
| 17 | Bearing | 112799 | POA | 2 | 0 |
|
|
| 18 | Washer | 124510 | POA | 2 | 0 |
|
|
| 19 | Washer | 118522 | POA | 2 | 0 |
|
|
| 20 | Screw | 14238731 | POA | 12 | 0 |
|
|
| 21 | Bearing cover | 124511 | POA | 2 | 0 |
|
|
| 22 | Bearing cover | 120066 | POA | 2 | 0 |
|
|
| 23 | Stay bolt for bearing | 125725 | POA | 2 | 0 |
|
|
| 24 | Pin | 13909870 | POA | 2 | 0 |
|
|
| 25 | Nut | 124642 | POA | 2 | 0 |
|
|
| 26 | Brake disc | 125734 | POA | 2 | 0 |
|
|
| 27 | Screw | 125736 | POA | 20 | 0 |
|
|
| 28 | Washer | 106853 | 0.50 | 20 | 0 |
|
