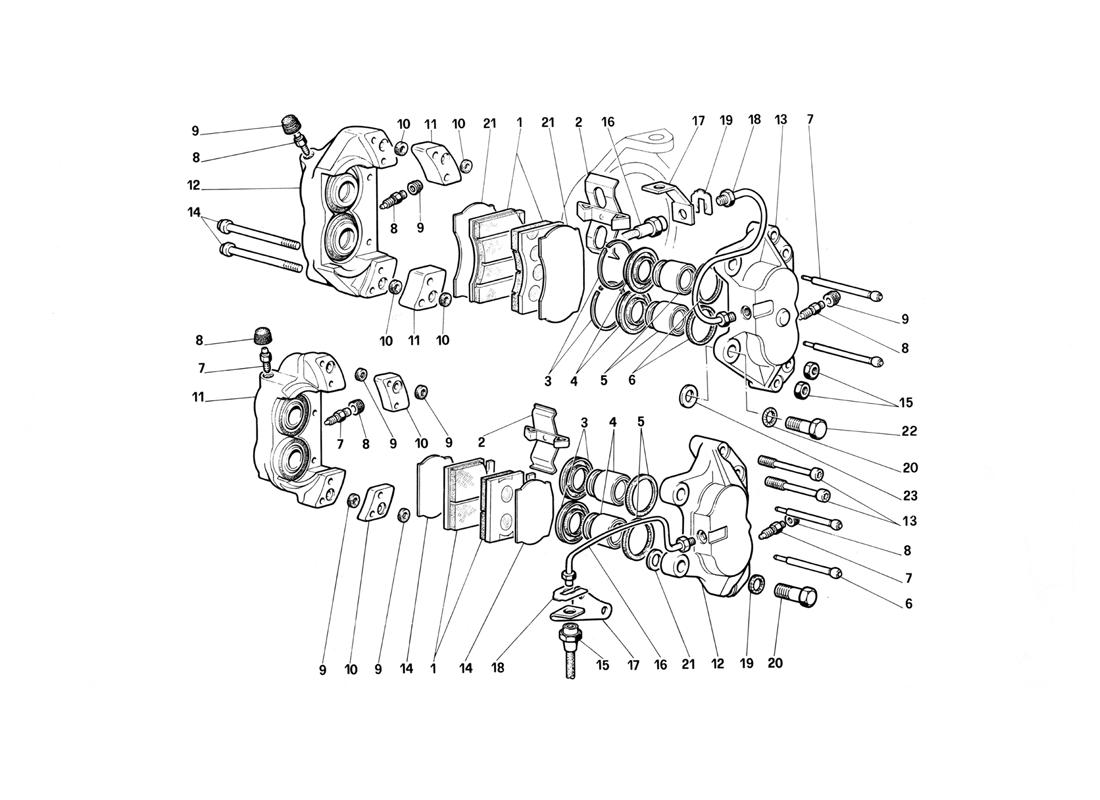

Ferrari / Testarossa (1987) / 038 - Front and Rear Brake Calipers

Go to order form
Diagram # Name Part # Fitted
Quantity
Quantity Select
1 Brake pad 125665 4
1 Brake pad 125666 4
2 Front caliper overhaul kit (one) 95691531 2
2 Pad pressure spring - 2
2 Pad pressure spring ATE 2
2 Rear caliper overhaul kitOne 95691532 1
3 Brake cylinder protection ring With kit P.N. 95691532 - 8
3 Stop ringWith kit P.N. 95691531 - 8
3 Brake cylinder protection ring With kit P.N. 95691532 ATE 8
3 Stop ringWith kit P.N. 95691531 ATE 8
4 Brake cylinder - 8
4 Brake cylinder ATE 8
4 Brake cylinder protection ring With kit no. 95691531 ATE 8
5 Brake cylinder - 8
5 Brake cylinder ATE 8
5 Seal ring on cylinder With kit P.N. 95691532 ATE 8
6 Pin for pads With kit P.N. 95691533 - 4
6 Seal ring on cylinder With kit no. 95691531 - 8
6 Pin for pads With kit P.N. 95691533 ATE 4
6 Seal ring on cylinder With kit no. 95691531 ATE 8
7 Bleeder ATE 6
7 Pin for pads With kit no. 95691531 ATE 4
7 Bleeder - 6
8 Bleeder ATE 6
8 Bleeder - 6
8 Bleeder cap ATE 6
9 Bleeder cap ATE 6
9 Seal ring on spacer ATE 8
9 Bleeder cap - 6
10 Seal ring on spacer ATE 8
10 Spacer ATE 4
10 Seal ring on spacer - 8
11 Brake cylinder outer body - 2
11 Brake cylinder outer body ATE 2
11 Spacer ATE 4
12 Brake cylinder inner body - 2
12 Brake cylinder inner body ATE 2
12 Brake cylinder outer body ATE 8
13 Brake cylinder body securing bolt - 4
13 Brake cylinder body securing bolt ATE 4
13 Brake cylinder inner body ATE 2
14 Brake cylinder bosy securing bolt - 4
14 Brake cylinder bosy securing bolt ATE 4
14 Plate 105054 4
15 Nut ATE 4
15 Rear calipers connecting hose 116373 4
15 Nut - 4
16 Pipe from caliper to hose 101395 4
16 Front calipers connecting hose 116373 4
17 Bracket on LH hub holder 125706 1
17 Bracket fixing hoses to stub axle 116396 2
17 Bracket on RH hub holder 125705 1
18 Hose clamp 116374 4
18 Pipe from caliper to hose 106671 4
19 Clamp 116374 4
19 Washer 101255 4
20 Caliper securing bolt 101264 4
20 Washer 101255 4
21 Shim - 0.7 mm, thick (if required) 108922 4
21 Plate 128869 4
21 Shim - 0.2 mm, thick (if required) 108918 4
21 Shim - 0.3 mm, thick (if required) 108919 4
21 Shim - 0.5 mm, thick (if required) 108920 4
21 Shim - 0.6 mm, thick (if required) 108921 4
21 Shim - 0.8 mm, thick (if required) 108923 4
21 Shim - 1 mm, thick (if required) 108924 4
22 L.H. brake caliper 125764 1
22 Caliper securing bolt 101248 4
22 R.H. brake caliper 125763 1
23 Shim - 1 mm. thick (if required) 108924 2
23 Shim - P.7 mm. thick (if required) 108922 4
23 Shim ? 0.5 mm. thick (if required) 108920 4
23 Shim ? 0.5 mm. thick (if required) 108920 4
23 L.H. brake caliper 125766 1
23 R.H brake caliper 125765 1
23 Shim - 0.2 mm. thick (if required) 108918 4
23 Shim - 0.3 mm. thick (if required) 108919 4
23 Shim - 0.6 mm. thick (if required) 108921 4
23 Shim - 0.8 mm. thick (if required) 108923 4
