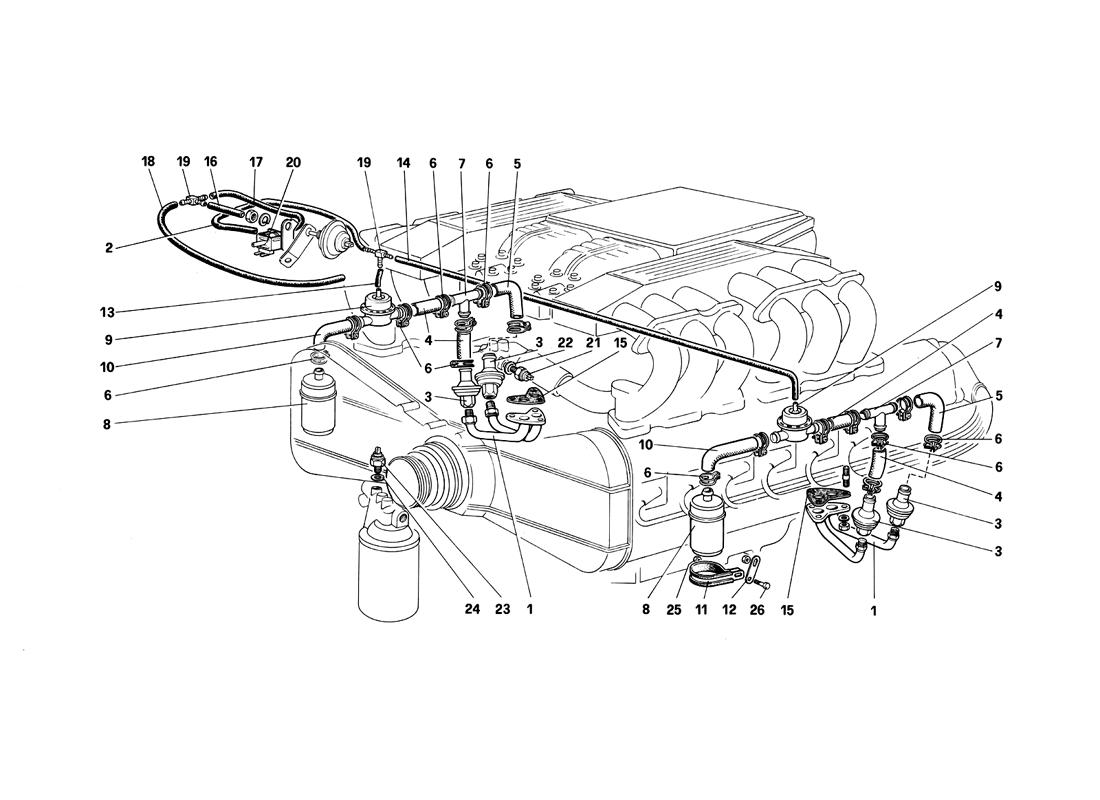

Ferrari / Testarossa (1987) / 015 - Air Injection and Lines - For CH and SA

Go to order form
Diagram # Name Part # Fitted
Quantity
Quantity Select
1 Air injection pipe 126983 2
2 Pipe 128907 1
3 Check valve 128011 4
4 Pipe 128714 4
5 Pipe 123713 2
6 Clamp 12180290 16
7 T union 109887 2
8 Air filter 127144 2
9 Cut-off valve 121751 2
10 Pipe 123860 2
11 Bracket 113909 2
12 Bracket 128827 2
13 Pipe 122759 1
14 Pipe 127893 1
15 Gasket 127143 2
16 PipeFor C6 and S6 121831 1
17 Pipe For C6 and S6 121828 1
18 Pipe 122761 1
19 3 way union For C7 and S7 Q.ty=1 121793 2
20 ElectrovaiveFor C7 and S7 use PN. 129059 121782 1
21 Bimetallic thermoswitchFor C7 and S7 use PN. 128878 121777 1
22 Gasket 10260060 1
23 Oil temperature sensor Not for C7-S7 127155 1
24 Gasket Not for C7 and S7 10260060 1
25 Nut 16104111 2
26 Screw 16043321 2
