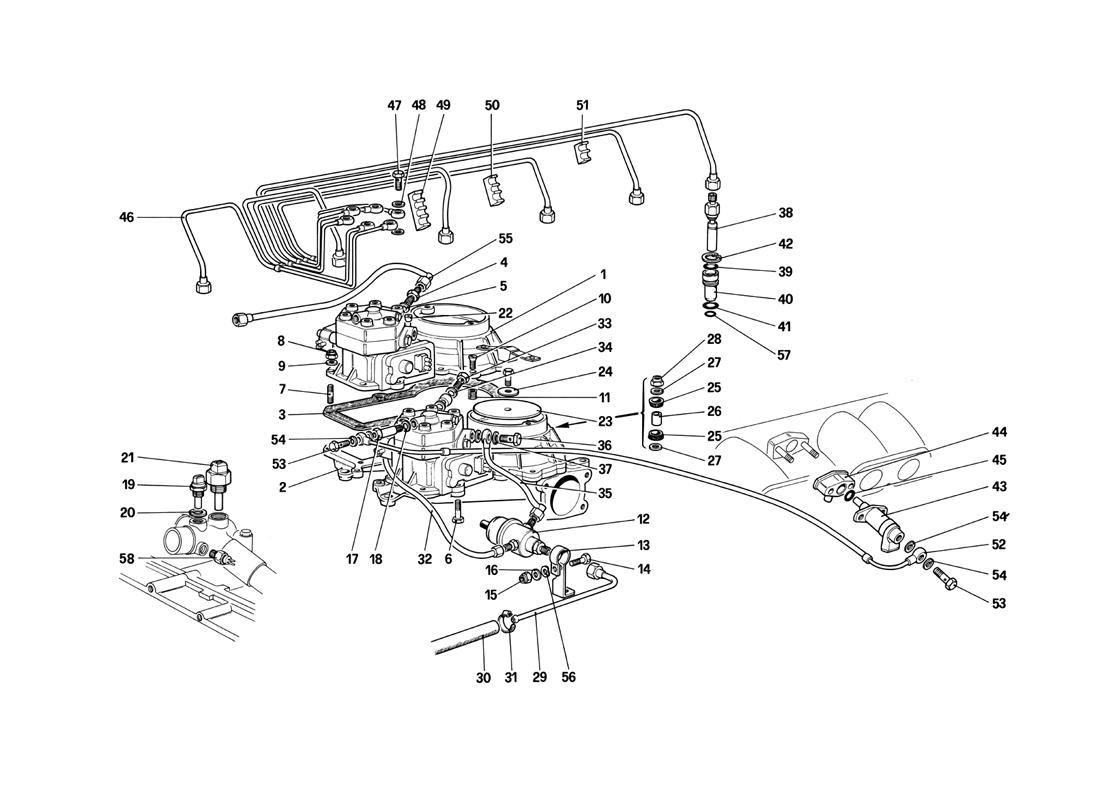

Ferrari / Testarossa (1987) / 012 - Fuel Distributors Lines - KE - Jetronic System

Go to order form
Diagram # Name Part # Fitted
Quantity
Quantity Select
1 Support for metering devices, compl. 121694 1
1 Metering device 123411 2
2 Support for metering devicesWith assy. P.N. 121694 123068 1
3 Gasket 121568 1
4 Union with filter 115498 2
5 Gasket 11270160 2
6 Bolt 10902521 4
7 Stud 13540921 8
8 Selflocking nut 12575421 12
9 Washer 12601271 12
10 Screw 14441321 8
11 Heli-coil 13525470 8
12 Pressure regulator 125136 2
13 Pressure regulator support 125770 2
14 Bolt 10902421 2
15 Selflocking nut 12574221 2
16 Washer 12604271 2
17 Fitting 113660 2
18 Washer 14330260 2
19 Water temperature sensor 121720 1
20 Gasket 10298460 1
21 Thermo time switch 118790 1
22 Cap for idling adjusting screw 117242 2
23 Air sensor plate 124408 2
24 Supporting washer 120809 2
25 Pad 123134 8
26 Distance tube 123135 4
27 Washer 106744 8
28 Nut 12574211 4
29 R.H. return pipe 125876 1
29 L.H. return pipe 125846 1
30 L.H. pipe 116769 1
30 R.H. pipe 114882 1
31 Clamp 12179490 4
32 Delivery pipe 125774 1
32 Delivery pipe 125775 1
33 Fitting 111644 2
34 Gasket 10296160 4
35 Retunr pipe 125829 1
35 Return pipe 125830 1
36 Fitting 113670 2
37 Gasket 10260160 4
38 Injector 113975 12
39 Seal ring 113570 12
40 Injector holding bush 123936 12
41 Garter ring 101031 12
42 Stop ring 103326 12
43 Cold start injector 113979 2
44 Injector connecting union 121056 2
45 Seal ring 103039 2
46 Shaped fuel from metering device to injector of no. 1 cylinder 125788 1
46 Shaped fuel from metering device to njector oj no. 3 cylinder 125790 1
46 Shaped fuel from metering device to injector of no. 11 cylinder 125798 1
46 Shaped fuel from metering device to injector of no. 2 cylinder 125789 1
46 Shaped fuel from metering device to injector of no. 10 cylinder 125797 1
46 Shaped fuel from metering device to injector of no. 5 cylinder 125792 1
46 Shaped fuel from metering device to injector of no. 12 cylinder 125799 1
46 Shaped fuel from metering device to injector of no. 4 cylinder 125791 1
46 Shaped fuel from metering device to injector of no. 6 cylinder 125793 1
46 Shaped fuel from metering device to injector of no. 9 cylinder 125796 1
46 Shaped fuel from metering device to injector of no. 8 cylinder 125795 1
47 Union 113670 12
48 Copper washer 10260170 24
49 4-way pipe supporting clamp 115595 2
50 3-way pipe supporting clamp 113896 11
51 2-way pipe supporting clamp 117279 2
52 Shaped fuel pipe for L.H. cold start 125884 1
52 Shaped fuel pipe for R.H. cold start 125879 1
53 Union 113664 4
54 Gasket 14330260 8
55 Pipe connecting filter to left metering 123791 1
55 Pipe connecting filter to right metering 123790 1
56 Washer 12601371 2
57 Garter ring 101030 12
58 Bimetallic thermoswitch 125878 1
