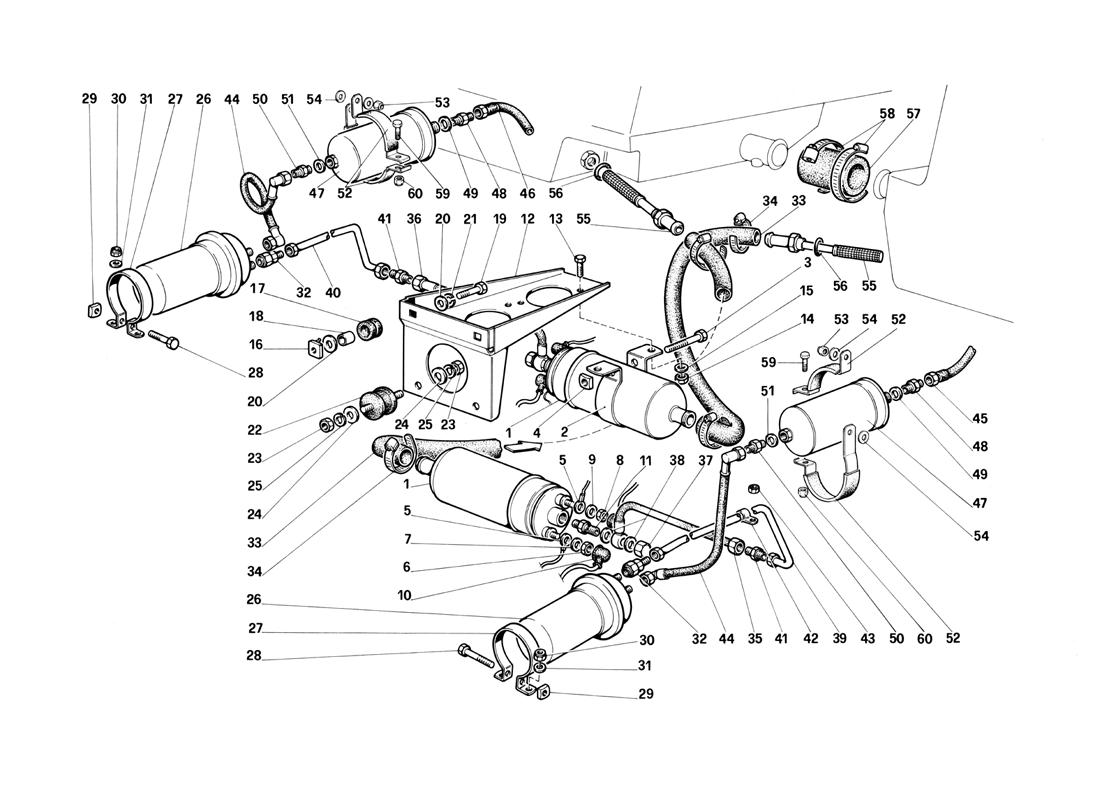

Ferrari / Testarossa (1987) / 007 - Fuel Pumps and Pipes

Go to order form
Diagram # Name Part # Fitted
Quantity
Quantity Select
1 Fuel pump 121727 2
2 Pump retaining clamp 113673 2
3 Screw 10377311 2
4 Nut 14089311 1
5 Earth cable 125694 2
6 Nut 15896411 2
7 Washer 106849 2
8 Nut 10794011 2
9 Spring washer 106848 2
10 Cap 107003 4
11 No return valve 120098 2
12 Support for pumps 122735 1
13 Screw 10902221 4
14 Nut 12574211 4
15 Washer 10519421 4
16 Nut 60659100 2
17 Rubber bushing 103549 2
18 Spacer 103550 2
19 Screw 10902421 2
20 Washer 106850 2
21 Spring washer 12643701 2
22 Pad 102947 2
23 Nut 15896211 4
24 Washer 106850 4
25 Spring washer 12643701 4
26 Accumulator Not for A1 125135 2
26 Accumulator For A1 113978 2
27 Accumulator retaining clampFor A1 113674 2
27 Accumulator retaining clamp Not for A1 122846 2
28 Screw 10376111 2
29 Square nut 14089311 2
30 Nut 12574211 4
31 Washer 10519421 4
32 Accumulator union For A1 125216 2
32 Accumulator union Not for A1 125217 2
33 Pump tank connecting sleeve 122736 2
34 Clamp 12179590 4
35 Right hose 123785 1
36 Left hose 124155 1
37 Drain plug 10183217 1
38 Gasket 11270160 4
39 Pump to right accumulator conn. pipe 123790 1
40 Pump to left accumulator conn. pipe 123791 1
41 Union 125215 2
42 Clamp 10441190 8
43 Nut 12574211 8
44 Accumulator to filter conn, pipeNot for A1 125199 2
44 Accumulator to filter conn. pipeFor A1 123789 2
45 Pipe connecting filter to right metering device For A1 123792 1
45 Pipe connecting filter to right metering device Not for A1 125784 1
46 Pipe connecting filter to left metering device For A1 123793 1
46 Pipe connecting filter to left metering device Not for A1 125785 1
47 Fuel filter Not for A1 117792 2
47 Fuel filter For A1 113977 2
48 Union on delivery side 109797 2
49 Gasket 113910 2
50 Union on feeding side 109889 2
51 Gasket 10280060 2
52 Clamp Not for A1 126352 2
52 ClampFor A1 113909 2
53 NutNot for A1 12574521 2
53 Nut For A1 16104121 2
54 WasherNot for A1 13550401 2
54 Washer For A1 12646721 2
55 Filter on tank 122790 2
56 Garter spring 122791 2
57 Tanks connecting sleeve 116270 1
58 ClampAfter exhaustion use no. 12173890 108785 2
59 Screw Not for A1 10902321 2
60 Nut Not for A1 12575411 2
