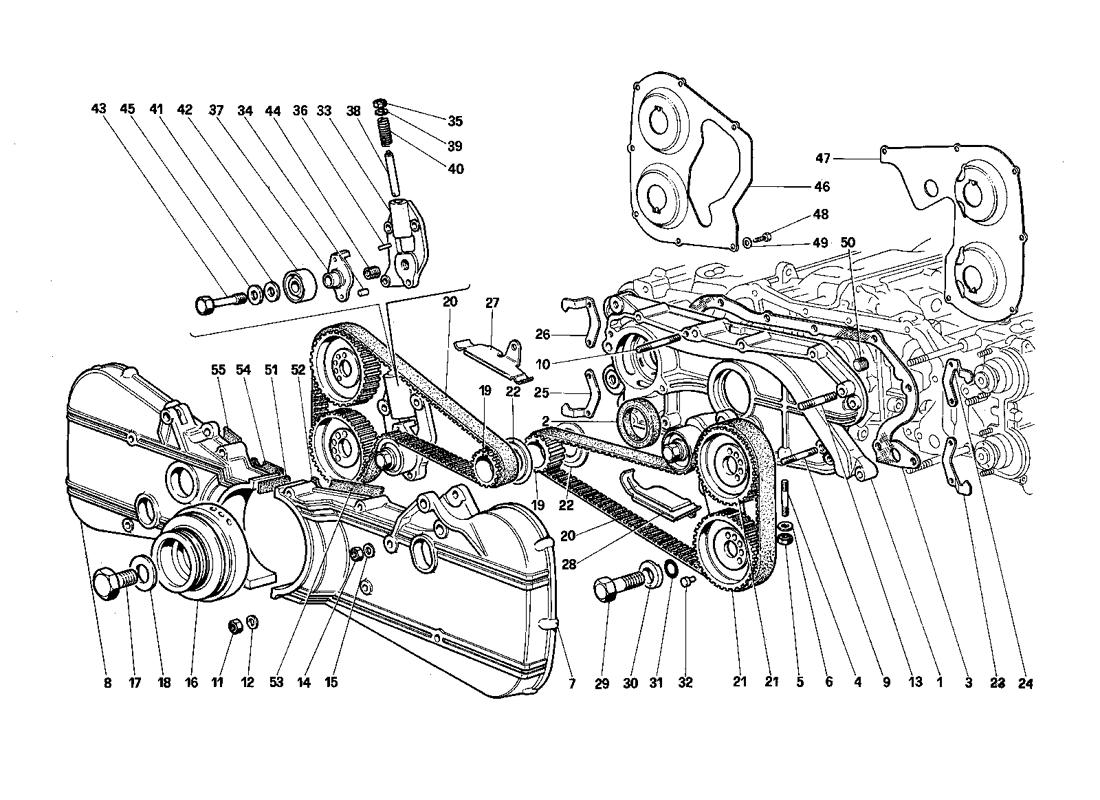

Ferrari / Testarossa (1987) / 005 - Timing System - Controls

Go to order form
Diagram # Name Part # Fitted
Quantity
Quantity Select
1 Front cover, completeWith complete crankcase 121433 1
1 Front coverNot available as spare part 122171 1
2 Seal ring 121094 1
3 Gasket 122172 1
4 Stud 13449621 3
5 Nut 12575621 3
6 Washer 12601471 1
7 L.H. cover 126068 1
8 R.H. cover 125778 1
9 Stud For A1 13544421 1
10 Stud For A1 q.ty = 2 13544321 3
11 Nut 101139 3
12 Washer 12601371 3
13 Stud 13450421 1
14 Nut 12575611 1
15 Washer 12601471 1
16 Damper For A1 until engine no. 455 122955 1
16 DamperFor A1, starting engine no. 456, US - CH - SA - B1 125194 1
17 Screw 100476 1
18 Washer 102775 1
19 Belt control gear 123112 2
20 Timing belt 120731 2
21 Timing belt pulley 123108 4
22 Timing belt lock ring 120733 2
23 Timing mark plate L.H. exhaust, for A1 (Until engine No. 304) 125309 1
24 Timing mark plate L.H. intake, for A1 (Until engine no. 304) 125310 1
25 Timing mark plate R.H. exhaust, for A1 (Until engine no. 304) 125176 1
26 Timing mark plate R.H. intake, for A1 (Until engine no. 304) 125177 1
27 R.H. belt protection plateFor A1 (Until engine no. 181) 125248 1
28 LH. belt protection plateFor A1 (Until engine no. 181) 125249 1
29 Screw 16326431 4
30 Gear retaining washer 114802 4
31 Garter spring 114808 4
32 Drive pin 114803 4
33 Dowel 121044 2
34 Dowel 125717 2
35 Self-locking nut 102948 2
36 Spring pin 13933570 2
37 Belt stretcher support plate 121045 2
38 Spring control pin 121047 2
39 Spring retaining washer 121558 2
40 Spring 121249 2
41 Spacer 111460 2
42 Cambelt Tensioner (PAIR) PT512TR 1
43 Screw 111458 2
44 Heli-coil 13524670 2
45 Washer 102824 2
46 R.H. belt protection plateFor A1 (Starting engine no. 305), US-CH-SA-B1 123705 1
47 LH. belt protection plateFor A1 (Starting engine no. 305), US-CH-SA-B1 123706 11
48 Screw 10977711 13
49 Washer 12601171 13
50 Plug 127635 1
51 Protection 128029 1
52 Protection 128030 1
53 Protection 128031 1
54 Protection 128032 1
55 Protection 128033 1
