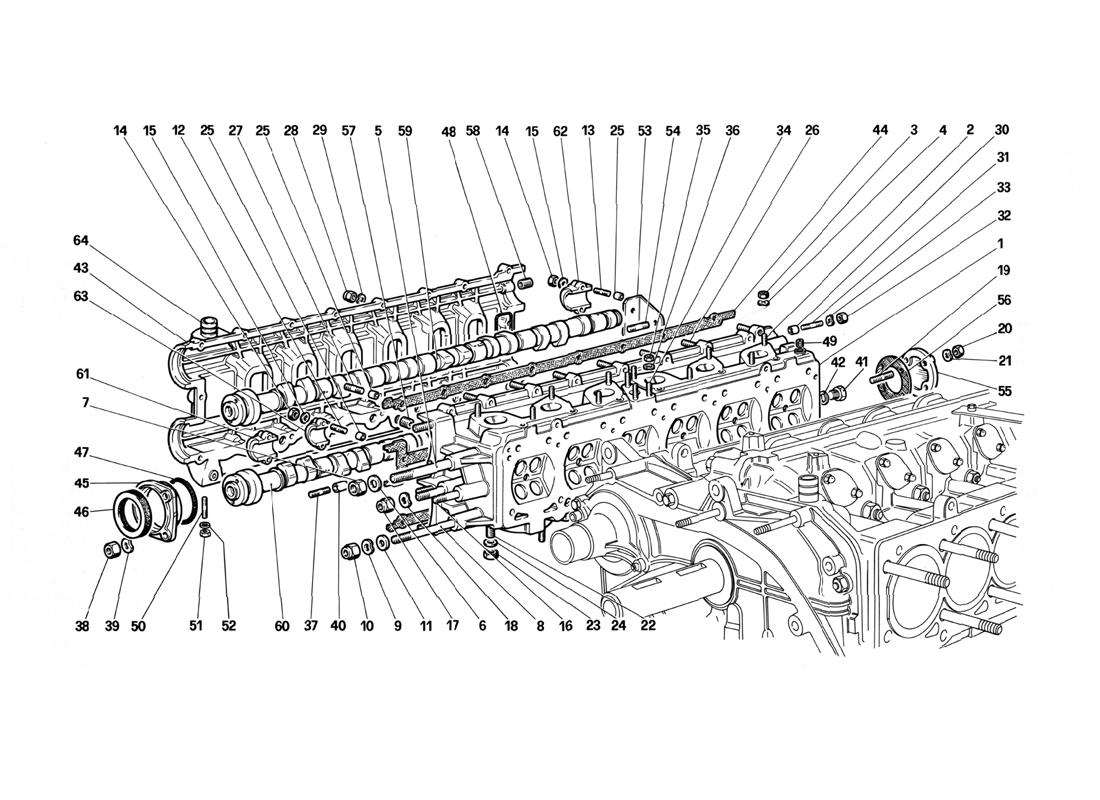

Ferrari / Testarossa (1987) / 003 - Cylinder Head - Right

Go to order form
Diagram # Name Part # Fitted
Quantity
Quantity Select
1 Right cylinder headWith complete cylinder head 123054 1
2 Stud 12354521 10
3 Nut 16100811 10
4 Washer 11194071 10
5 Stud 13953121 1
6 Washer 12601471 1
7 Nut 12575611 1
8 Stud For US - CH - SA 13970421 1
8 Stud For Al - B1 13970321 1
9 Washer 12604471 1
10 Nut 16104411 1
11 Spring washer 112761 1
12 Stud for inner caps 102735 24
13 Stud for outer caps 102754 4
14 Nut 15896211 28
15 Washer 11197773 28
16 Stud Belt stretcher 13543421 2
17 Nut 101139 2
18 Washer 12601371 2
19 Stud For A1 11500321 2
19 Stud For B1 - US - CH - SA 13541021 2
20 Nut 102741 3
21 Washer 12601271 3
22 Stud 13543521 12
23 Nut PN 124525 in alternative 105938 12
24 Washer For nut PN 105938 106852 12
25 Right cylinder head, complete 123064 1
25 Dowel 102725 30
26 Stud for covers 13541321 16
27 Stud on dowel 13541421 2
28 Cap nut 100044 18
29 Washer 12601271 18
30 Dowel for distributor cap support 102725 2
31 Stud 13541121 2
32 Nut 15896211 2
33 Washer 11197773 2
34 Stud 13541021 3
35 Nut 102741 3
36 Washer 12601271 3
37 Stud 13541121 4
38 Nut 102741 4
39 Washer 12601271 4
40 Dowel 102725 4
41 Water drain plug 10300740 1
42 Gasket 10257060 1
43 Right cyl. head cover With cyl. head, starting engine A1 no. 392 and U6 no. 155 128795 1
43 Right cyl. head cover With cyl. head, until engine A1 (no. 391) and U6 (no.154) 121446 1
44 GasketFor cover PN. 121446 121126 1
44 GasketFor cover PN. 128795 127227 1
45 Front cover 121116 2
46 Seal ringPN. 128260 in alternative 114639 2
47 Seal ring 117036 2
48 Seal ringFor cover PN. 128796 127649 6
49 Plug8 x 1,25 14326150 3
50 Stud 11500121 2
51 Nut 15896211 2
52 Washer 12601271 2
53 Bracket 124594 1
54 Stud 11500421 2
55 Rear cover 103796 1
56 Gasket 104694 1
57 Plug 10269750 3
58 Heli-coil 13525470 1
59 Right intake camshaft, completeFor Al, starting from engine no. 258, B1-US-CH-SA 123413 1
59 Right intake camshaft, completeFor A1, until engine no. 257 123101 1
60 Right exhaust camshaft, complete 123105 1
61 Front cap With complete cylinder head 114499 2
62 Rear cap With complete cylinder head 114497 2
63 Intermediate cup With complete cylinder head, after exhaustion use no. 126811 117043 10
64 Union 102705 1
