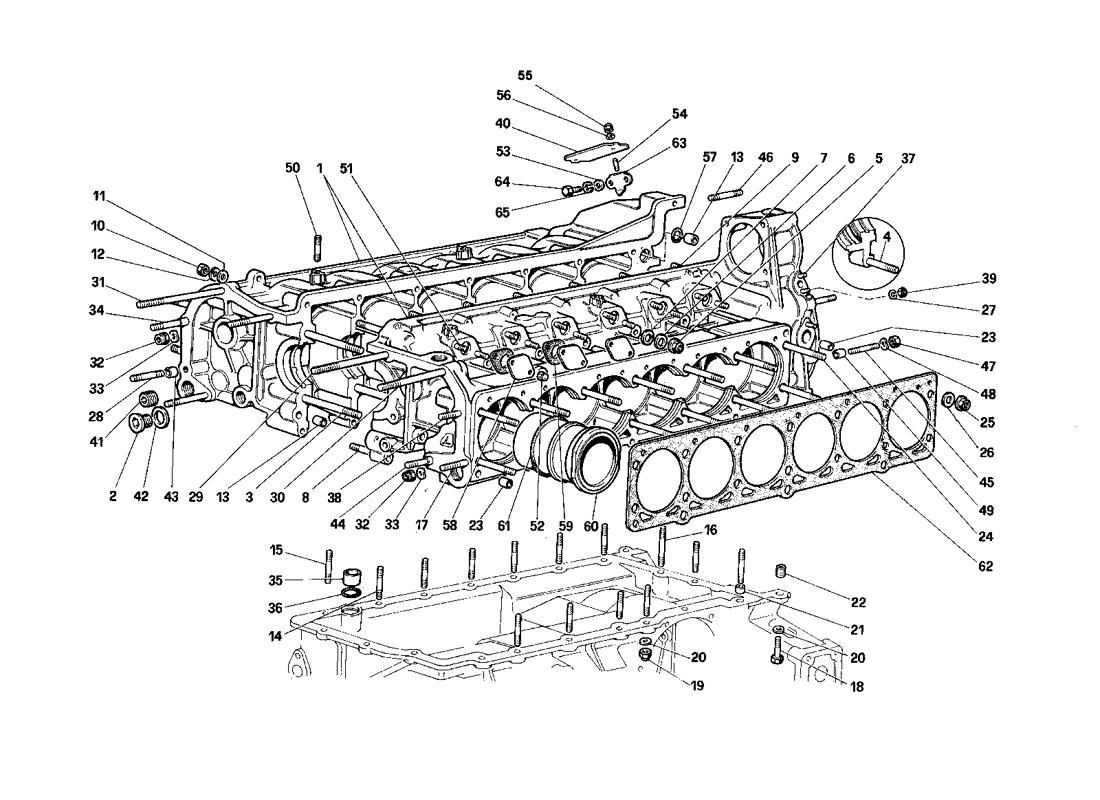

Ferrari / Testarossa (1987) / 001 - Crankcase
Go to order form
| Diagram # | Name | Part # | Price | Fitted Quantity |
Quantity Available |
Quantity | Select |
|---|---|---|---|---|---|---|---|
| N/A | Set of Gaskets | GSET001 | POA | 1 | 0 |
|
|
| 1 | Left semi-crankcaseAs part of complete | 122170 | POA | 1 | 0 |
|
|
| 1 | Right semi-crankcaseAs part of complete | 122169 | POA | 1 | 0 |
|
|
| 1 | Crankcase, complete | 121431 | POA | 1 | 0 |
|
|
| 2 | Plug | 10304611 | POA | 2 | 0 |
|
|
| 3 | Semi-crankcase securing stud | 102687 | POA | 14 | 0 |
|
|
| 4 | Semi-crankcase securing stud | 109539 | POA | 1 | 0 |
|
|
| 5 | Nut | 102693 | POA | 15 | 0 |
|
|
| 6 | Washer | 102694 | POA | 15 | 0 |
|
|
| 7 | Washer | 106855 | POA | 15 | 0 |
|
|
| 8 | Semi-crankcase securing stud | 12546630 | POA | 3 | 0 |
|
|
| 9 | Semi-crankcase securing stud | 102690 | POA | 1 | 0 |
|
|
| 9 | Semi-crankcase securing stud | 102689 | POA | 9 | 0 |
|
|
| 10 | Nut | 12164721 | POA | 13 | 0 |
|
|
| 11 | Washer | 102695 | POA | 13 | 0 |
|
|
| 12 | Washer | 106853 | 0.50 | 13 | 0 |
|
|
| 13 | Semi-crankcase centering dowel | 102692 | POA | 2 | 0 |
|
|
| 14 | Stud securing crankcase to gearbox | 13449621 | POA | 12 | 0 |
|
|
| 15 | Stud | 13449921 | POA | 1 | 0 |
|
|
| 16 | Stud | 13450121 | POA | 2 | 0 |
|
|
| 17 | Stud | 13543821 | POA | 1 | 0 |
|
|
| 18 | Bolt | 11306921 | POA | 2 | 0 |
|
|
| 19 | Nut | 107314 | 9.27 | 2 | 0 |
|
|
| 19 | Nut | 12575621 | POA | 13 | 0 |
|
|
| 20 | Washer | 12601471 | POA | 18 | 0 |
|
|
| 21 | Dowel | 100052 | POA | 1 | 0 |
|
|
| 22 | Threaded insert | 13526070 | POA | 2 | 0 |
|
|
| 23 | Dowel | 124382 | POA | 4 | 0 |
|
|
| 24 | Cyl. heads securing studs | 102691 | POA | 28 | 0 |
|
|
| 25 | Nut | 100101 | POA | 28 | 0 |
|
|
| 26 | Washer | 100100 | POA | 28 | 0 |
|
|
| 27 | Washer | 106849 | POA | 4 | 0 |
|
|
| 28 | Stud on RH dowel | 13543621 | POA | 1 | 0 |
|
|
| 29 | Stud | 13970921 | POA | 1 | 0 |
|
|
| 30 | Stud | 13970421 | POA | 1 | 0 |
|
|
| 31 | Stud | 13970521 | POA | 1 | 0 |
|
|
| 32 | Nut | 101139 | POA | 10 | 0 |
|
|
| 33 | Washer | 12601371 | POA | 10 | 0 |
|
|
| 34 | Stud | 13544321 | POA | 3 | 0 |
|
|
| 35 | Dowel | 121201 | POA | 1 | 0 |
|
|
| 36 | Seal ring | 123263 | POA | 1 | 0 |
|
|
| 37 | Probes securing stud | 13539021 | POA | 4 | 0 |
|
|
| 38 | Stud | 13543421 | POA | 1 | 0 |
|
|
| 39 | Nut | 15896411 | POA | 4 | 0 |
|
|
| 40 | Cover for flywheel inspection slot | 102697 | POA | 1 | 0 |
|
|
| 41 | Plug for lubricating ports | 14326050 | POA | 2 | 0 |
|
|
| 41 | Plug for lubricating ports. | 14326150 | POA | 1 | 0 |
|
|
| 41 | Plug for lubricating ports | 10269850 | POA | 1 | 0 |
|
|
| 42 | Gasket | 10264560 | POA | 2 | 0 |
|
|
| 43 | Dowel | 102704 | POA | 2 | 0 |
|
|
| 44 | Stud on LH dowel | 13543721 | POA | 1 | 0 |
|
|
| 45 | Stud on dowel | 13544221 | POA | 2 | 0 |
|
|
| 46 | Stud | 13544121 | POA | 3 | 0 |
|
|
| 47 | Nut | 16100811 | POA | 5 | 0 |
|
|
| 48 | Washer | 12601371 | POA | 5 | 0 |
|
|
| 49 | Dowel | 102704 | POA | 2 | 0 |
|
|
| 50 | Stud for metering devices support | 13541821 | POA | 4 | 0 |
|
|
| 51 | Stud | 11500021 | POA | 24 | 0 |
|
|
| 52 | Nut | 100044 | POA | 24 | 0 |
|
|
| 53 | Washer | 10519301 | 2.25 | 2 | 0 |
|
|
| 54 | Stud for cover of flywheel inspection slot | 11500021 | POA | 2 | 0 |
|
|
| 55 | Nut | 100044 | POA | 2 | 0 |
|
|
| 56 | Washer | 12601271 | POA | 2 | 0 |
|
|
| 57 | Seal ring | 102743 | POA | 1 | 0 |
|
|
| 58 | Cover | 102698 | POA | 12 | 0 |
|
|
| 59 | Gasket | 102699 | POA | 12 | 0 |
|
|
| 60 | Cylinder liner | 119853 | POA | 12 | 0 |
|
|
| 61 | Seal ring | 110021 | POA | 12 | 0 |
|
|
| 62 | Gasket PN 125045 on exhaustion | 120480 | POA | 2 | 0 |
|
|
| 63 | Plate with timing mark | 124676 | POA | 1 | 0 |
|
|
| 64 | Bolt | 10977621 | POA | 2 | 0 |
|
|
| 65 | Washer | 106849 | POA | 2 | 0 |
|
