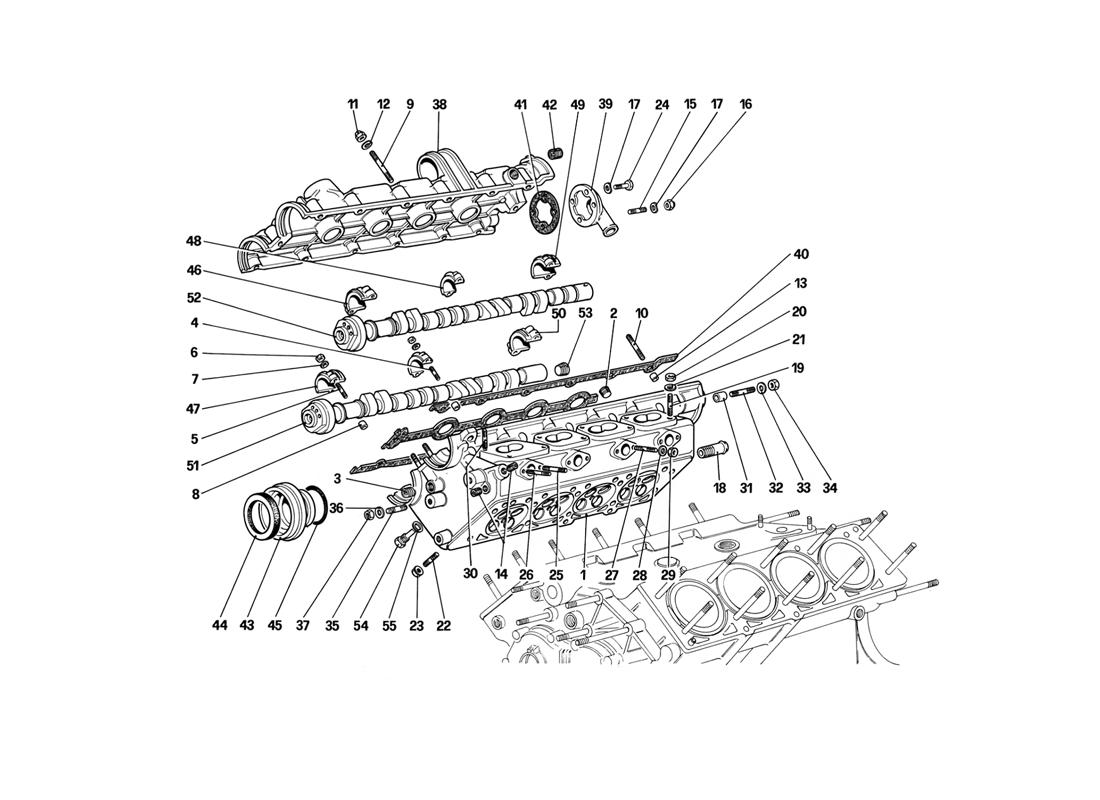

Ferrari / Mondial 3.2 / 005 - Cylinder Head - Right

Go to order form
Diagram # Name Part # Fitted
Quantity
Quantity Select
1 Right cylinder head, complete(For US and CH) 127488 1
1 Right cylinder head(With complete cylinder head no. 131877) 127489 1
1 Right cylinder head(For US and CH) 127489 1
1 Right cylinder head, complete(Mot for US and. CH) 131877 1
2 Plug 127635 5
3 Heli-coil 13526070 1
4 Stud for intermediate caps 102735 12
5 Stud for outer caps 102754 8
6 Nut 15896211 20
7 Washer 11197773 20
8 Dowel 102725 20
9 Stud 13541621 12
10 Stud 13541721 2
11 Selflocking nut 100044 14
12 Washer 11197771 14
13 Dowel 102725 2
14 Plug 14326150 3
15 Stud 11500521 2
16 Nut 12575411 2
17 Washer 12601271 4
18 Nipple for heater 106227 1
19 Stud 13543321 8
20 Nut 16100811 10
21 Washer 11198071 10
22 Stud securing exhaust manifold 12354521 8
23 Nut 124525 8
24 Screw 10902221 2
25 Short stud 13541621 3
26 Long stud 13541721 4
27 Stud for water manifold (cylinder no. 3) 13541821 1
28 Washer 11197773 8
29 Nut 15896211 8
30 Stud for fixing suction manifold (front part) 13543521 2
31 Dowel 102725 2
32 Stud for fixing calotte support 11500521 2
33 Washer 11197773 2
34 Nut 15896211 2
35 Stud 13543321 3
36 Washer 12601371 3
37 Nut 16104411 3
38 Right head coverWith complete cover 117220 1
38 Head cover, completeWith complete cylinder 111564 1
39 End cover with blow-by inlet 103808 1
40 GasketFor C8 132916 1
40 GasketNot for C8 117263 1
41 GasketFor C8 132919 1
41 GasketNot for C8 119067 1
42 Heli - coil 13525470 3
43 Front cover 117257 2
44 Sealing ring 105389 2
45 Sealing ring 117275 2
46 Front cap inlet sideWith complete cylinder head 117039 1
47 Front cap exhaust sideWith complete cylinder head 117040 1
48 Intermediate capWith complete cylinder head 126811 6
49 Rear cap inlet sideWith complete cylinder head 126813 1
50 Rear cap exhaust sideWith complete cylinder head 126812 1
51 Right exhaust camshaft, complete 126556 1
52 Right intake camshaft complete 126186 1
53 Plug 10269750 1
54 PlugNot for US and CH 127545 4
55 GasketNot for US and CH 10257060 4
