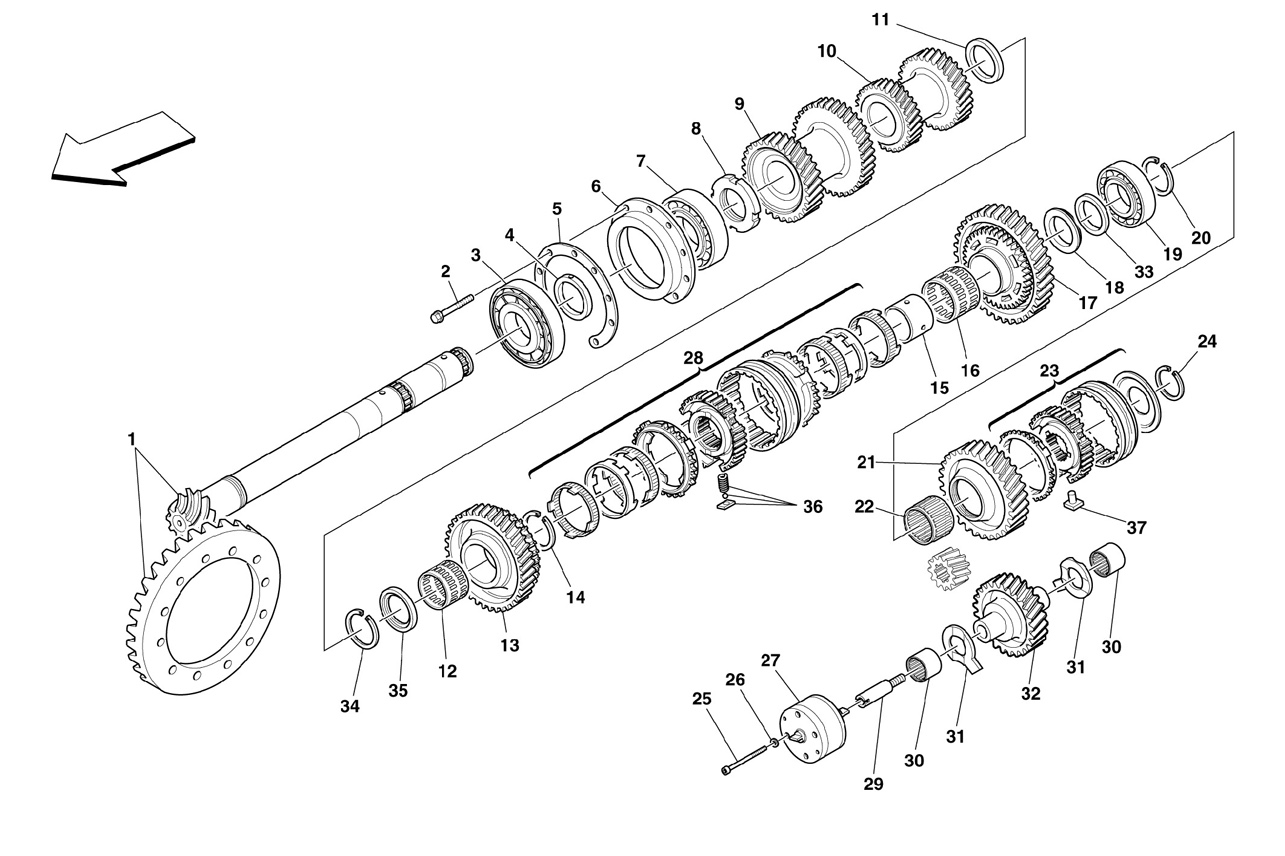

Ferrari / F430 (2005-2008) / 031 - Lay Shaft Gears
Go to order form
| Diagram # | Name | Part # | Price | Fitted Quantity |
Quantity Available |
Quantity | Select |
|---|---|---|---|---|---|---|---|
| 1 | COMPETE BEVEL SET -Not for Taiwan- | 197811 | POA | 1 | 0 |
|
|
| 1 | COMPETE BEVEL SET -Valid for Taiwan- | 218502 | POA | 1 | 0 |
|
|
| 2 | SCREW | 16287730 | POA | 7 | 0 |
|
|
| 3 | ROLLER BEARING | 185022 | POA | 1 | 0 |
|
|
| 4 | REGISTER RING -Thickness mm. 7,10- | 185045 | POA | 1 | 0 |
|
|
| 4 | REGISTER RING -Thickness mm. 6,4- -Possible fitting- | 185027 | POA | 1 | 0 |
|
|
| 4 | REGISTER RING -Thickness mm. 6,0- -Possible fitting- | 185028 | POA | 1 | 0 |
|
|
| 5 | REGISTER RING -Thickness mm. 2,8- | 185042 | POA | 1 | 0 |
|
|
| 5 | REGISTER RING -Thickness mm. 2,5- -Possible fitting- | 185043 | POA | 1 | 0 |
|
|
| 5 | REGISTER RING -Thickness mm. 2,2- -Possible fitting- | 185044 | POA | 1 | 0 |
|
|
| 6 | BEARING SUPPORT | 185020 | POA | 1 | 0 |
|
|
| 7 | ROLLER BEARING | 185021 | POA | 1 | 0 |
|
|
| 8 | RING NUT | 196667 | POA | 1 | 0 |
|
|
| 9 | 3rd AND 4th DRIVEN GEAR | 185018 | POA | 1 | 0 |
|
|
| 10 | 5th AND 6th DRIVEN GEAR | 198620 | POA | 1 | 0 |
|
|
| 11 | SPACER | 188497 | POA | 1 | 0 |
|
|
| 12 | ROLLER CAGE | 184014 | POA | 1 | 0 |
|
|
| 13 | PINION FOR 2nd GEAR | 183946 | POA | 1 | 0 |
|
|
| 14 | FLEXIBLE RING -Thickness mm. 2,10- | 183976 | POA | 1 | 0 |
|
|
| 14 | FLEXIBLE RING -Thickness mm. 1,85- -Possible fitting- | 185036 | POA | 1 | 0 |
|
|
| 14 | FLEXIBLE RING -Thickness mm. 1,60- -Possible fitting- | 185037 | POA | 1 | 0 |
|
|
| 15 | BUSHING | 183971 | POA | 1 | 0 |
|
|
| 16 | ROLLER CAGE | 184016 | POA | 1 | 0 |
|
|
| 17 | PINION FOR 1st GEAR | 183945 | POA | 1 | 0 |
|
|
| 18 | RING -Thickness mm. 5,10- | 183972 | POA | 1 | 0 |
|
|
| 19 | ROLLER BEARING | 184020 | POA | 1 | 0 |
|
|
| 20 | FLEXIBLE RING | 184042 | POA | 1 | 0 |
|
|
| 21 | REVERSE GEAR | 199752 | POA | 1 | 0 |
|
|
| 22 | ROLLER CAGE | 184018 | POA | 1 | 0 |
|
|
| 23 | REVERSE GEAR COMPLETE SYNCHRONIZER | 193439 | POA | 1 | 0 |
|
|
| 24 | FLEXIBLE RING | 184041 | POA | 1 | 0 |
|
|
| 25 | SCREW | 14302424 | POA | 4 | 0 |
|
|
| 26 | SHER | 10571379 | POA | 4 | 0 |
|
|
| 27 | BEARBOX OIL PUMP -Not as spare part now- -Replaced by 216271 - | 185049 | POA | 1 | 0 |
|
|
| 27 | BEARBOX OIL PUMP | 216271 | POA | 1 | 0 |
|
|
| 28 | 1st AND 2nd GEAR COMPLETE SYNCHRONIZER | 185164 | POA | 1 | 0 |
|
|
| 29 | PIN | 185050 | POA | 1 | 0 |
|
|
| 30 | ROLLER CASING | 184017 | POA | 2 | 0 |
|
|
| 31 | RING | 183975 | POA | 2 | 0 |
|
|
| 32 | IDLE GEAR FOR REVERSE | 199737 | POA | 1 | 0 |
|
|
| 33 | SPACER | 200924 | POA | 1 | 0 |
|
|
| 34 | FLEXIBLE RING | 183976 | POA | 1 | 0 |
|
|
| 35 | RING | 203800 | POA | 1 | 0 |
|
|
| 35 | RING -As an alternative- | 203801 | POA | 1 | 0 |
|
|
| 36 | PAD FOR SYNCHRONIZER/BALL/SPRING REPLACEMENT KIT | 188320 | POA | 1 | 0 |
|
|
| 37 | PADS/SYNCHRO REVERSE GEAR KIT | 193440 | POA | 1 | 0 |
|
