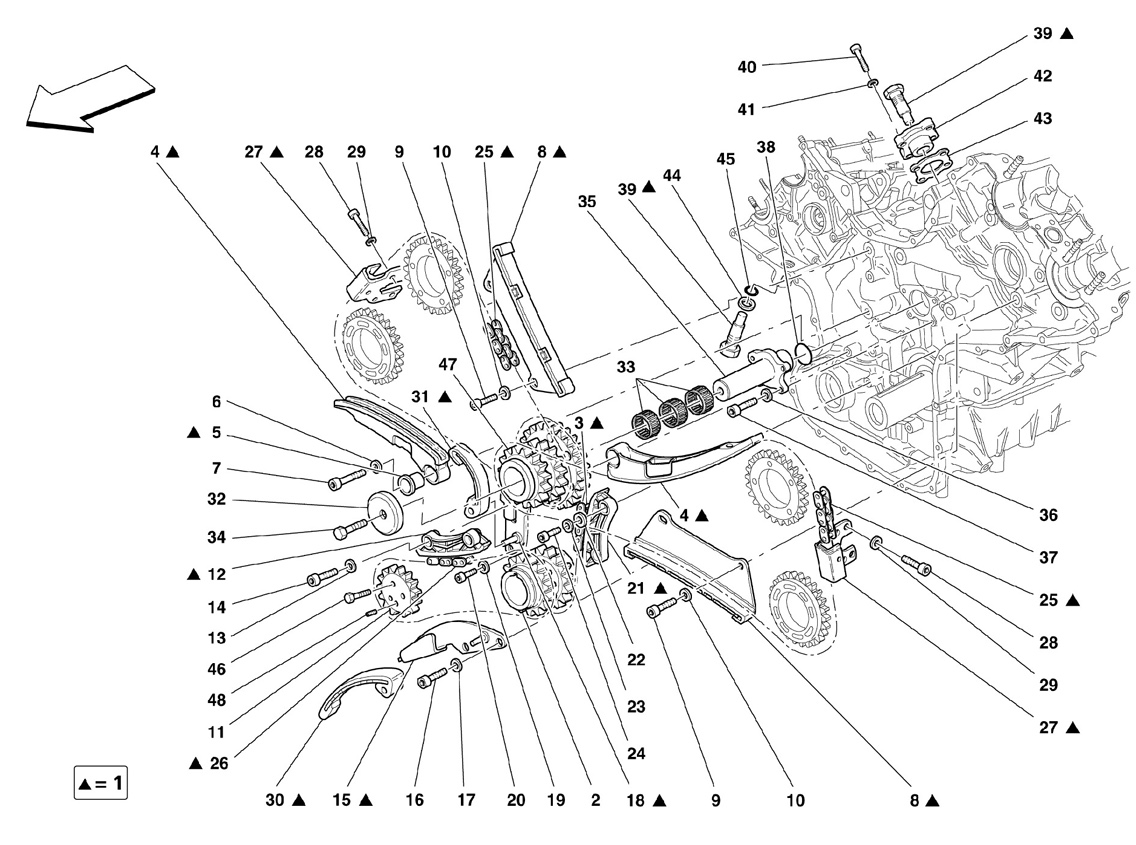

Ferrari / F430 (2005-2008) / 006 - Timing - Controls

Go to order form
Diagram # Name Part # Fitted
Quantity
Quantity Select
1 TIMING CONTROL ASSEMBLY 197879 1
2 CRANKSHAFT TOOTHED WHEEL 186854 1
3 TRANSMISSION CHAIN 175286 1
4 MOBILE GUIDE SHOE 186184 2
5 BUSHING 175303 2
6 SHER 10569373 2
7 SCREW 14306424 2
8 FIXED TENSION 186185 2
9 SCREW 14306224 4
10 SHER 11193874 4
11 TOOTHED WHEEL CONTROL PUMP 189564 1
12 FIXED TENSION 186186 1
13 SHER 11197774 2
14 SCREW 14305424 2
15 GUIDE SHOE SUPPORT 185724 1
16 SCREW 14305724 2
17 SHER 11197774 2
18 GUIDE SHOE SUPPORT 186159 1
19 SHER 11197774 2
20 SCREW 14305724 2
21 FIXED TENSION 186181 1
22 SHER 12647624 2
23 SHER 11197774 2
24 SCREW 14432224 2
25 TIMING CONTROL CHAIN 193616 2
26 CHAIN 175314 1
27 UPPER FIXED TENSION 189569 2
28 SCREW 14305934 8
29 SHER 11197774 8
30 CHAIN TIGHTENER GUIDE SHOE 185725 1
31 CHAIN TIGHTENER GUIDE SHOE 196683 1
32 SHOULDER 194262 1
33 ROLLER CAGE 175282 3
34 SCREW 16043124 1
35 SUPPORT -Valid till engine Nr. 116245- 194261 1
35 SUPPORT -Valid from engine Nr. 116246- 227197 1
36 SHER 11181574 4
37 SCREW 14304224 4
38 O.R. GASKET -Valid till engine Nr. 116245- 104212 1
39 HYDRAULIC TIGHTENER 197880 2
40 SCREW 14432224 4
41 SHER 11197774 4
42 BUSH FOR TIGHTENER 190060 1
43 GASKET 185854 1
44 SPACER 190171 1
45 O.R. GASKET 192069 1
46 SCREW 189563 3
47 TRANSMISSION TOOTHED WHEEL 193565 1
48 DOWEL 189779 1
