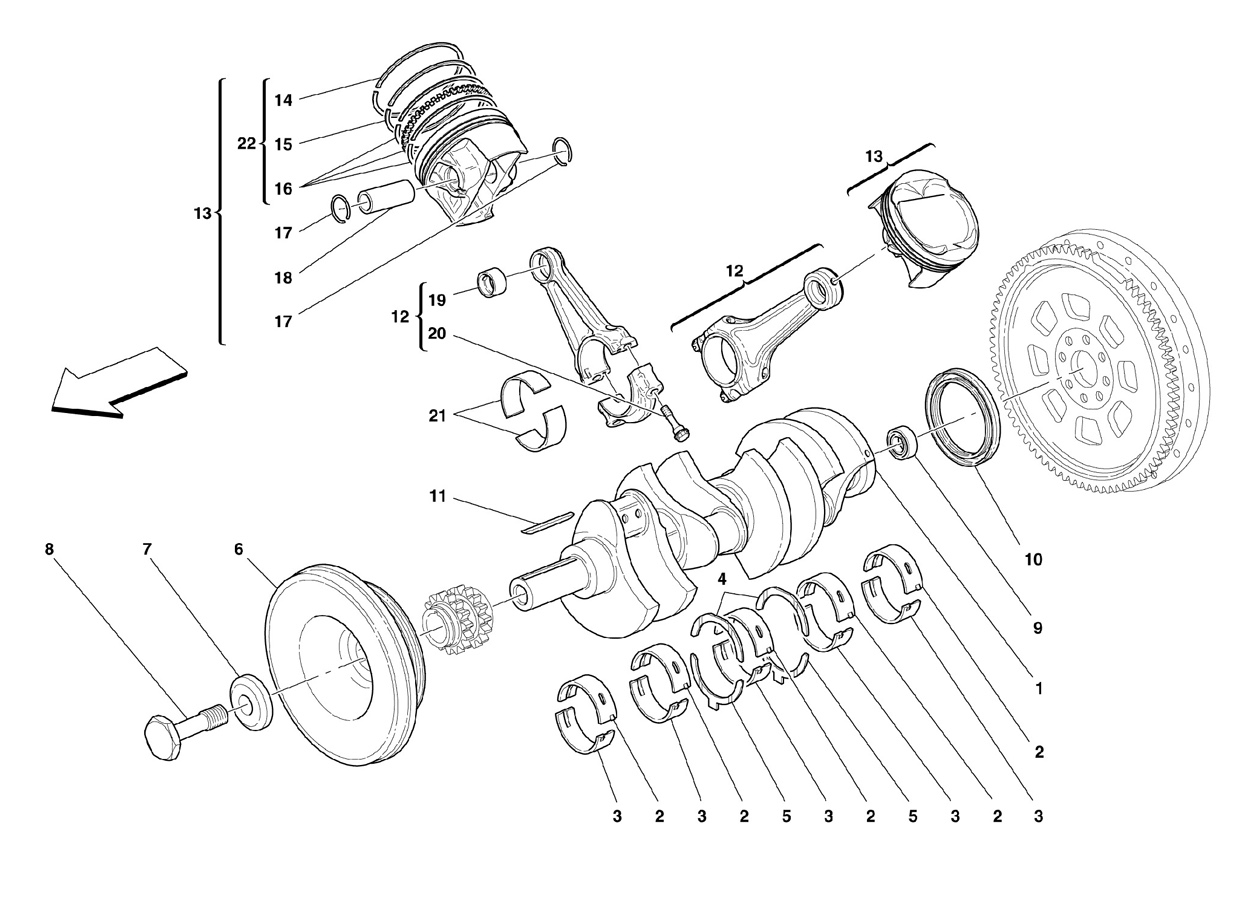

Ferrari / F430 (2005-2008) / 002 - Driving Shaft - Connecting Rods and Pistons
Go to order form
| Diagram # | Name | Part # | Price | Fitted Quantity |
Quantity Available |
Quantity | Select |
|---|---|---|---|---|---|---|---|
| 1 | CRANKSHAFT | 196460 | POA | 1 | 0 |
|
|
| 2 | UPPER HALF BEARING -Blue- -Standard- | 195307 | POA | 5 | 0 |
|
|
| 2 | UPPER HALF BEARING -Green- | 198910 | POA | 5 | 0 |
|
|
| 2 | UPPER HALF BEARING -Yellow- | 195308 | POA | 5 | 0 |
|
|
| 3 | ER HALF BEARING -Blue- -Standard- | 200194 | POA | 5 | 0 |
|
|
| 3 | ER HALF BEARING -Green- | 200196 | POA | 5 | 0 |
|
|
| 3 | ER HALF BEARING -Yellow- | 200195 | POA | 5 | 0 |
|
|
| 4 | SHIM -Valid from Ass. Nr. 72742- | 222874 | POA | 2 | 0 |
|
|
| 4 | UPPER SHIM -Valid till Ass. Nr. 72741- | 196648 | POA | 2 | 0 |
|
|
| 5 | ER SHIM -Valid till Ass. Nr. 72741- | 196649 | POA | 2 | 0 |
|
|
| 5 | SHIM -Valid from Ass. Nr. 72742- | 222874 | POA | 2 | 0 |
|
|
| 6 | TORSION DAMPER | 212322 | POA | 1 | 0 |
|
|
| 7 | SHER | 192106 | POA | 1 | 0 |
|
|
| 8 | SCREW FOR DAMPER FIXING | 196216 | POA | 1 | 0 |
|
|
| 9 | BEARING | 103877 | POA | 1 | 0 |
|
|
| 10 | SEAL RING | 200323 | POA | 1 | 0 |
|
|
| 10 | SEAL RING -As an alternative- | 200323 | POA | 1 | 0 |
|
|
| 11 | KEY | 186201 | POA | 1 | 0 |
|
|
| 12 | COMPLETE CONNECTING ROD -Valid till stock exhaustion- | 215529 | POA | 8 | 0 |
|
|
| 12 | COMPLETE CONNECTING ROD -Valid after stock exhaustion of 208080- | 215529 | POA | 8 | 0 |
|
|
| 13 | RH PISTON WITH RINGS | 210360 | POA | 4 | 0 |
|
|
| 13 | LH PISTON WITH RINGS | 210361 | POA | 4 | 0 |
|
|
| 14 | SEAL RING -1st groove- | 236497 | POA | 8 | 0 |
|
|
| 15 | SEAL RING -2nd groove- | 226260 | POA | 8 | 0 |
|
|
| 16 | OIL SCRAPING RING -3nd groove- | 175614 | POA | 8 | 0 |
|
|
| 17 | STOP RING | 178890 | POA | 16 | 0 |
|
|
| 18 | PIN | 175367 | POA | 8 | 0 |
|
|
| 19 | BUSHING | 208094 | POA | 8 | 0 |
|
|
| 20 | CONNECTING ROD TIGHTENING SCREW -Not as spare part- -Replaced by 215530- | 208095 | POA | 16 | 0 |
|
|
| 20 | CONNECTING ROD TIGHTENING SCREW -As an alternative- -Not as spare part- -Replaced by 215530- | 215836 | POA | 16 | 0 |
|
|
| 20 | CONNECTING ROD TIGHTENING SCREW -As an alternative- -Not as spare part- -Replaced by 215530- | 215837 | POA | 16 | 0 |
|
|
| 20 | CONNECTING ROD TIGHTENING SCREW | 215530 | POA | 16 | 0 |
|
|
| 21 | CONNECTING ROD HALF BEARING -Red- -Standard | 204290 | POA | 16 | 0 |
|
|
| 21 | CONNECTING ROD HALF BEARING -Blue- | 204291 | POA | 16 | 0 |
|
|
| 21 | CONNECTING ROD HALF BEARING -Black- | 204292 | POA | 16 | 0 |
|
|
| 22 | PISTONS RINGS SET | 198025 | POA | 12 | 0 |
|
