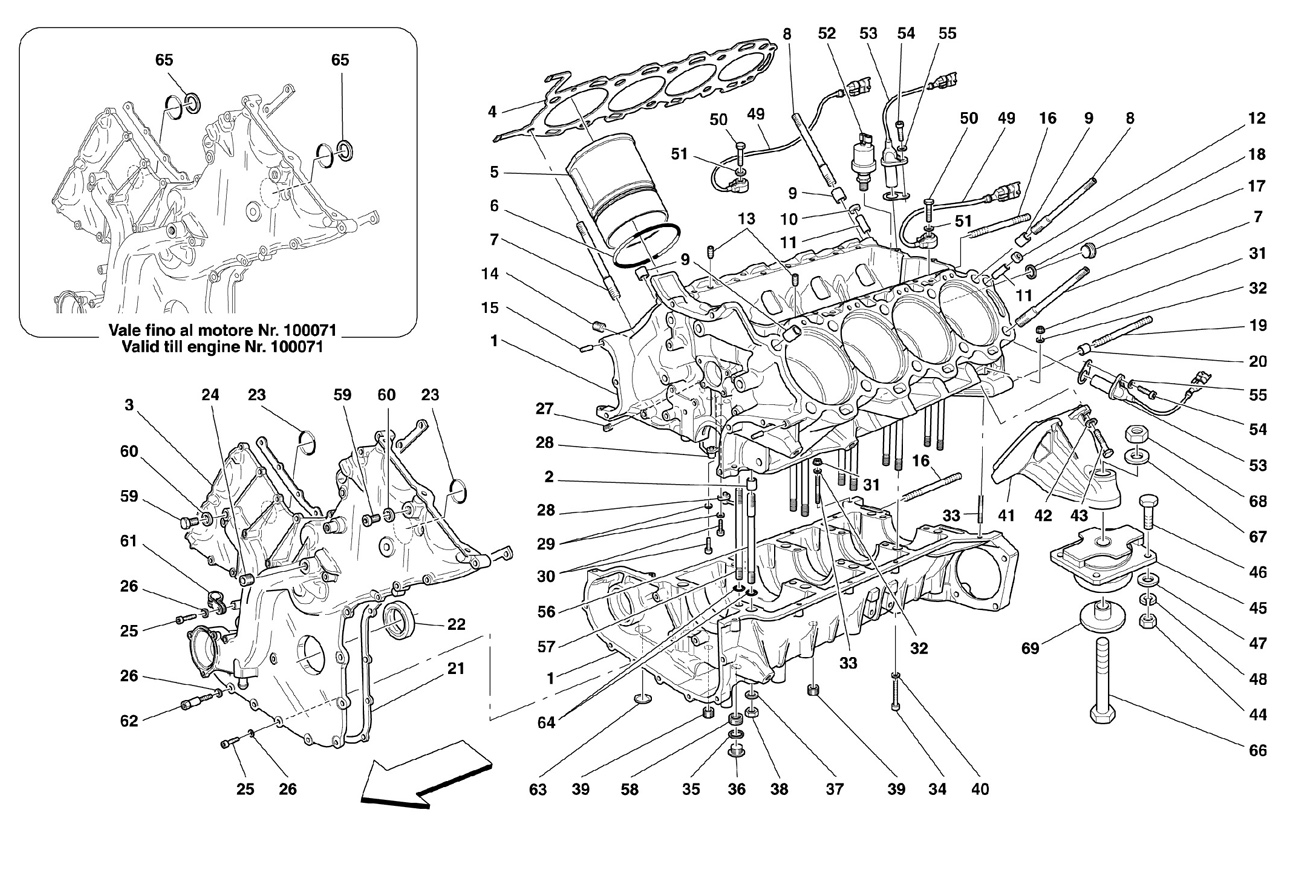

Ferrari / F430 (2005-2008) / 001 - Crankcase

Go to order form
Diagram # Name Part # Price Fitted
Quantity
Quantity
Available
Quantity Select
1 COMPLETE CRANKCASE -Valid from Ass. Nr. 72742- 236095 POA 1 0
1 COMPLETE CRANKCASE -Valid from engine Nr. 116246- -Valid till Ass. Nr. 72741 - 233052 POA 1 0
1 COMPLETE CRANKCASE -Valid from engine Nr. 89099- -Valid till engine Nr. 116245- 215926 POA 1 0
1 COMPLETE CRANKCASE -Valid till engine Nr. 89098- 202077 POA 1 0
2 CENTERING DOWEL 176421 POA 10 0
3 FRONT COVER -Valid from engine No. 100072 to engine No. 117478- 229253 POA 1 0
3 FRONT COVER -Valid till engine No. 100071- -Not as spare part- -Replaced by 221367- 229253 POA 1 0
3 FRONT COVER -Valid from engine No. 117479- 229253 POA 1 0
4 L.H. HEAD GASKET 184967 POA 1 0
4 R.H. HEAD GASKET 184966 POA 1 0
5 CYLINDER LINER 190770 POA 8 0
6 GASKET 186251 POA 24 0
7 STUD 217967 POA 10 0
7 STUD -Not as spare part- -Replaced by 217967- 217967 POA 10 0
8 STUD 217968 POA 10 0
8 STUD -Not as spare part- -Replaced by 217968- 217968 POA 10 0
9 CENTERING DOWEL 185360 POA 4 0
10 DOWEL 201850 POA 1 0
11 NONRETURN VALVE 200458 POA 2 0
12 DOWEL 201849 POA 1 0
13 CENTERING DOWEL 177727 POA 2 0
14 THREADED PLUG 164400 POA 1 0
15 CENTERING DOWEL 175611 POA 2 0
16 STUD 13546734 POA 4 0
17 THREADED PLUG 10304511 POA 1 0
17 THREADED PLUG -Valid after stock exhaustion of 193885- -Not as spare part- -Replaced by 10304511- 10275011 POA 1 0
17 THREADED PLUG -Valid till stock exhaustion- 193885 POA 1 0
18 GASKET 10263460 POA 1 0
19 STUD 13546934 POA 3 0
20 CENTERING DOWEL 100052 POA 2 0
21 FRONT COVER GASKET 193656 POA 1 0
22 COVER GASKET 188717 POA 1 0
23 O.R. GASKET 183010 POA 2 0
24 THREADED PLUG 14324940 POA 1 0
25 SCREW -M 6X70- 14303924 POA 3 0
25 SCREW -M 6X50- 156828 POA 3 0
25 SCREW -M 6X22- -Not as spare part- -Replaced by 231619- 14432224 POA 1 0
25 SCREW -M 6X35- 14305624 POA 1 0
25 SCREW -M 6X45- 14305924 POA 2 0
25 SCREW -M 6X30- 14305524 POA 3 0
25 SCREW -M 6X22- 231619 POA 1 0
25 SCREW-M 6X18- 14433124 POA 15 0
26 SHER 11197774 POA 28 0
27 THREADED INSERT 13525770 POA 5 0
28 PISTONS COOLING NOZZLE 175657 POA 8 0
29 SHER 11181474 POA 8 0
30 SCREW 14302921 POA 8 0
31 NUT 132877 POA 2 0
32 SHER 12604274 POA 2 0
33 STUD 13541624 POA 2 0
34 SCREW 14305324 POA 1 0
34 SCREW 231620 POA 10 0
34 SCREW -Not as spare part- -Replaced by 231620- 14305424 POA 10 0
35 GASKET 10261860 POA 1 0
36 THREADED PLUG 104280 POA 1 0
37 SHER 178348 POA 20 0
38 NUT 133988 POA 20 0
39 THREADED PLUG 14325140 POA 4 0
40 SHER -Not as spare part- 11197774 POA 11 0
41 RH ENGINE FIXING SUPPORT 207220 POA 1 0
41 LH ENGINE FIXING SUPPORT 207221 POA 1 0
42 SHER 11190574 POA 8 0
43 SCREW -Valid from car Ass. Nr. 60389- 11306934 POA 8 0
43 SCREW -Valid till car Ass. Nr. 60388- 15970734 POA 8 0
44 NUT 133988 POA 8 0
45 ENGINE PAD -Valid after stock exhaustion of 209069- 216357 POA 2 0
45 ENGINE PAD -Valid till stock exhaustion- 216357 POA 2 0
46 SCREW 15970634 POA 8 0
47 SHER 12646824 POA 8 0
48 SHER 127497 POA 8 0
49 SENSOR FOR FIRING -Timing side- -Not as spare part now- -Replaced by 219872 and 219873- 187740 POA 2 0
49 L.H. SENSOR FOR FIRING -Flywheel side- 219871 POA 1 0
49 R.H. SENSOR FOR FIRING -Flywheel side- 219868 POA 1 0
49 SENSOR FOR FIRING -Flywheel side- -Not as spare part now- -Replaced by 219872 and 219873- 187739 POA 2 0
49 L.H. SENSOR FOR FIRING -Timing side- 219870 POA 1 0
49 R.H. SENSOR FOR FIRING -Timing side- 219869 POA 1 0
50 SCREW 16043834 POA 4 0
51 SHER 11198074 POA 4 0
52 OIL PRESSURE TRANSMITTER 201207 POA 1 0
53 L.H. SIDE ANGOLAR SPEED SENSOR 219873 POA 1 0
53 R.H. SIDE ANGOLAR SPEED SENSOR 219872 POA 1 0
53 ANGOLAR SPEED SENSOR -Not as spare part now- -Replaced by 219872 and 219873- 182194 POA 2 0
54 SCREW 14305724 POA 2 0
55 SHER 11197774 POA 2 0
56 STUD 217794 POA 10 0
56 STUD -Not as spare part- -Replaced by 217794- 217794 POA 10 0
57 STUD 217796 POA 10 0
57 STUD -Not as spare part- -Replaced by 217796- 217796 POA 10 0
57 STUD -Not as spare part now- -Replaced by 215652- 194757 POA 10 0
58 THREADED INSERT -Not as spare part- -Replaced by 223577- 112254 POA 1 0
58 THREADED INSERT 223577 POA 1 0
59 BLEEDER PLUG 187718 POA 2 0
60 GASKET 10284460 POA 2 0
61 BRACKET WITH SHEATH 10441590 POA 1 0
62 STUD 206672 POA 2 0
63 PLUG 10158801 POA 1 0
64 O.R. GASKET 134704 POA 20 0
65 REDUCTION -Valid till engine No. 100071- 191620 POA 2 0
66 SCREW 11369634 POA 2 0
67 SHER 12601774 POA 2 0
68 NUT 176573 POA 2 0
69 RETAINING WASHER 182141 POA 2 0
