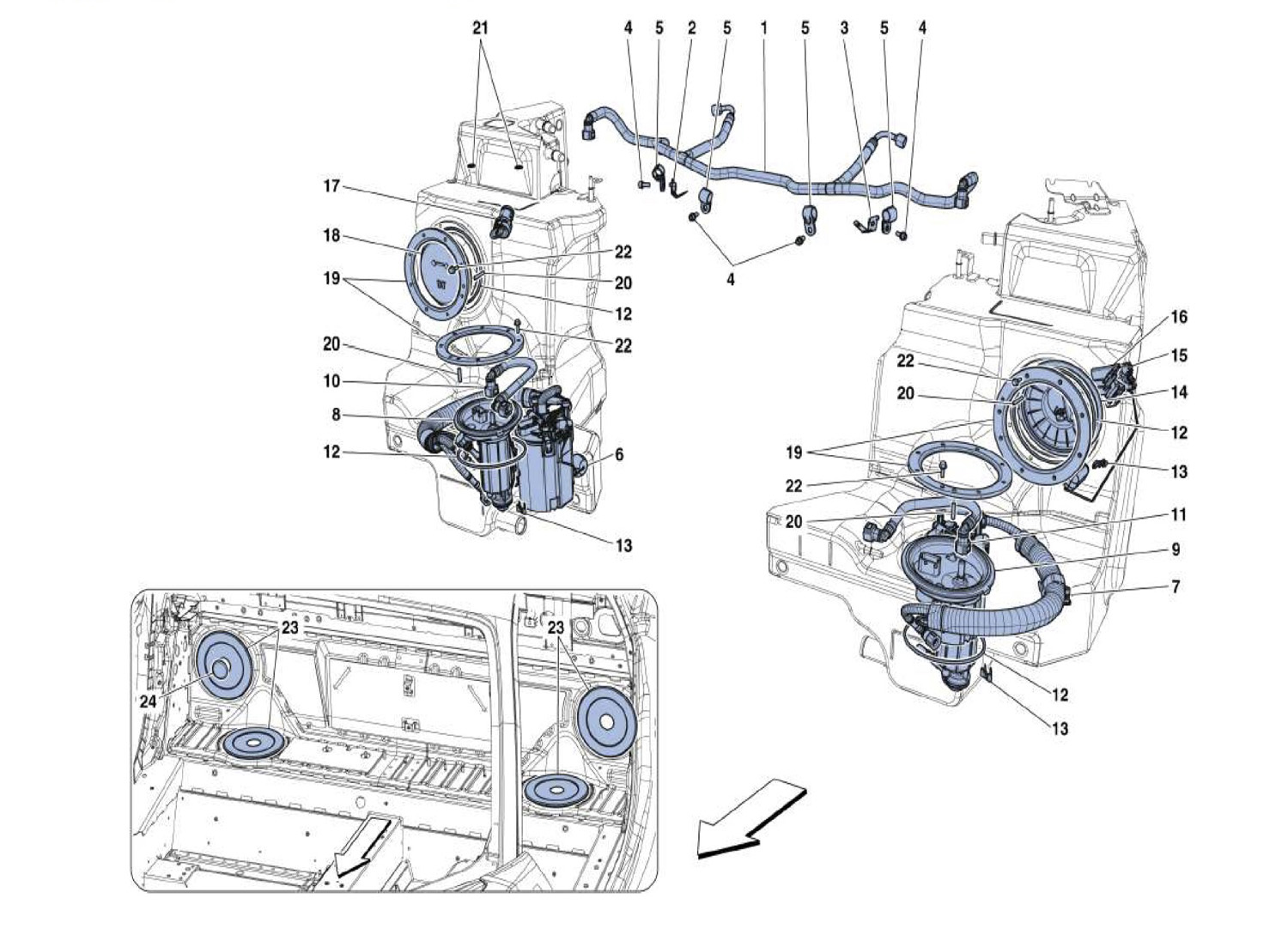

Ferrari / 488 GTB / 009 - Fuel System Pump and Pipes
Go to order form
| Diagram # | Name | Part # | Price | Fitted Quantity |
Quantity Available |
Quantity | Select |
|---|---|---|---|---|---|---|---|
| 1 | FUEL DELIVERY PIPE | 316734 | POA | 1 | 0 |
|
|
| 2 | COMPL. RH FUEL PIPE MOUNTING BRACKET | 316737 | POA | 1 | 0 |
|
|
| 3 | COMPL. LH FUEL PIPE MOUNTING BRACKET | 316735 | POA | 1 | 0 |
|
|
| 4 | SCREW -M6 X 16- | 248334 | POA | 4 | 0 |
|
|
| 5 | CLIP | 244221 | POA | 4 | 0 |
|
|
| 6 | COMPL. FUEL PUMP | 305832 | POA | 1 | 0 |
|
|
| 7 | COMPL. FUEL PUMP | 272086 | POA | 1 | 0 |
|
|
| 8 | FUEL PUMP FILTER WITH DR5 | 282785 | POA | 1 | 0 |
|
|
| 9 | FUEL PUMP FILTER | 282784 | POA | 1 | 0 |
|
|
| 10 | RH FUEL DELIVERY PIPE | 320533 | POA | 1 | 0 |
|
|
| 11 | LH FUEL DELIVERY PIPE | 320534 | POA | 1 | 0 |
|
|
| 12 | O-RING | 239412 | POA | 4 | 0 |
|
|
| 13 | CONNECTOR | 238688 | POA | 3 | 0 |
|
|
| 14 | FUEL LEVEL SENSOR MOUNT | 311381 | POA | 1 | 0 |
|
|
| 15 | FUEL LEVEL SENSOR | 305808 | POA | 1 | 0 |
|
|
| 16 | CORNER ADAPTER | 254311 | POA | 1 | 0 |
|
|
| 17 | ANTI SPIT-BACK VALVE | 237407 | POA | 1 | 0 |
|
|
| 18 | RH HATCH COVER | 314783 | POA | 1 | 0 |
|
|
| 19 | FASTENER RING | 275998 | POA | 4 | 0 |
|
|
| 20 | STUD BOLT | 11001124 | POA | 4 | 0 |
|
|
| 21 | QUICK CLIP | 237581 | POA | 2 | 0 |
|
|
| 22 | SCREW -M5 X 16- | 16285124 | POA | 32 | 0 |
|
|
| 23 | INSPECTION CAP | 250481 | POA | 4 | 0 |
|
|
| 24 | CAP | 14507187 | POA | 1 | 0 |
|
