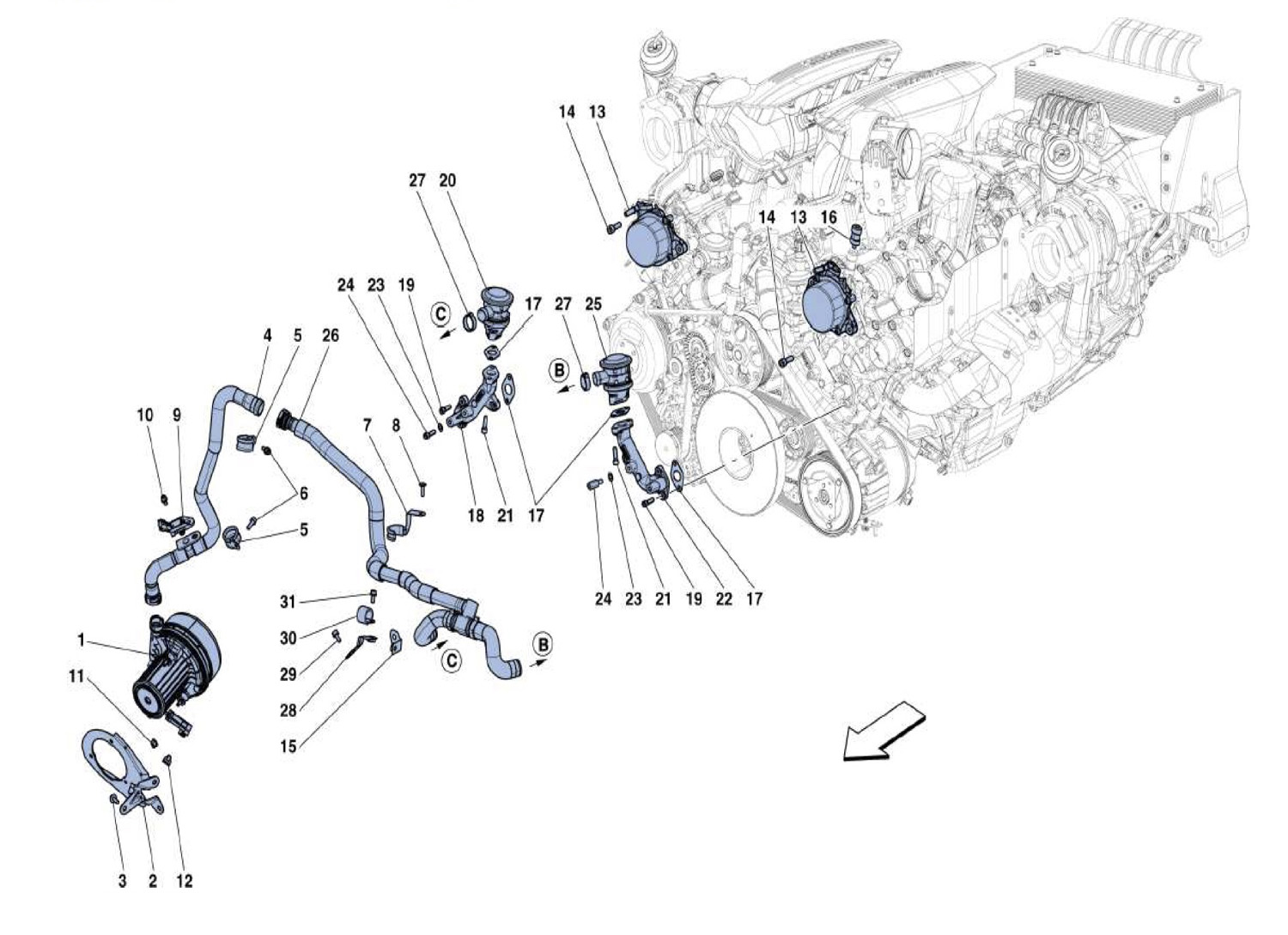

Ferrari / 488 GTB / 008 - Secondary AIR System
Go to order form
| Diagram # | Name | Part # | Price | Fitted Quantity |
Quantity Available |
Quantity | Select |
|---|---|---|---|---|---|---|---|
| 1 | SECONDARY AIR SYSTEM PUMP | 247795 | POA | 1 | 0 |
|
|
| 2 | BRACKET -Not for USA | 320742 | POA | 1 | 0 |
|
|
| 2 | BRACKET -Not for USA | 325294 | POA | 1 | 0 |
|
|
| 2 | BRACKET -Applicable for USA | 325294 | POA | 1 | 0 |
|
|
| 3 | SCREW -M6 X 18- | 11625824 | POA | 4 | 0 |
|
|
| 4 | PUMP SIDE SECONDARY AIR SYSTEM PIPE | 313300 | POA | 1 | 0 |
|
|
| 5 | BRACKET WITH SHEATH | 10442090 | POA | 2 | 0 |
|
|
| 6 | SCREW -M6 X 18- | 231617 | POA | 2 | 0 |
|
|
| 7 | BRACKET | 319490 | POA | 1 | 0 |
|
|
| 8 | SCREW -M6 X 20- | 85629300 | POA | 1 | 0 |
|
|
| 9 | PRESSURE SENSOR | 282849 | POA | 1 | 0 |
|
|
| 10 | SCREW -M6 X 12- | 233600 | POA | 1 | 0 |
|
|
| 11 | NUT | 14040611 | POA | 1 | 0 |
|
|
| 12 | CLIP | 253769 | POA | 1 | 0 |
|
|
| 13 | PRESSURE REDUCER | 303259 | POA | 2 | 0 |
|
|
| 14 | SCREW -M8 X 25- | 231628 | POA | 4 | 0 |
|
|
| 15 | BRACKET | 315264 | POA | 1 | 0 |
|
|
| 16 | BUMPER | 319467 | POA | 1 | 0 |
|
|
| 17 | GASKET | 186781 | POA | 4 | 0 |
|
|
| 18 | RH MOUNTING | 314332 | POA | 1 | 0 |
|
|
| 19 | SCREW -M6 X 22- | 231619 | POA | 6 | 0 |
|
|
| 20 | SECONDARY AIR SYSTEM VALVE | 284235 | POA | 1 | 0 |
|
|
| 21 | SCREW -M6 X 30- | 231621 | POA | 4 | 0 |
|
|
| 22 | LH MOUNTING | 314333 | POA | 1 | 0 |
|
|
| 23 | GASKET | 10297760 | POA | 2 | 0 |
|
|
| 24 | SCREW | 14305124 | POA | 1 | 0 |
|
|
| 24 | STUD BOLT | 260007 | POA | 1 | 0 |
|
|
| 25 | SECONDARY AIR SYSTEM VALVE | 284235 | POA | 1 | 0 |
|
|
| 26 | ENGINE SIDE SECONDARY AIR SYSTEM PIPE | 316978 | POA | 1 | 0 |
|
|
| 27 | COLLAR | 13128970 | POA | 2 | 0 |
|
|
| 28 | BRACKET | 315360 | POA | 1 | 0 |
|
|
| 29 | SCREW -M6 X 14- | 231616 | POA | 1 | 0 |
|
|
| 30 | BRACKET WITH SHEATH | 10441790 | POA | 1 | 0 |
|
|
| 31 | SCREW -M6 X 14- | 231616 | POA | 1 | 0 |
|
